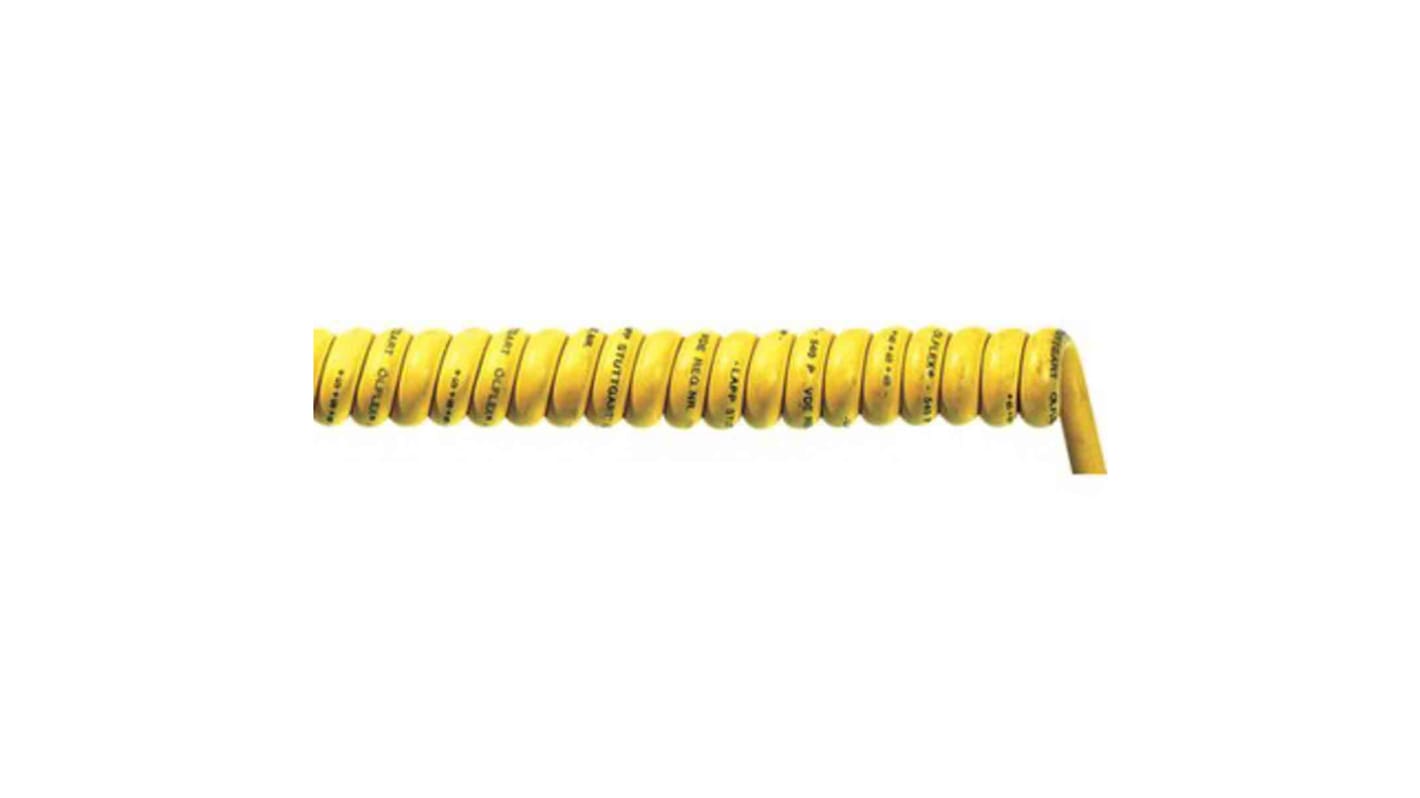

Lapp ÖLFLEX Coiled 0.75 mm² 2 Core Power Cable, Yellow Polyurethane PUR, 600mm

RS Stock No.:: 451-6802
Mfr. Part No.:: 73220108
Brand:: Lapp

Lapp ÖLFLEX Coiled 0.75 mm² 2 Core Power Cable, Yellow Polyurethane PUR, 600mm

Subtotal (1 unit)*

$93.45

(exc. GST)

$102.80

(inc. GST)

FREE delivery for orders over $60.00 ex GST

In Stock

32 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	$93.45

*price indicative

RS Stock No.:: 451-6802
Mfr. Part No.:: 73220108
Brand:: Lapp

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Cross Sectional Area	0.75 mm²
	Number of Cores	2
	Sheath Colour	Yellow
	Length	600mm
	Cable Type	Coiled
	Sheath Material	Polyurethane PUR
	Outer Diameter	23mm
	Voltage Rating	500 V
	Conductor Strand Type	Stranded
	Conductor Material	Tinned Copper
	Series	ÖLFLEX
	Maximum Operating Temperature	+50°C
	Coil Diameter	600mm
	Insulation Material	TPE
	American Wire Gauge	18 AWG
	Minimum Operating Temperature	-30°C
	Standards Met	CE
	Uncoiled Length	2000 mm
	Cable Shape	Coiled Multicore

	Select all
	Brand Lapp
	Cross Sectional Area 0.75 mm²
	Number of Cores 2
	Sheath Colour Yellow
	Length 600mm
	Cable Type Coiled
	Sheath Material Polyurethane PUR
	Outer Diameter 23mm
	Voltage Rating 500 V
	Conductor Strand Type Stranded
	Conductor Material Tinned Copper
	Series ÖLFLEX
	Maximum Operating Temperature +50°C
	Coil Diameter 600mm
	Insulation Material TPE
	American Wire Gauge 18 AWG
	Minimum Operating Temperature -30°C
	Standards Met CE
	Uncoiled Length 2000 mm
	Cable Shape Coiled Multicore

COO (Country of Origin):: DE

LAPP Power Cable, Tinned Copper Conductor, 18AWG - ÖLFLEX series - 73220108

Make your system more flexible with this power cable from LAPP. Its coiled design stretches from 60cm all the way to 2m, making it a go-to solution for portable tools and moving machinery. Extend this component as far as it'll go, and rest easy knowing it'll spring back into shape without kinking or tangling. Thanks to its 500V voltage rating, using this cable with heavy-duty equipment is a breeze.

Features & Benefits

• Insulating PUR sheath is mechanically tough to withstand the wear and tear of everyday use
• Standard 18AWG size for quick setup in your existing system
• Wide operating temperature range of -30°C to +50°C for use in challenging conditions

Applications

• Factory automation systems
• Medical equipment
• Manufacturing machinery

What's the benefit of tinned copper conductors?

Tinned copper is more resistant to corrosion, making this product particularly suitable for use in damp environments.
