RS PRO, 100 m 4 Core Power Cable, Black Polyvinyl Chloride 90 °C
- RS Stock No.:
- 196-4673
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 reel of 100 metres)*
$1,532.41
(exc. GST)
$1,685.65
(inc. GST)
Add 1 reel to get free delivery
In Stock
- 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 4 | $1,532.41 | $15.324 |
| 5 + | $1,261.17 | $12.612 |
*price indicative
- RS Stock No.:
- 196-4673
- Brand:
- RS PRO
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Power Cable | |
| Number of Cores | 4 | |
| Jacket Colour | Black | |
| Cable Length | 100m | |
| Outside Diameter | 13.5 mm | |
| Jacket Material | Polyvinyl Chloride | |
| Voltage | 600/1000 V | |
| Conductor Type | Stranded | |
| Minimum Operating Temperature | -15°C | |
| Standards/Approvals | BASEC | |
| Cable CSA | 2.5 mm² | |
| Conductor Material | Annealed Copper | |
| Fire Behaviour | Flame Retardant | |
| Maximum Operating Temperature | 90°C | |
| Core Strands | 7 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Power Cable | ||
Number of Cores 4 | ||
Jacket Colour Black | ||
Cable Length 100m | ||
Outside Diameter 13.5 mm | ||
Jacket Material Polyvinyl Chloride | ||
Voltage 600/1000 V | ||
Conductor Type Stranded | ||
Minimum Operating Temperature -15°C | ||
Standards/Approvals BASEC | ||
Cable CSA 2.5 mm² | ||
Conductor Material Annealed Copper | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature 90°C | ||
Core Strands 7 | ||
- COO (Country of Origin):
- GB

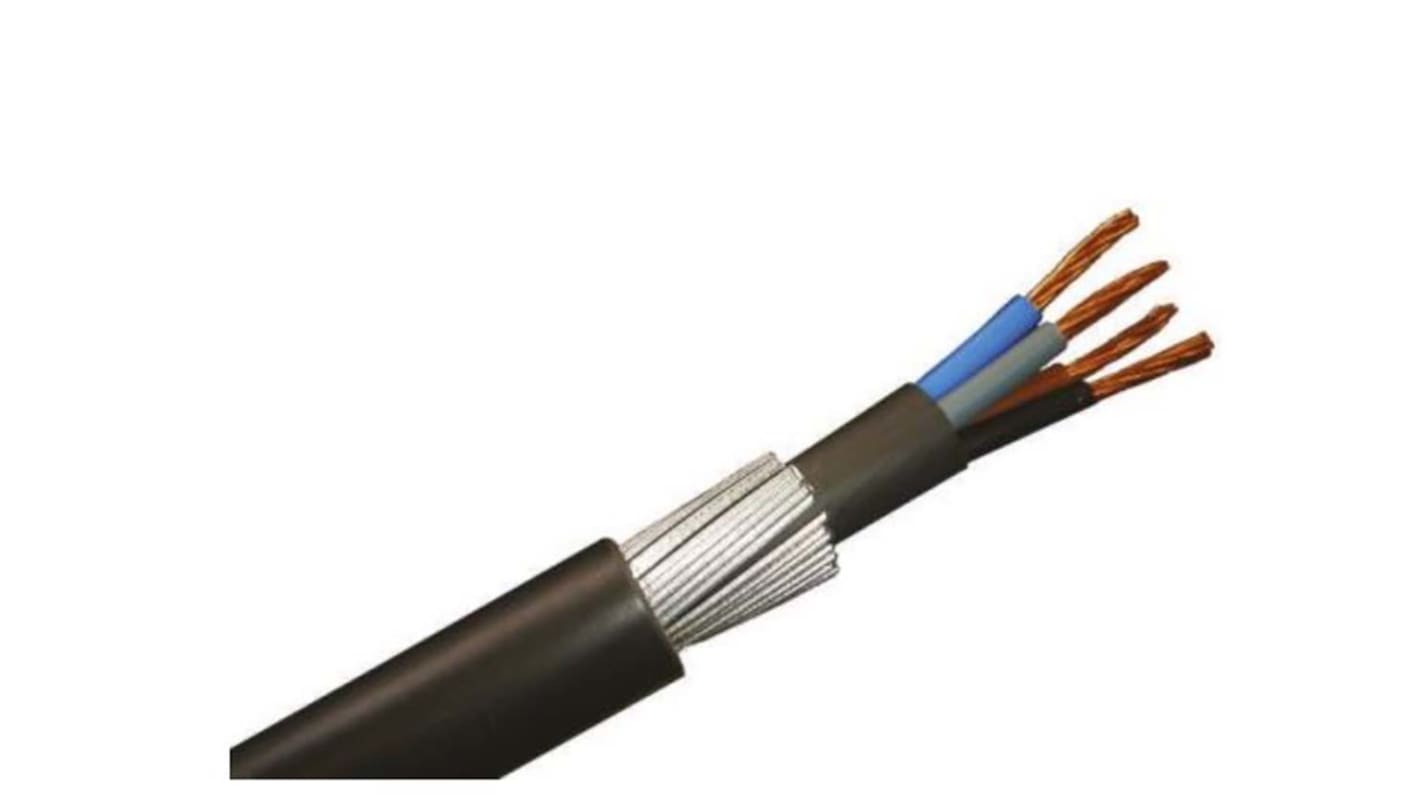

RS PRO 4-Core Screened Industrial BASEC Cable, Black, 2.5 mm², 100 m Reel
Looking for a strong, hardwearing cable that's suitable for use in industrial areas? This RS PRO screened industrial cable is a steel-wired, armoured cable that's predominantly used for industrial wiring and mains distribution. It's often used for underground and outdoor cabling, thanks to its numerous protective attributes.
To keep it secure, the cable is screened or shielded with steel wire. This helps reduce the chances of electromagnetic interference interrupting the electric current and allows your cabling to work to the maximum possible efficiency.
The steel wire of the screen has been galvanised with layers of zinc coating. This prevents rust and corrosion damage to the internal wire in case any moisture penetrates the polyvinyl choride (PVC) sheath, making this a durable product.
Features and Benefits
• Annealed copper conductor material
• Core strand size of 0.67 mm
• Cross-sectional area of 2.5 mm²
• Length of 100 m
• Operating temperature range of -15°C to +90°C
• Four cores
• Outer diameter of 13.5 mm
• Galvanised steel braid screen type
• Screened
• Black sheath colour
• Polyvinyl chloride (PVC) sheath material
• Shielded
• Meets British Approvals Service for Cables (BASEC) standards
• Voltage rating of 600 V, 1000 V
