Bourns PTV09 100 kΩ Rotary Potentiometer 1-Turns 1-Gang Panel Mount, PTV09A-4225F-B104
- RS Stock No.:
- 827-5022
- Distrelec Article No.:
- 301-15-469
- Mfr. Part No.:
- PTV09A-4225F-B104
- Brand:
- Bourns

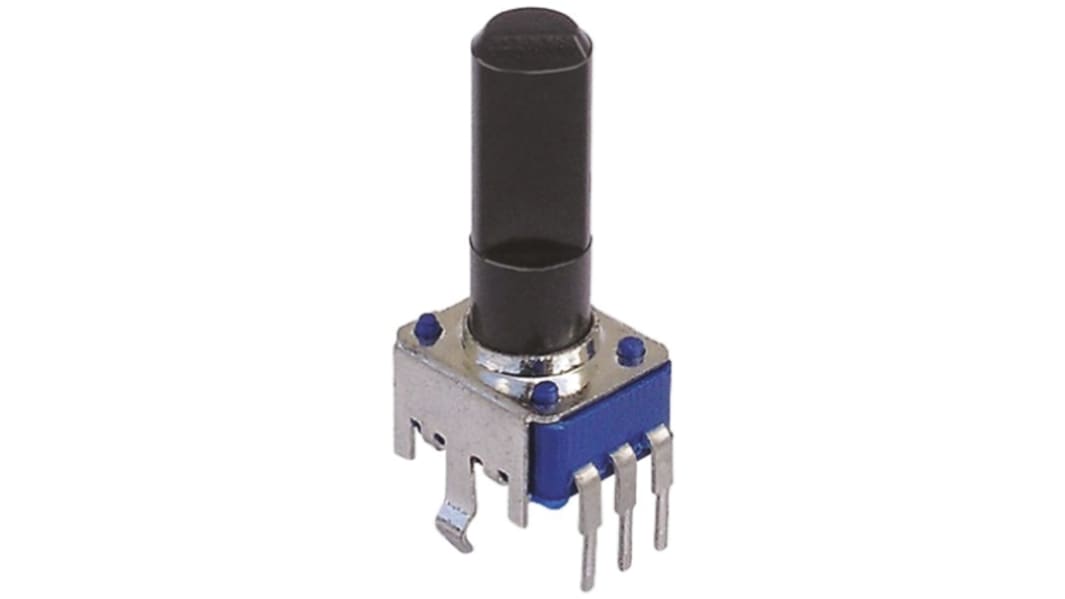

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
$1.63
(exc. GST)
$1.79
(inc. GST)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | $1.63 |
| 10 - 24 | $1.59 |
| 25 - 99 | $1.57 |
| 100 - 199 | $1.53 |
| 200 + | $1.51 |
*price indicative
- RS Stock No.:
- 827-5022
- Distrelec Article No.:
- 301-15-469
- Mfr. Part No.:
- PTV09A-4225F-B104
- Brand:
- Bourns
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Potentiometer Type | Rotary | |
| Product Type | Potentiometer | |
| Maximum Resistance | 100kΩ | |
| Number of Gangs | 1 | |
| Shaft Diameter | 6mm | |
| Packaging | Bulk | |
| Number of Turns | 1 | |
| Power Rating | 0.05W | |
| Electrical Taper | Linear | |
| Element Material | Carbon | |
| Mount Type | Panel Mount | |
| Termination Style | PC Pin | |
| Shaft Length | 25mm | |
| Pin Count | 3 | |
| Adjustment Type | Side | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | RoHS | |
| Depth | 11mm | |
| Length | 10mm | |
| Height | 12.5mm | |
| Series | PTV09 | |
| Mounting Hole Diameter | 9.1 mm | |
| Tolerance ± | 20% | |
| Actuator Type | Flatted Shaft | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Potentiometer Type Rotary | ||
Product Type Potentiometer | ||
Maximum Resistance 100kΩ | ||
Number of Gangs 1 | ||
Shaft Diameter 6mm | ||
Packaging Bulk | ||
Number of Turns 1 | ||
Power Rating 0.05W | ||
Electrical Taper Linear | ||
Element Material Carbon | ||
Mount Type Panel Mount | ||
Termination Style PC Pin | ||
Shaft Length 25mm | ||
Pin Count 3 | ||
Adjustment Type Side | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals RoHS | ||
Depth 11mm | ||
Length 10mm | ||
Height 12.5mm | ||
Series PTV09 | ||
Mounting Hole Diameter 9.1 mm | ||
Tolerance ± 20% | ||
Actuator Type Flatted Shaft | ||
PTV09 Series 9mm Rotary Linear Potentiometers
PTV09 series 9mm rotary linear potentiometers with a carbon element, insulated shaft and centre detent option (stock numbers 737-7821, 827-4990, 827-5022 and 737-7830). These PTV09 rotary linear potentiometers are PCB horizontal mounting apart from stock number 737-7818 which is vertical/side mounting. For further details please refer to datasheet.
Typical applications for these PTV09 rotary potentionmeters include commercial communications equipment, portable electronics, amplifiers, mixers, drum machines, synthesizers and commercial applicances.
Insulated shaft
Snap-in clip
Centre detent option
