Nichicon 100 μF Surface Mount Polymer Capacitor, 25V dc
- RS Stock No.:
- 187-2199
- Mfr. Part No.:
- GYA1E101MCQ1GS
- Brand:
- Nichicon

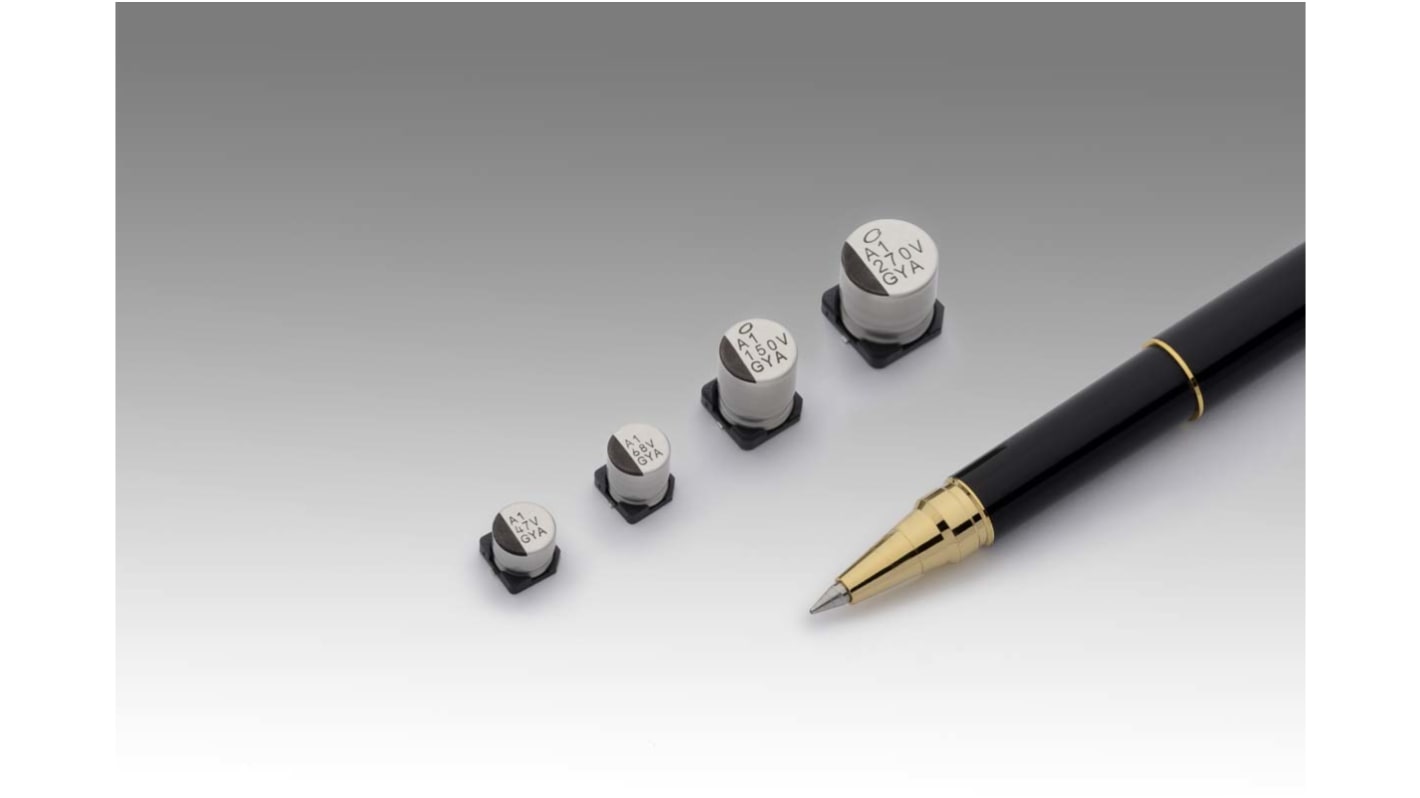

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 900 units)*
$486.00
(exc. GST)
$531.00
(inc. GST)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 900 - 3600 | $0.54 | $486.00 |
| 4500 + | $0.486 | $437.40 |
*price indicative
- RS Stock No.:
- 187-2199
- Mfr. Part No.:
- GYA1E101MCQ1GS
- Brand:
- Nichicon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nichicon | |
| Product Type | Polymer Capacitor | |
| Technology | Hybrid | |
| Capacitance | 100μF | |
| Mount Type | Surface Mount | |
| Polarity | Polar | |
| Lead Pitch | 2.2mm | |
| Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Dimensions | 6.6 x 6.6 x 7.7 mm | |
| Length | 6.6mm | |
| Series | YA | |
| Height | 7.7mm | |
| Depth | 6.6mm | |
| Electrolyte Type | Hybrid | |
| Minimum Operating Temperature | -55°C | |
| Lifetime | 4000 h | |
| Automotive Standard | No | |
| Leakage Current | 25μA | |
| Ripple Current | 1.4A | |
| Dissipation Factor | 14% | |
| Select all | ||
|---|---|---|
Brand Nichicon | ||
Product Type Polymer Capacitor | ||
Technology Hybrid | ||
Capacitance 100μF | ||
Mount Type Surface Mount | ||
Polarity Polar | ||
Lead Pitch 2.2mm | ||
Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Dimensions 6.6 x 6.6 x 7.7 mm | ||
Length 6.6mm | ||
Series YA | ||
Height 7.7mm | ||
Depth 6.6mm | ||
Electrolyte Type Hybrid | ||
Minimum Operating Temperature -55°C | ||
Lifetime 4000 h | ||
Automotive Standard No | ||
Leakage Current 25μA | ||
Ripple Current 1.4A | ||
Dissipation Factor 14% | ||
- COO (Country of Origin):
- JP
High Reliability, Low ESR,High ripple current
Long life of 4000 hours at 125°C
