Theben PLC Expansion Module for Use with TR 641 top2 RC, TR 642 top2 RC, TR 644 top2 RC, External, Switch
- RS Stock No.:
- 738-8745
- Mfr. Part No.:
- EM4 top2
- Brand:
- Theben
1 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$540.81
(exc. GST)
$594.89
(inc. GST)
Units | Per unit |
1 + | $540.81 |
- RS Stock No.:
- 738-8745
- Mfr. Part No.:
- EM4 top2
- Brand:
- Theben
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

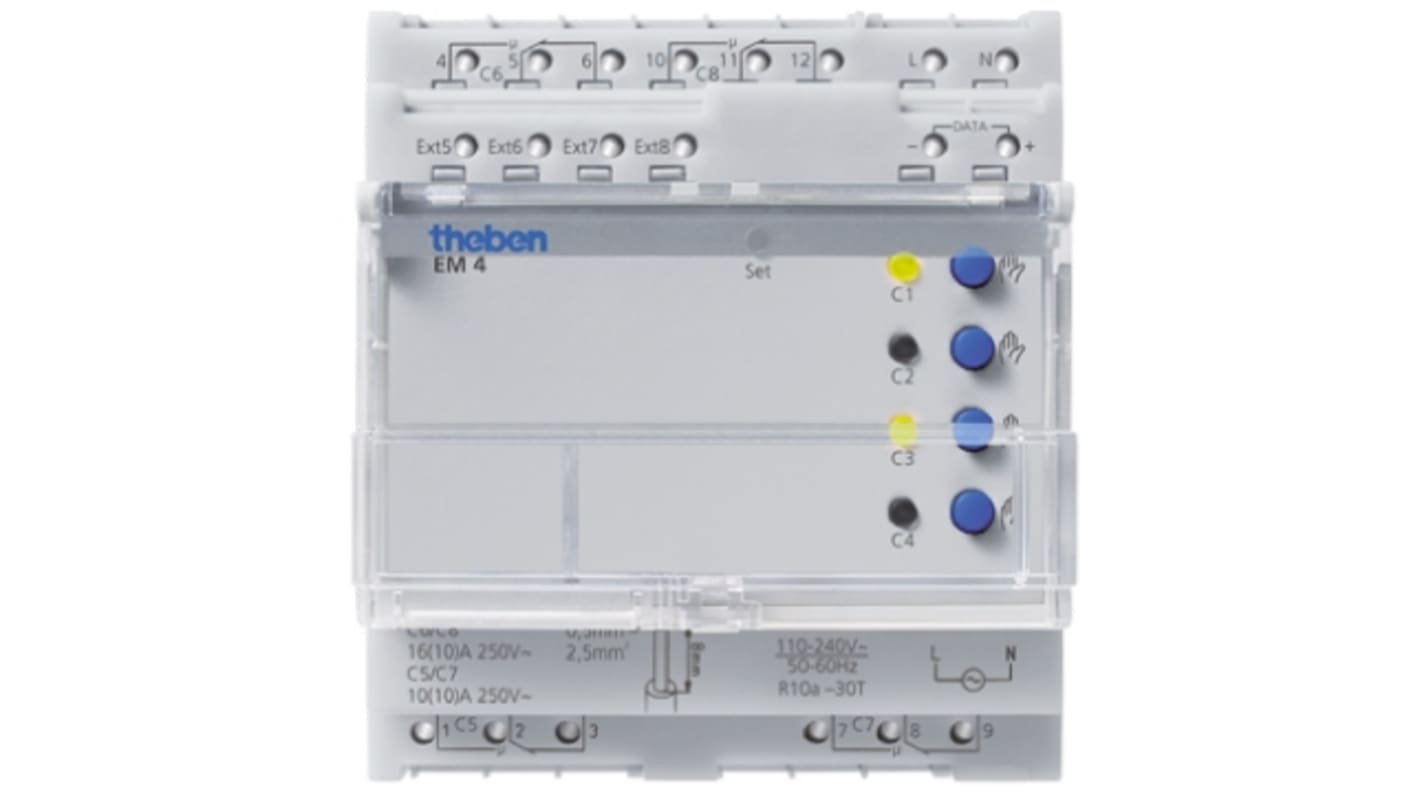

EM4 Top2 Extension Module for the TR Series
The EM4 Top2 extension module from Theben / Timeguard provides up to 4 addition channels for the following devices TR 641 top2 RC, TR 642 top2 RC and TR 644 top2 RC. Other features of the EM4 include an 8 year power reserve, up to 16 A resistive load switching capacity per channel and a high-temperature resistant, self-extinguishing thermoplastic housing.
Four channel extension module for TR 641 top2 RC, TR 642 top2 RC and TR 644 top2 RC
Provides extension of up to 4 channels
Width: 4 modules
DuoFix spring terminals
Switching preselection
Permanent ON/OFF switching
Four LED's for displaying switching status
Zero-cross switching for high lamp loads
Provides extension of up to 4 channels
Width: 4 modules
DuoFix spring terminals
Switching preselection
Permanent ON/OFF switching
Four LED's for displaying switching status
Zero-cross switching for high lamp loads
Specifications
Attribute | Value |
---|---|
Accessory Type | PLC Expansion Module |
Input Type | External |
Number of Inputs | 4 |
Output Type | Switch |
Number of Outputs | 4 |
For Use With | TR 641 top2 RC, TR 642 top2 RC, TR 644 top2 RC |
Dimensions | 71.8 x 69.2 x 90.1 mm |
