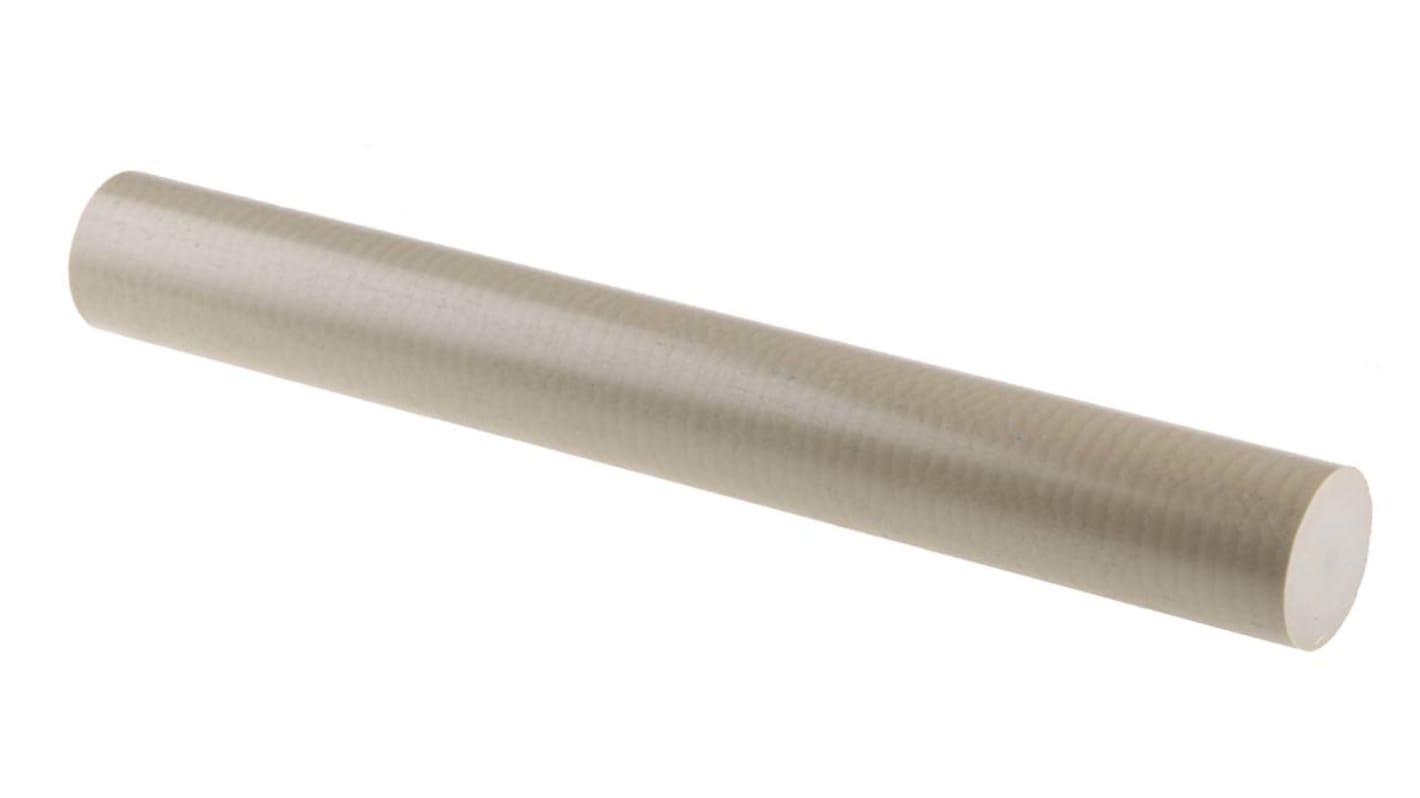

RS PRO Beige Polyetheretherketone PEEK Rod, 300mm x 36mm Diameter
- RS Stock No.:
- 282-0610
- Brand:
- RS PRO
4 In Global stock for delivery within 10 working day(s)
Price (ex. GST) 1 Lot of 1
Was $304.36
You pay
$258.71
(exc. GST)
$284.58
(inc. GST)
Lot(s) | Per Lot |
|---|---|
| 1 - 14 | $258.71 |
| 15 - 74 | $254.35 |
| 75 + | $209.32 |
- RS Stock No.:
- 282-0610
- Brand:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Victrex® PEEK 450G
Typical applications include valve seats in steam and water mixers, components in a high temperature diesel engine turbo actuators etc.
Continuous working temperature approx 250°C
No significant degradation in steam or high pressure water environments
Can absorb over 1000 Mrads of radiation without appreciable loss of mechanical properties
Excellent resistance to a wide range of organic and inorganic liquids, and resistant to all common solvents
Fawn in colour
No significant degradation in steam or high pressure water environments
Can absorb over 1000 Mrads of radiation without appreciable loss of mechanical properties
Excellent resistance to a wide range of organic and inorganic liquids, and resistant to all common solvents
Fawn in colour
Note
No. Per Lot is 1
Typical applications include valve seats in steam and water mixers, components in a high temperature diesel engine turbo actuator etc.
Continuous working temperature approx 250°C
No significant degradation in steam or high-pressure water environments
Can absorb over 1000 Mrads of radiation without appreciable loss of mechanical properties
Excellent resistance to a wide range of organic and inorganic liquids, and resistant to all common solvents
Fawn in colour
Continuous working temperature approx 250°C
No significant degradation in steam or high-pressure water environments
Can absorb over 1000 Mrads of radiation without appreciable loss of mechanical properties
Excellent resistance to a wide range of organic and inorganic liquids, and resistant to all common solvents
Fawn in colour
Note
No. Per Lot is 1
Standards
DIN 53479; DIN 53765; DIN 53765-D-10; ASTM-D 1929
Specifications
Attribute | Value |
|---|---|
| Colour | Beige |
| Length | 300mm |
| Material | PEEK |
| Form | Rod |
| Rod Diameter | 36mm |
| Density | 1.32g/cm³ |
| Tensile Strength | 95 MPa |
| Flammability Rating | UL 94 V-0 |
| Hardness | M 99 Rockwell |
| Elongation | 25% |
| Water Absorption | 0.5% |
| Maximum Operating Temperature | +260°C |
