Product Details

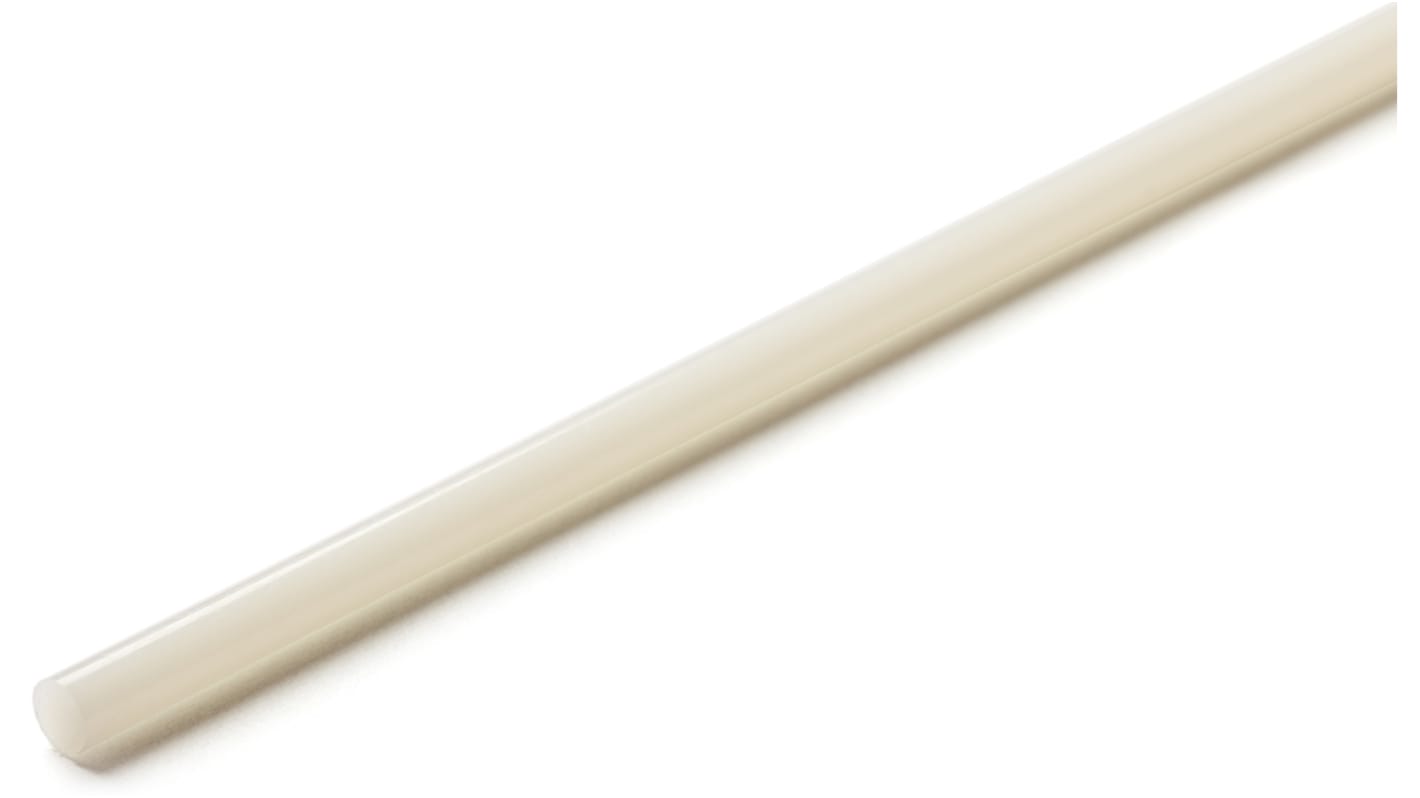

RS PRO White Nylon Rod, 1 m x 10 mm Diameter
This white nylon rod from RS PRO can be used to create strong and lightweight technological components. It has a one-metre length and is highly machinable, allowing you to produce multiple components.
For safety in the event of a fire, the rod has a UL HB (Horizontal Burning) rating, meaning that it will burn very slowly. The nylon 66 material is chemically resistant and has a high level of impact strength, guaranteeing long-lasting performance.
As the rod has a high melting point and can withstand temperatures of up to +170°C, it's a good choice for high-temperature applications. You'll find it used for packaging and food processing machinery, as well as for gears, wheels and bearings in aircraft equipment.
For safety in the event of a fire, the rod has a UL HB (Horizontal Burning) rating, meaning that it will burn very slowly. The nylon 66 material is chemically resistant and has a high level of impact strength, guaranteeing long-lasting performance.
As the rod has a high melting point and can withstand temperatures of up to +170°C, it's a good choice for high-temperature applications. You'll find it used for packaging and food processing machinery, as well as for gears, wheels and bearings in aircraft equipment.
Features and Benefits
- White colour
- Density of 1.14 g/cm³
- Elongation of 150%
- UL HB (Underwriters' Laboratories Horizontal Burning) flammability rating
- Rod form
- Hardness of 170 ball indentation
- Length of 1 m
- Nylon material
- Maximum operating temperature of +170°C
- Rod diameter of 10 mm
- Tensile strength of 60 megapascals (MPa) wet, 80 MPa dry
- Water absorption of 8.5%
Standards
DIN 50 014
Specifications
Attribute | Value |
---|---|
Colour | White |
Length | 1m |
Material | Nylon |
Form | Rod |
Rod Diameter | 10mm |
Density | 1.14g/cm³ |
Tensile Strength | 60 (Wet) MPa, 80 (Dry) MPa |
Maximum Operating Temperature | +170°C |
Flammability Rating | UL HB |
Hardness | 170 Ball Indentation |
Elongation | 150% |
Water Absorption | 8.5% |
