Vishay VBPW34SR Infrared, Visible Light Photodiode, ± 65 °, Surface Mount Reverse Gullwing
- RS Stock No.:
- 768-9414
- Mfr. Part No.:
- VBPW34SR
- Brand:
- Vishay

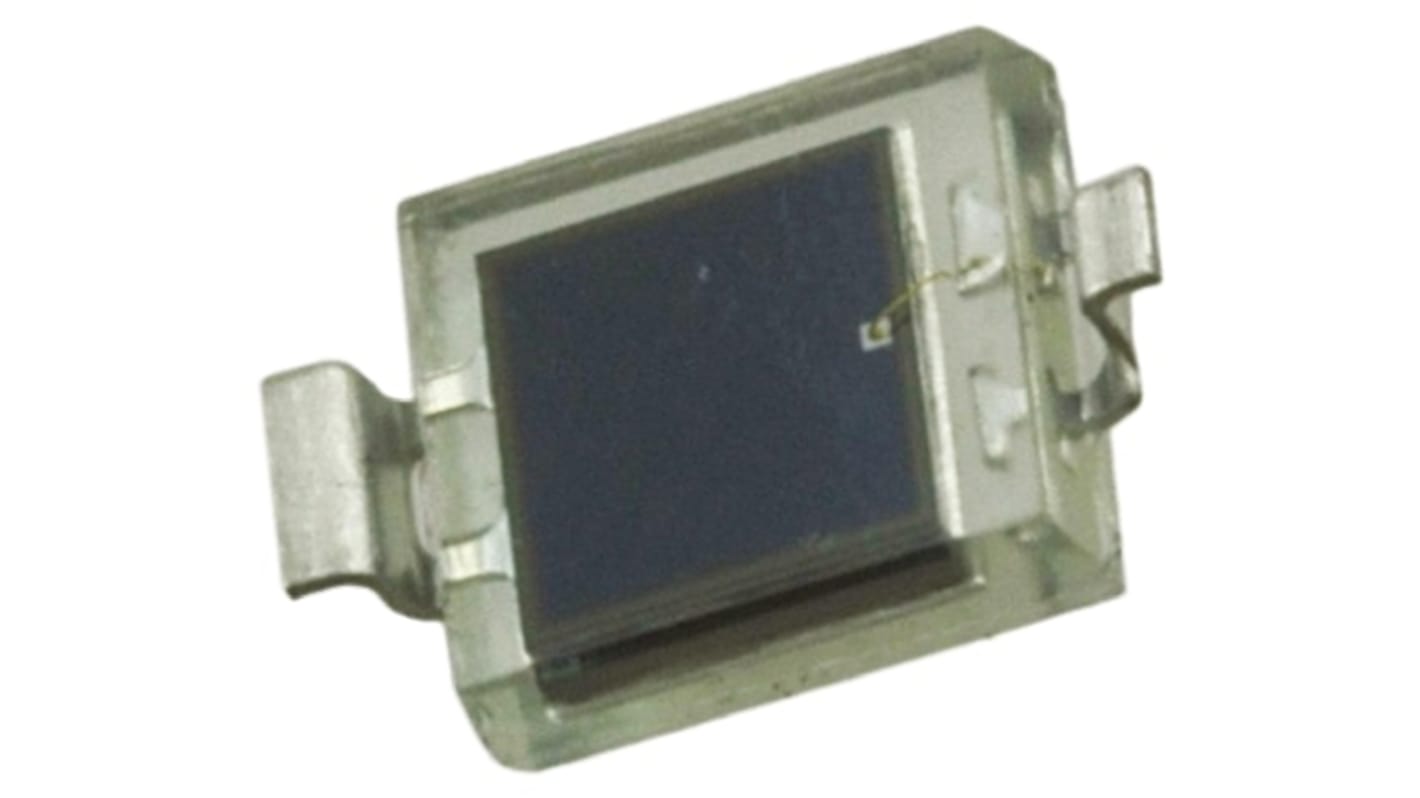

This image is representative of the product range
Subtotal (1 bag of 5 units)*
$10.09
(exc. GST)
$11.10
(inc. GST)
FREE delivery for orders over $60.00 ex GST
- 15 left, ready to ship from another location
- Final 905 unit(s) shipping from 04 May 2026
Units | Per unit | Per Bag* |
|---|---|---|
| 5 - 245 | $2.018 | $10.09 |
| 250 - 495 | $1.964 | $9.82 |
| 500 + | $1.936 | $9.68 |
*price indicative
- RS Stock No.:
- 768-9414
- Mfr. Part No.:
- VBPW34SR
- Brand:
- Vishay
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Photodiode | |
| Spectrums Detected | Infrared, Visible Light | |
| Wavelength of Peak Sensitivity | 940nm | |
| Package Type | Reverse Gullwing | |
| Mount Type | Surface Mount | |
| Packaging | Tape & Reel | |
| Number of Pins | 2 | |
| Minimum Wavelength Detected | 430nm | |
| Maximum Wavelength Detected | 1100nm | |
| Typical Fall Time | 100ns | |
| Amplified | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Width | 3.9mm | |
| Length | 4.4mm | |
| Height | 1.2mm | |
| Standards/Approvals | WEEE 2002/96/EC, RoHS Directive 2002/95/EC, IEC 61249-2-21 | |
| Angle of Half Sensitivity | ± 65 ° | |
| Short Circuit Current | 50μA | |
| Typical Rise Time | 100ns | |
| Polarity | Forward | |
| Open Circuit Voltage | 350mV | |
| Breakdown Voltage | 60V | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Photodiode | ||
Spectrums Detected Infrared, Visible Light | ||
Wavelength of Peak Sensitivity 940nm | ||
Package Type Reverse Gullwing | ||
Mount Type Surface Mount | ||
Packaging Tape & Reel | ||
Number of Pins 2 | ||
Minimum Wavelength Detected 430nm | ||
Maximum Wavelength Detected 1100nm | ||
Typical Fall Time 100ns | ||
Amplified No | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Width 3.9mm | ||
Length 4.4mm | ||
Height 1.2mm | ||
Standards/Approvals WEEE 2002/96/EC, RoHS Directive 2002/95/EC, IEC 61249-2-21 | ||
Angle of Half Sensitivity ± 65 ° | ||
Short Circuit Current 50μA | ||
Typical Rise Time 100ns | ||
Polarity Forward | ||
Open Circuit Voltage 350mV | ||
Breakdown Voltage 60V | ||
Automotive Standard AEC-Q101 | ||
VBPW34 Series PIN Photodiodes
Photodiodes, Vishay Semiconductor
