Vishay VBPW34FASR Infrared Photodiode, 65 °, Surface Mount Reverse Gullwing

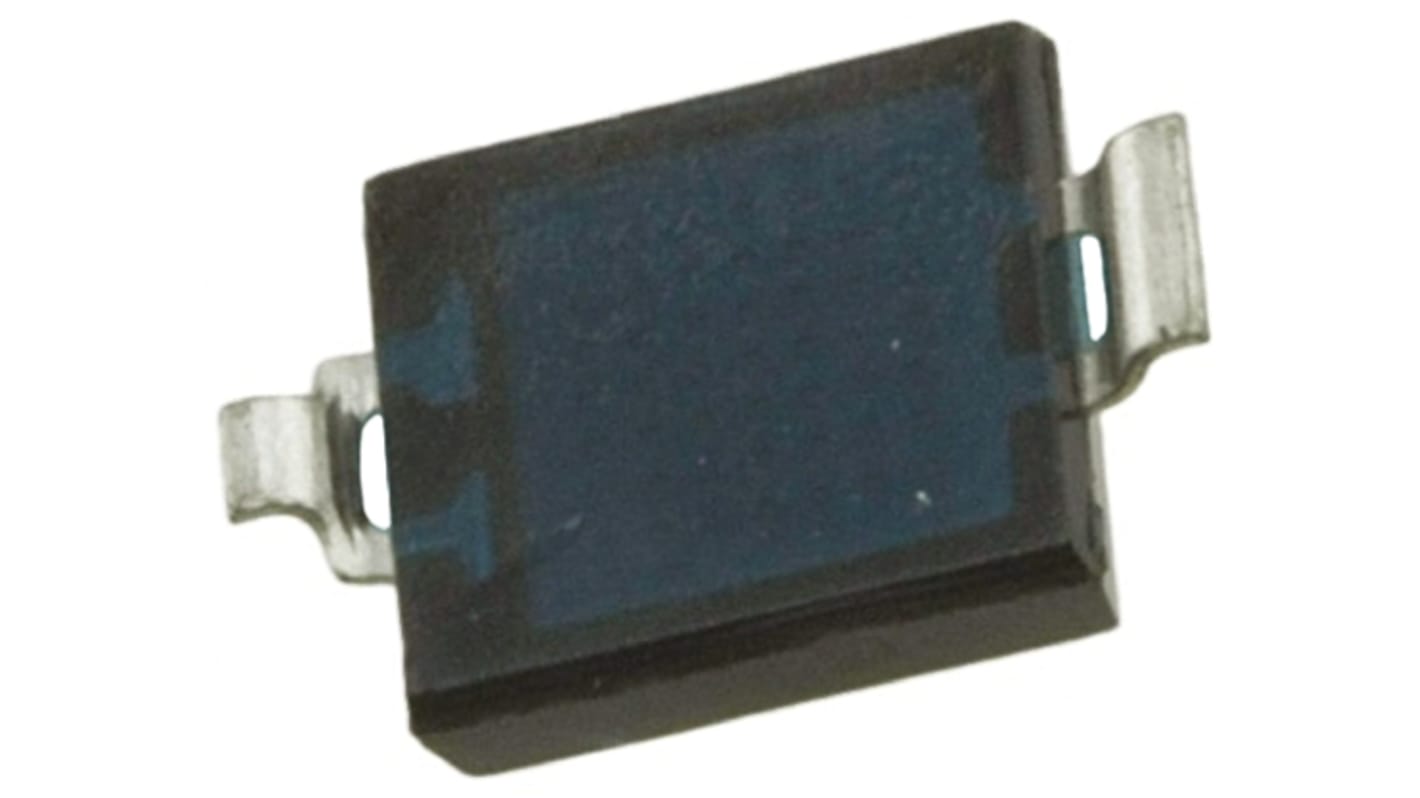

This image is representative of the product range

View all Photodiodes
Bulk discount available
View bulk pricing options

Subtotal (1 bag of 5 units)*

$10.09

(exc. GST)

$11.10

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 1,535 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Bag*
5 - 245$2.018$10.09
250 - 495$1.966$9.83
500 +$1.938$9.69

*price indicative

Packaging Options:
RS Stock No.:
768-9401
Mfr. Part No.:
VBPW34FASR
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Spectrums Detected

Infrared

Product Type

Photodiode

Wavelength of Peak Sensitivity

950nm

Package Type

Reverse Gullwing

Mount Type

Surface Mount

Packaging

Tape & Reel

Number of Pins

2

Minimum Wavelength Detected

780nm

Maximum Wavelength Detected

1050nm

Typical Fall Time

80ns

Amplified

No

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

100°C

Height

1.2mm

Length

4.4mm

Width

3.9mm

Standards/Approvals

RoHS

Angle of Half Sensitivity

65 °

Dark Current

2nA

Polarity

Forward

Breakdown Voltage

60V

Automotive Standard

AEC-Q101

Open Circuit Voltage

350mV

Short Circuit Current

50μA

Typical Rise Time

80ns

VBPW34 Series PIN Photodiodes


The VBPW34 series, from Vishay Semiconductor, are a family of surface mount (SMD) silicon PIN photodiodes. They are available with gull-wing or reverse gull-wing lead types. The VBPW34 series are suitable for high speed IR detectors, IR remote control and Air data transmission system applications.

Features of the VBPW34 PIN photodiodes:

Surface mount (SMD) black package

GW or RGW leads

Dimensions: 6.4 x 3.9 x 1.2 mm

Radiant sensitive area: 7.5 mm²

High radiant sensitivity

Fast response times

Angle of half intensity: 65°
