Fluke 9062 Phase Rotation Tester 2 Hz, 400 Hz Max, 400V ac Max

View all Phase Rotation Testers

Subtotal (1 unit)*

$592.00

(exc. GST)

$651.20

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
  • Plus 2 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +$592.00

*price indicative

Fluke EOFY 2025
RS Stock No.:
513-1834
Distrelec Article No.:
176-45-534
Mfr. Part No.:
FLUKE 9062
Brand:
Fluke
Find similar products by selecting one or more attributes.
Select all

Brand

Fluke

Connection Type

Test Probe

Product Type

Phase Rotation Tester

Overvoltage Category

CAT III 300V

Display Type

LED

Non-Contact

No

Current Consumption

20mA

Power Source

Battery

Weight

150g

Minimum Operating Temperature

0°C

Height

124mm

Maximum Operating Temperature

40°C

Length

61mm

Standards/Approvals

No

Maximum Frequency

400Hz

Minimum Frequency

2Hz

Model Number

9062

Width

27mm

Maximum Voltage

400V ac

RoHS Status: Exempt

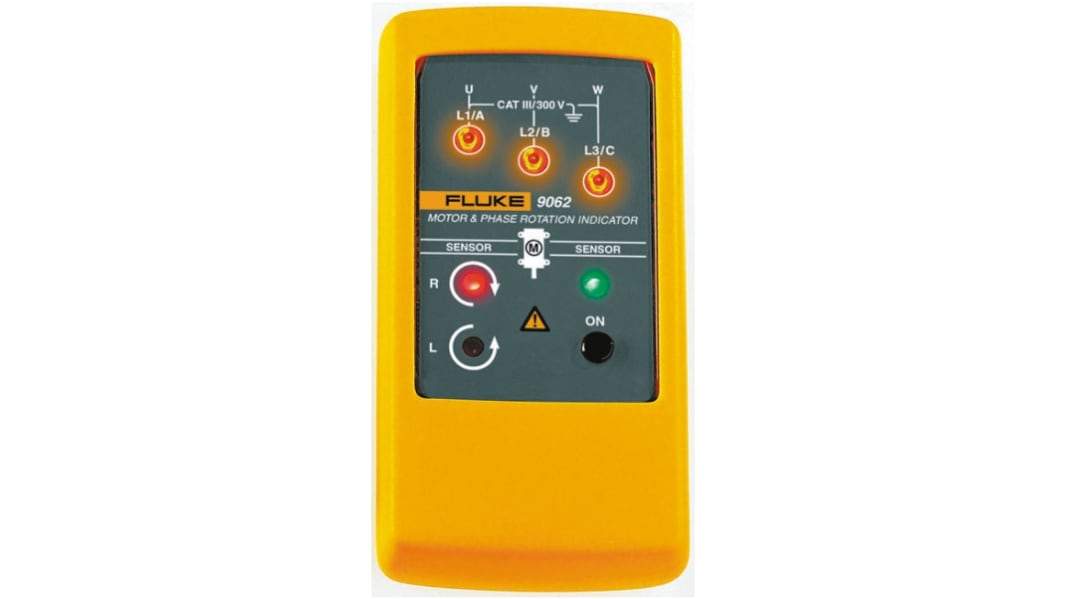

Fluke Phase Rotation Tester, 400V Maximum Voltage, 2Hz Minimum Frequency - FLUKE 9062


This phase rotation tester provides a Rapid indication of three-phase sequence and motor rotation direction in commercial and industrial settings. It determines phase order with either supplied test leads or by non-contact sensing of running motors, enabling electricians and engineers to confirm rotary field direction without requiring shaft visibility. The instrument operates across common supply frequencies and voltages used in motor and installation testing and is powered by a single battery for field portability.

Features & Benefits


• Phase indication up to 400VAC for broad system compatibility
• Frequency response from 2–400Hz to cover slow to fast machines
• LED display for immediate, easily readable phase sequence information
• Contactless motor rotation detection to assess running equipment safely
• Low current draw at 20mA for extended battery operation
• CAT III 300V safety rating suitable for fixed installation testing

**Applications**


• Suitable for verifying phase order on motor control panels
• Ideal for assessing rotation of synchronous and asynchronous motors while running
• Used with distribution boards during commissioning and fault-finding
• Can be used for maintenance checks where shafts are inaccessible
• Used for on-site confirmation prior to motor coupling and installation

How is the device powered and what are the supply requirements for field use?


It runs from a single 9V battery and draws approximately 20mA during measurement, providing portable operation for site tasks.

Can the tester operate at low supply frequencies encountered in specialised equipment?


Yes, it accurately indicates phase sequence down to 2Hz, accommodating variable-speed drives and slow-turning machinery.

What environmental limits should be observed during operation?


The instrument is rated for continuous use between 0°C and 40°C and for altitudes up to 2000m with humidity up to 80% non‑condensing.

Are probe accessories provided for different connection types?


The package includes test leads, probes and crocodile clips enabling both temporary contact testing and clamped connections in industrial sockets.

How does the unit indicate phase sequence visually?


It uses an LED display to show rotary field direction and phase order for quick verification on site.
