Toshiba, TLP182(GR,E(T AC Input Phototransistor Output Optocoupler, Surface Mount, 4-Pin SO

RS Stock No.:: 896-2476
Mfr. Part No.:: TLP182(GR,E(T
Brand:: Toshiba

Toshiba, TLP182(GR,E(T AC Input Phototransistor Output Optocoupler, Surface Mount, 4-Pin SO

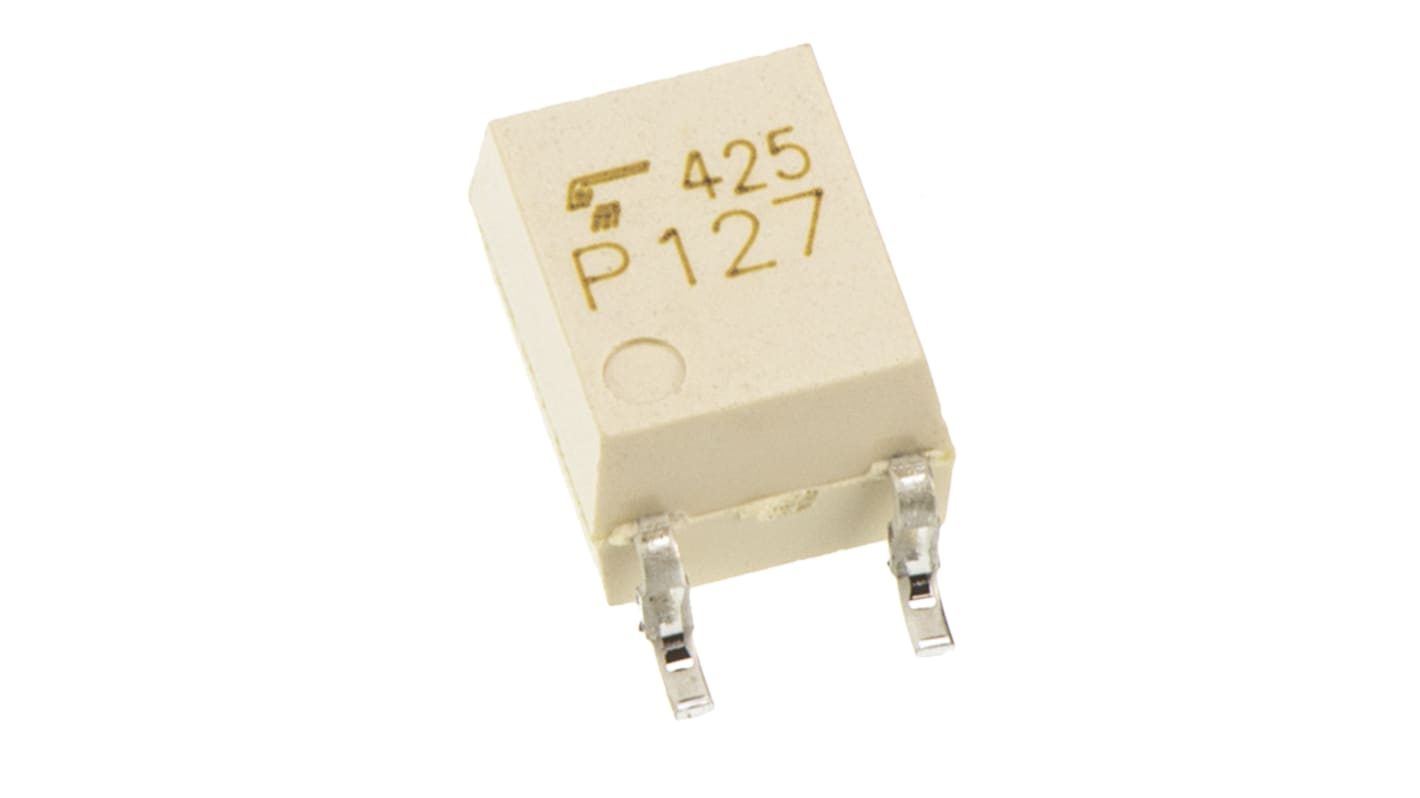

This image is representative of the product range

25 In Global stock for delivery within 5 working day(s)

Price (ex. GST) Each (In a Pack of 25)

$0.371

(exc. GST)

$0.408

(inc. GST)

Units	Per unit	Per Pack*
25 - 25	$0.371	$9.275
50 - 100	$0.36	$9.00
125 - 225	$0.35	$8.75
250 - 475	$0.339	$8.475
500 +	$0.328	$8.20

*price indicative

RS Stock No.:: 896-2476
Mfr. Part No.:: TLP182(GR,E(T
Brand:: Toshiba

Technical data sheets

TLP182, Photocoupler with AC/DC-Input and Phototransistor Output

Legislation and Compliance

COO (Country of Origin):: TH

Product Details

Photocoupler, AC-Input, Transistor Output, Toshiba

A range of photocouplers from Toshiba incorporating dual inverse parallel connected LEDs making them suitable for bipolar input currents. These AC input photocouplers have transistor outputs.

Optocouplers, Toshiba

Specifications

Attribute	Value
Mounting Type	Surface Mount
Output Device	Phototransistor
Maximum Forward Voltage	1.4V
Number of Channels	1
Number of Pins	4
Package Type	SO
Input Current Type	AC
Typical Rise Time	2µs
Maximum Input Current	±1 A
Isolation Voltage	3750 Vrms
Maximum Current Transfer Ratio	600%
Typical Fall Time	3µs
Series	TLP
