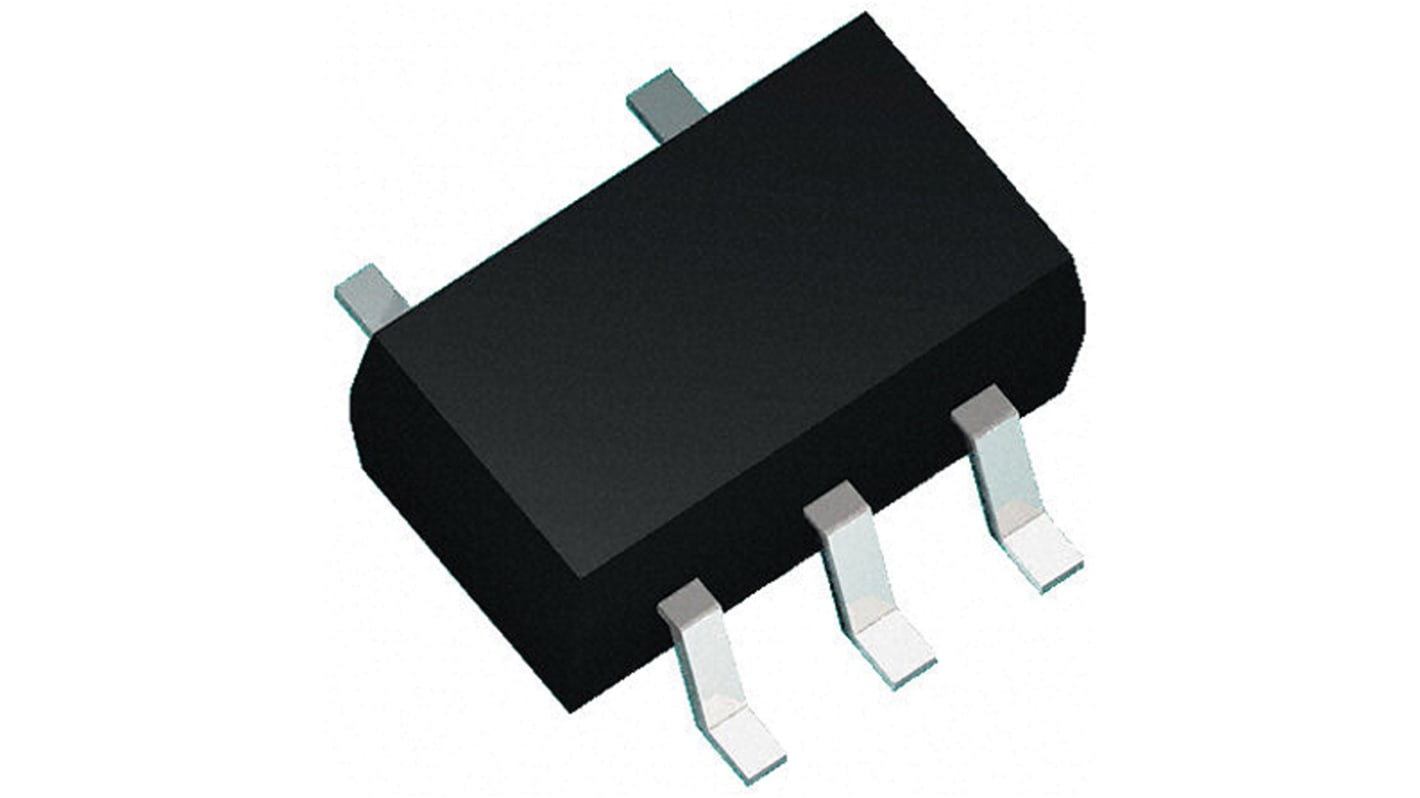

    NCV20061SQ3T2G onsemi, Operational Amplifier, Op Amp, RRIO, 3MHz 10 kHz, 1.8 → 5.5 V, 5-Pin SC-70

    View all Op Amps
    Bulk discount available

    Subtotal (1 pack of 50 units)**

    $46.75

    (exc. GST)

    $51.45

    (inc. GST)

    Add to Basket
    Select or type quantity
    On back order for despatch 09/09/2025, delivery within 10 working days from despatch date.*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Units
    Per unit
    Per Pack**
    50 - 700$0.935$46.75
    750 - 1450$0.912$45.60
    1500 +$0.898$44.90

    **price indicative

    Packaging Options:
    RS Stock No.:
    172-4604
    Mfr. Part No.:
    NCV20061SQ3T2G
    Brand:
    onsemi
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    onsemi

    Amplifier Type

    Operational Amplifier

    Mounting Type

    Surface Mount

    Package Type

    SC-70

    Power Supply Type

    Single

    Number of Channels per Chip

    1

    Pin Count

    5

    Typical Single Supply Voltage

    1.8 → 5.5 V

    Typical Gain Bandwidth Product

    3MHz

    Output Type

    Rail to Rail

    Typical Slew Rate

    1.2V/µs

    Maximum Operating Frequency

    10 kHz

    Minimum Operating Temperature

    -40 °C

    Maximum Operating Temperature

    +125 °C

    Automotive Standard

    AEC-Q100

    Output Current

    ±100 mA

    Typical Voltage Gain

    120 dB

    Rail to Rail

    Rail to Rail Input/Output

    Maximum Input Voltage

    5.5 V

    Offset Voltage

    4mV

    Typical Input Voltage Noise Density

    20nV/√Hz

    Width

    1.35mm

    Dimensions

    2.2 x 1.35 x 1mm

    Input Voltage Range

    1.8 → 5.5 V

    Minimum Input Voltage

    1.8 V

    Height

    1mm

    Input Offset Current

    1100pA

    Length

    2.2mm
