Parker Stainless Steel Needle Valve 1/4 in
- RS Stock No.:
- 432-5195
- Mfr. Part No.:
- 4A-V4LR-SS
- Brand:
- Parker
Stock check temporarily unavailable - call for stock availability
Added
Price (ex. GST) Each
$327.14
(exc. GST)
$359.85
(inc. GST)
| Units | Per unit |
| 1 - 11 | $327.14 |
| 12 + | $323.56 |
- RS Stock No.:
- 432-5195
- Mfr. Part No.:
- 4A-V4LR-SS
- Brand:
- Parker
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

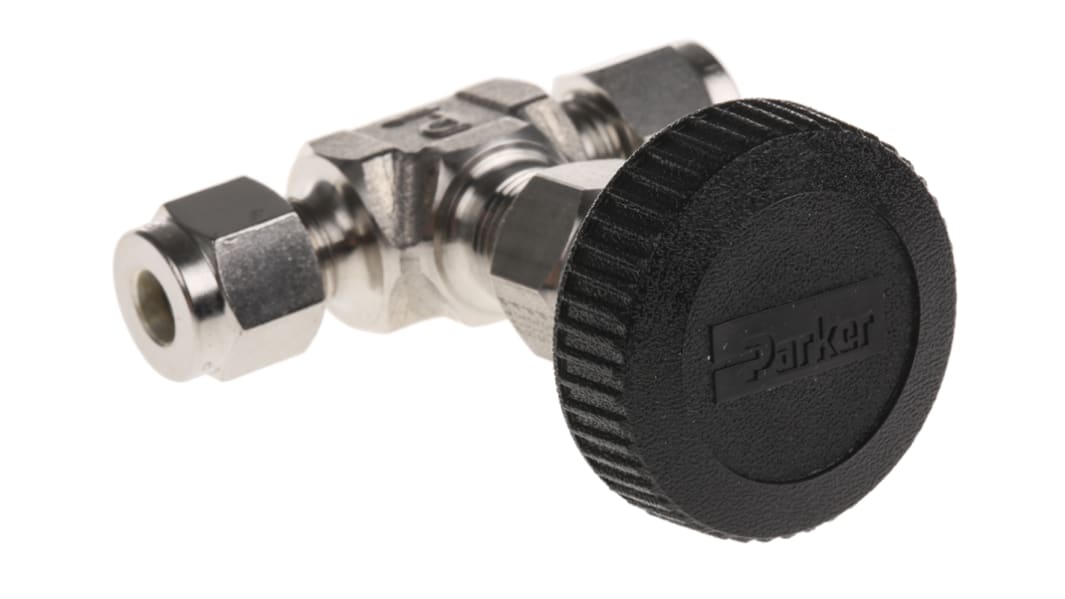

Parker Needle Valve
The Parker V4 series needle valve has an inline orientation with 1/4in double ferrule tube fitting ends and a maximum pressure of 345bar. It has a blunt (hard seat) stem configuration and Teflon stem packing. This valve is designed to provide positive leak tight shut-off and coarse regulation of fluids in process and instrumentation applications, providing the user with the utmost in flexibility. It is available in five integral bonnet designs with packing above the stem threads.
Features and Benefits
Inline and angle patterns standard
316 stainless steel and brass construction standard
Maximum working pressure is 345bar (5,000psig)
Operating temperature ranges between -54°C and 232°C
316 stainless steel and brass construction standard
Maximum working pressure is 345bar (5,000psig)
Operating temperature ranges between -54°C and 232°C
Specifications
Attribute | Value |
|---|---|
| Connection | 1/4 in |
| Body Material | Stainless Steel |
| Connection Orientation | Straight |
| Maximum Liquid Pressure | 345bar |
| Valve Orientation | Inline |
| Flow Factor Kv | 0.37m³/h |
| Maximum Working Pressure | 345 bar |
