DiodesZetex DMP Type P-Channel MOSFET, 600 mA, 20 V Enhancement, 3-Pin X1-DFN DMP21D6UFD-7
- RS Stock No.:
- 182-7329
- Mfr. Part No.:
- DMP21D6UFD-7
- Brand:
- DiodesZetex

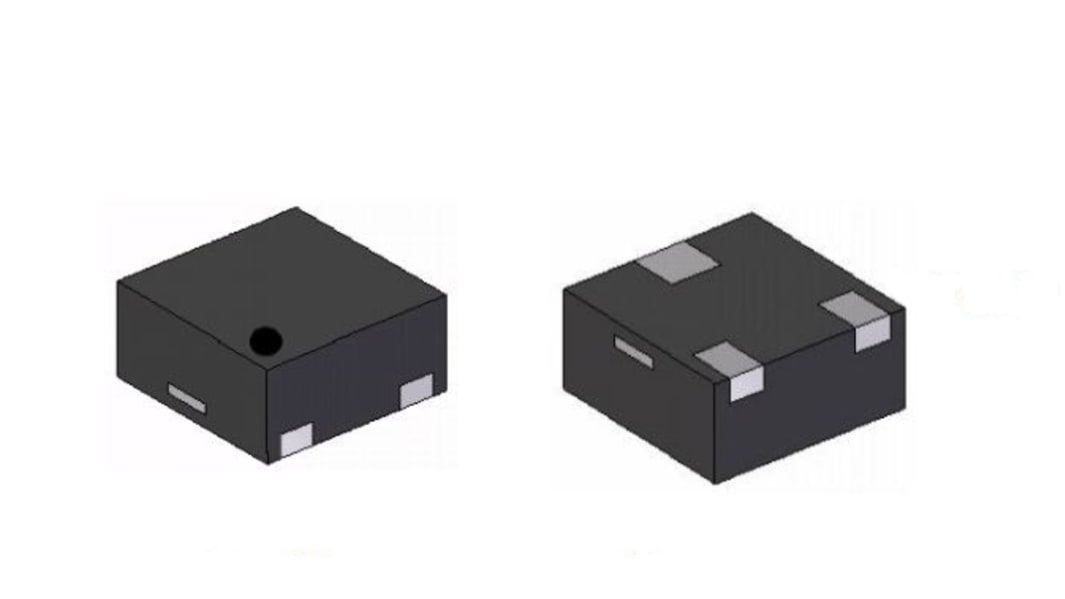

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 100 units)*
$17.40
(exc. GST)
$19.10
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Last RS stock
- Final 1,900 unit(s), ready to ship from another location
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 700 | $0.174 | $17.40 |
| 800 - 1400 | $0.17 | $17.00 |
| 1500 + | $0.167 | $16.70 |
*price indicative
- RS Stock No.:
- 182-7329
- Mfr. Part No.:
- DMP21D6UFD-7
- Brand:
- DiodesZetex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Channel Type | Type P | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 600mA | |
| Maximum Drain Source Voltage Vds | 20V | |
| Series | DMP | |
| Package Type | X1-DFN | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 3mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 8 V | |
| Forward Voltage Vf | -1.1V | |
| Typical Gate Charge Qg @ Vgs | 0.8nC | |
| Maximum Power Dissipation Pd | 800mW | |
| Maximum Operating Temperature | 150°C | |
| Length | 1.25mm | |
| Width | 1.25 mm | |
| Height | 0.48mm | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Channel Type Type P | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 600mA | ||
Maximum Drain Source Voltage Vds 20V | ||
Series DMP | ||
Package Type X1-DFN | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 3mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 8 V | ||
Forward Voltage Vf -1.1V | ||
Typical Gate Charge Qg @ Vgs 0.8nC | ||
Maximum Power Dissipation Pd 800mW | ||
Maximum Operating Temperature 150°C | ||
Length 1.25mm | ||
Width 1.25 mm | ||
Height 0.48mm | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- CN
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-efficiency power management applications.
Low On-Resistance
Very Low Gate Threshold Voltage, -1.0V Max
Low Input Capacitance
Fast Switching Speed
ESD Protected Gate
Totally Lead-Free
Halogen and Antimony Free. “Green” Device
Applications
Power Management Functions
DC-DC Converters
