Vishay TrenchFET Type P-Channel MOSFET, 50 A, 60 V Enhancement, 3-Pin TO-252
- RS Stock No.:
- 180-7402
- Distrelec Article No.:
- 303-97-244
- Mfr. Part No.:
- SQD50P06-15L_GE3
- Brand:
- Vishay

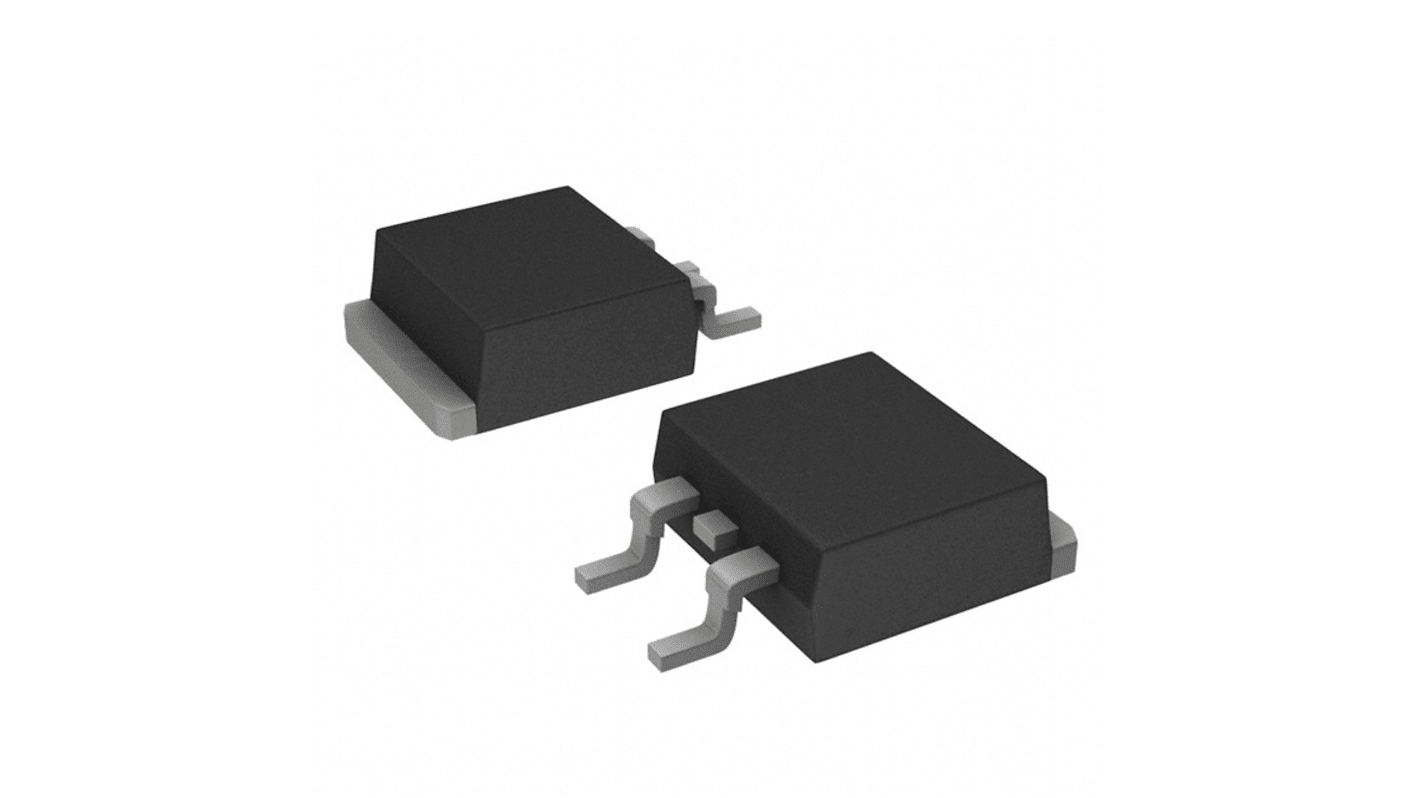

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 180-7402
- Distrelec Article No.:
- 303-97-244
- Mfr. Part No.:
- SQD50P06-15L_GE3
- Brand:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Channel Type | Type P | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 50A | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | TO-252 | |
| Series | TrenchFET | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 20mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 98nC | |
| Maximum Power Dissipation Pd | 136W | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Forward Voltage Vf | -1.5V | |
| Maximum Operating Temperature | 175°C | |
| Height | 2.38mm | |
| Width | 6.73 mm | |
| Standards/Approvals | No | |
| Length | 10.41mm | |
| Automotive Standard | AEC-Q101 | |
| Distrelec Product Id | 30397244 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Channel Type Type P | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 50A | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type TO-252 | ||
Series TrenchFET | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 20mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 98nC | ||
Maximum Power Dissipation Pd 136W | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Forward Voltage Vf -1.5V | ||
Maximum Operating Temperature 175°C | ||
Height 2.38mm | ||
Width 6.73 mm | ||
Standards/Approvals No | ||
Length 10.41mm | ||
Automotive Standard AEC-Q101 | ||
Distrelec Product Id 30397244 | ||
- COO (Country of Origin):
- TW
Vishay MOSFET
The Vishay surface mount P-channel MOSFET is a new age product with a drain-source voltage of 60V and a maximum gate-source voltage of 20V. It has drain-source resistance of 15.5mohm at a gate-source voltage of 10V. It has continuous drain current of 50A and maximum power dissipation of 136W. The minimum and a maximum driving voltage for this transistor are 4.5V and 10V respectively. It is used in automotive applications. The MOSFET has been optimized for lower switching and conduction losses. The MOSFET offers excellent efficiency along with a long and productive life without compromising performance or functionality.
Features and Benefits
• Halogen free
• Lead (Pb) free
• Operating temperature ranges between -55°C and 175°C
• Package with low thermal resistance
• TrenchFET power MOSFET
Applications
• Adaptor switch
• Load switches
Certifications
• AEC-Q101
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• Rg tested
• UIS tested
