Infineon BSC035N10NS5 Type N-Channel MOSFET, 100 A, 100 V Enhancement, 8-Pin TDSON BSC035N10NS5ATMA1

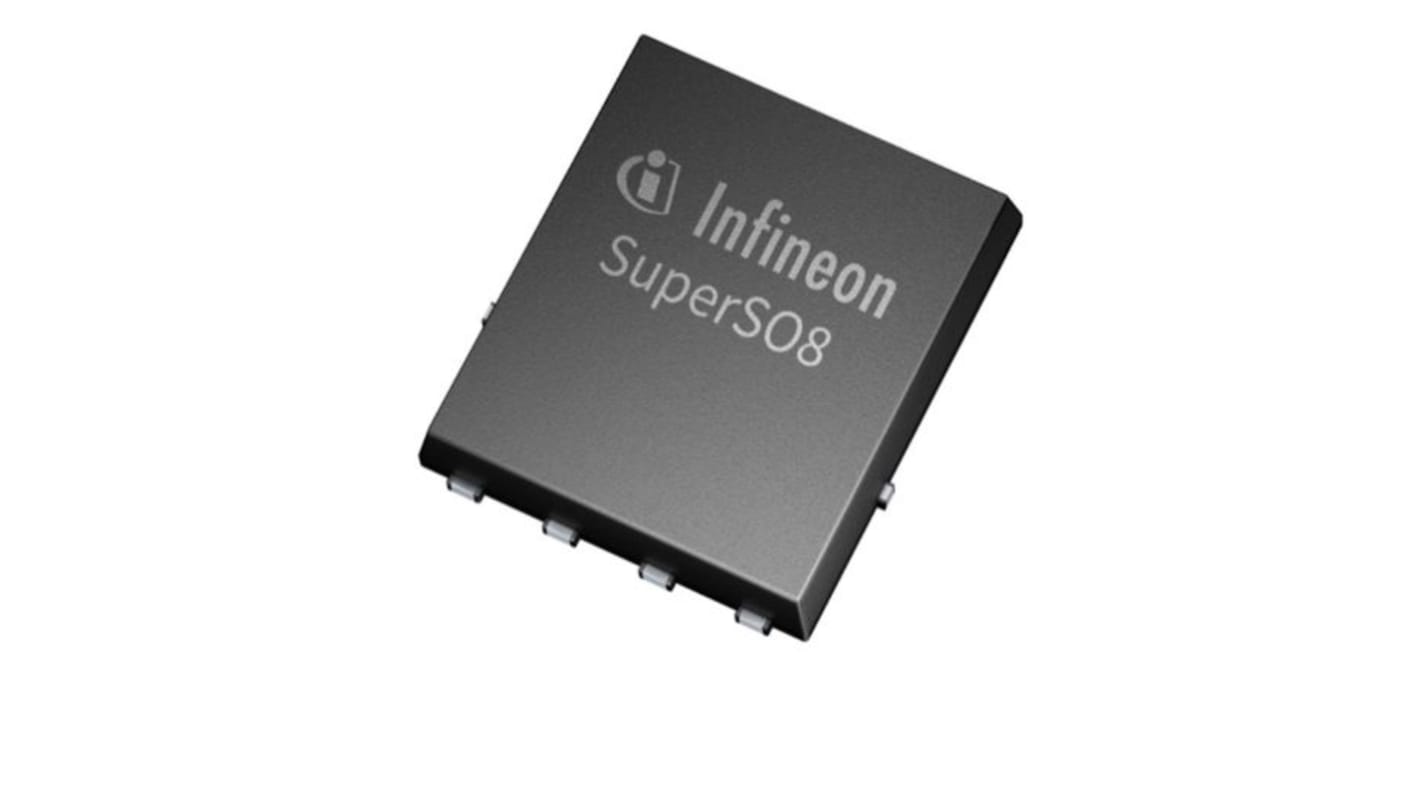

This image is representative of the product range

View all MOSFETs
Bulk discount available

Subtotal (1 pack of 10 units)*

$23.42

(exc. GST)

$25.76

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 30 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 1240$2.342$23.42
1250 - 2490$2.284$22.84
2500 +$2.248$22.48

*price indicative

Packaging Options:
RS Stock No.:
171-1985
Mfr. Part No.:
BSC035N10NS5ATMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Channel Type

Type N

Product Type

MOSFET

Maximum Continuous Drain Current Id

100A

Maximum Drain Source Voltage Vds

100V

Package Type

TDSON

Series

BSC035N10NS5

Mount Type

Surface

Pin Count

8

Maximum Drain Source Resistance Rds

3.5mΩ

Channel Mode

Enhancement

Typical Gate Charge Qg @ Vgs

70nC

Forward Voltage Vf

0.82V

Minimum Operating Temperature

-55°C

Maximum Gate Source Voltage Vgs

20 V

Maximum Power Dissipation Pd

156W

Maximum Operating Temperature

150°C

Standards/Approvals

No

Length

5.49mm

Height

1.1mm

Width

6.35 mm

Automotive Standard

No

The Infineon BSC035N10NS5 is the 100V OptiMOS 5 power MOSFET optimized for synchronous rectification and Ideal for high switching frequency.

Highest system efficiency

Reduced switching and conduction losses

Less paralleling required

Increased power density
