- RS Stock No.:
- 121-6301
- Mfr. Part No.:
- NTA4151PT1G
- Brand:
- onsemi
57400 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (On a Reel of 3000)
$0.121
(exc. GST)
$0.133
(inc. GST)
Units | Per unit | Per Reel* |
---|---|---|
3000 - 3000 | $0.121 | $363.00 |
6000 - 9000 | $0.12 | $360.00 |
12000 + | $0.116 | $348.00 |
*price indicative
- RS Stock No.:
- 121-6301
- Mfr. Part No.:
- NTA4151PT1G
- Brand:
- onsemi
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

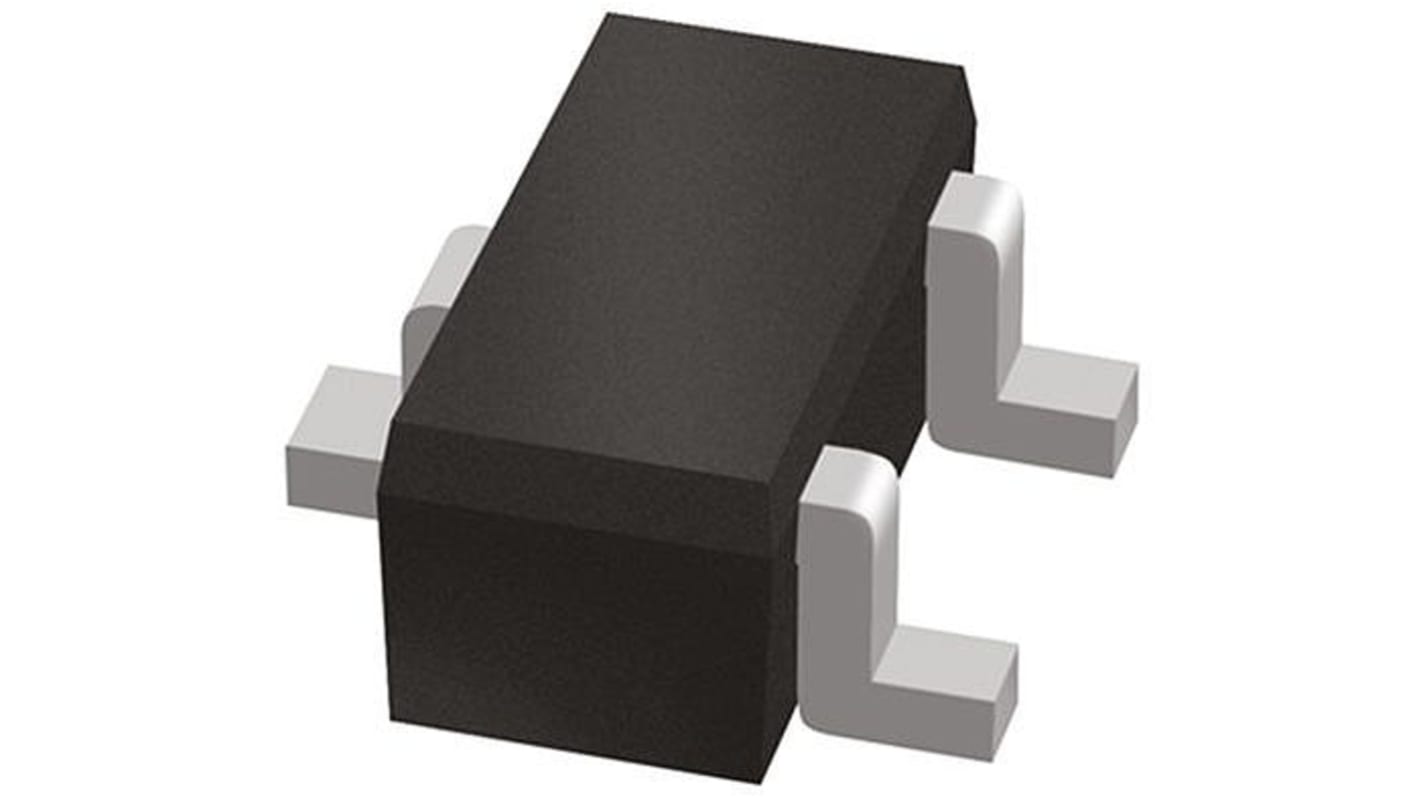

P-Channel Power MOSFET, 20V, ON Semiconductor
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
MOSFET Transistors, ON Semiconductor
Specifications
Attribute | Value |
---|---|
Channel Type | P |
Maximum Continuous Drain Current | 760 mA |
Maximum Drain Source Voltage | 20 V |
Package Type | SC-75 |
Mounting Type | Surface Mount |
Pin Count | 3 |
Maximum Drain Source Resistance | 1 Ω |
Channel Mode | Enhancement |
Maximum Gate Threshold Voltage | 1.2V |
Maximum Power Dissipation | 300 mW |
Transistor Configuration | Single |
Maximum Gate Source Voltage | -6 V, +6 V |
Number of Elements per Chip | 1 |
Width | 0.9mm |
Length | 1.65mm |
Typical Gate Charge @ Vgs | 2.1 nC @ 4.5 V |
Transistor Material | Si |
Maximum Operating Temperature | +150 °C |
Height | 0.8mm |
Minimum Operating Temperature | -55 °C |
