- RS Stock No.:
- 135-5699
- Mfr. Part No.:
- 18125A103FAT2A
- Brand:
- KYOCERA AVX
1590 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Bag of 5)
$8.20
(exc. GST)
$9.02
(inc. GST)
Units | Per unit | Per Bag* |
5 - 245 | $8.20 | $41.00 |
250 - 495 | $7.994 | $39.97 |
500 + | $7.878 | $39.39 |
*price indicative |
- RS Stock No.:
- 135-5699
- Mfr. Part No.:
- 18125A103FAT2A
- Brand:
- KYOCERA AVX
Technical data sheets
Legislation and Compliance
Product Details

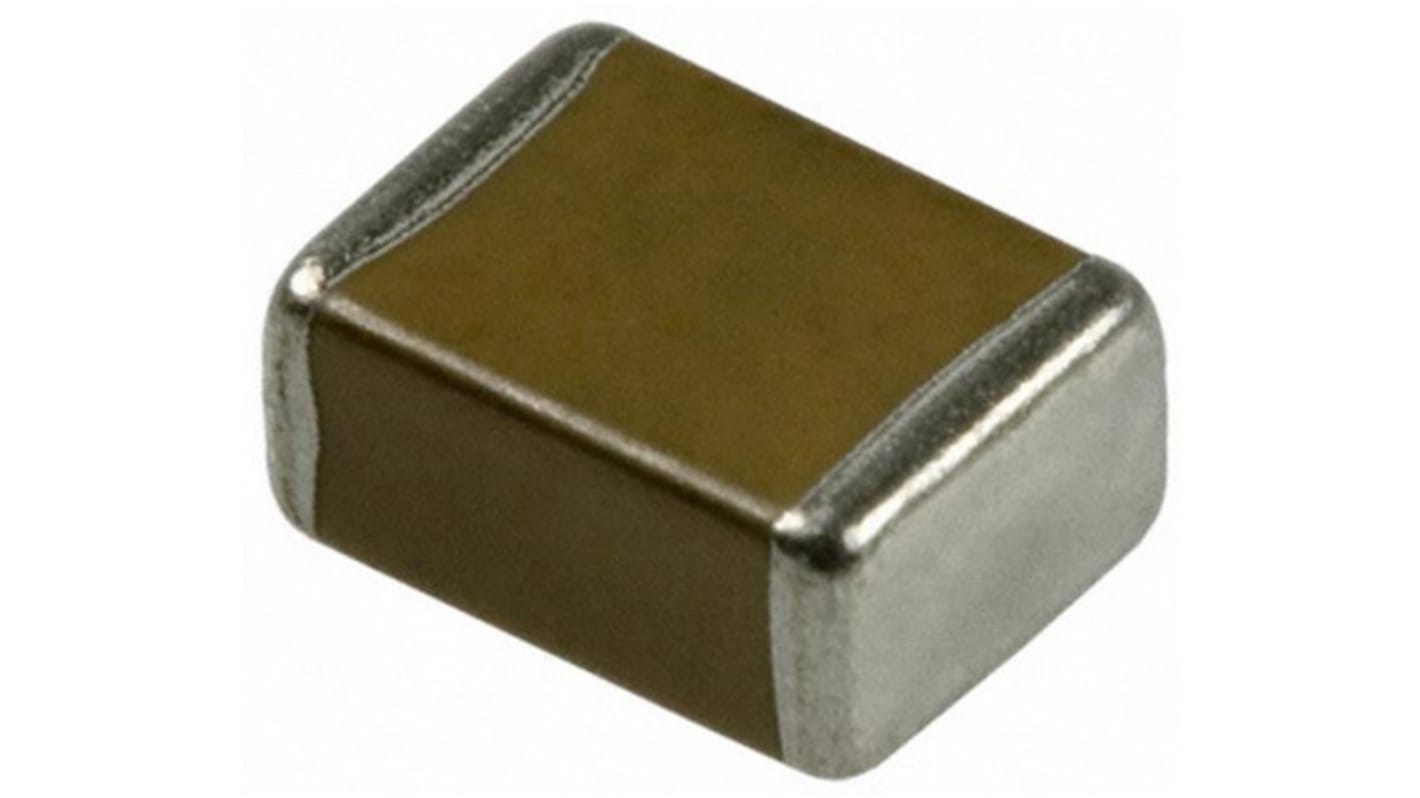

AVX 1812 Series X7R Dielectric Capacitors
AVX X7R dielectric series capacitors are temperature stable capacitors and fall into the EIA Class II materials. Temperature variation of capacitance is within ±15% from -55°C to +125°C. This
Capacitance change is non-linear. X7R dielectric chip usage covers the broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.
Capacitance change is non-linear. X7R dielectric chip usage covers the broad spectrum of industrial applications where known changes in capacitance due to applied voltages are acceptable.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Note
Sorted in order of dielectric, voltage then capacitance.
Specifications
Attribute | Value |
---|---|
Capacitance | 10nF |
Voltage | 50V dc |
Package/Case | 1812 (4532M) |
Mounting Type | Surface Mount |
Tolerance | ±1% |
Dimensions | 4.5 x 3.2 x 1.02mm |
Length | 4.5mm |
Depth | 3.2mm |
Height | 1.02mm |
Minimum Operating Temperature | -55°C |
Maximum Operating Temperature | +125°C |
Terminal Type | Surface Mount |
