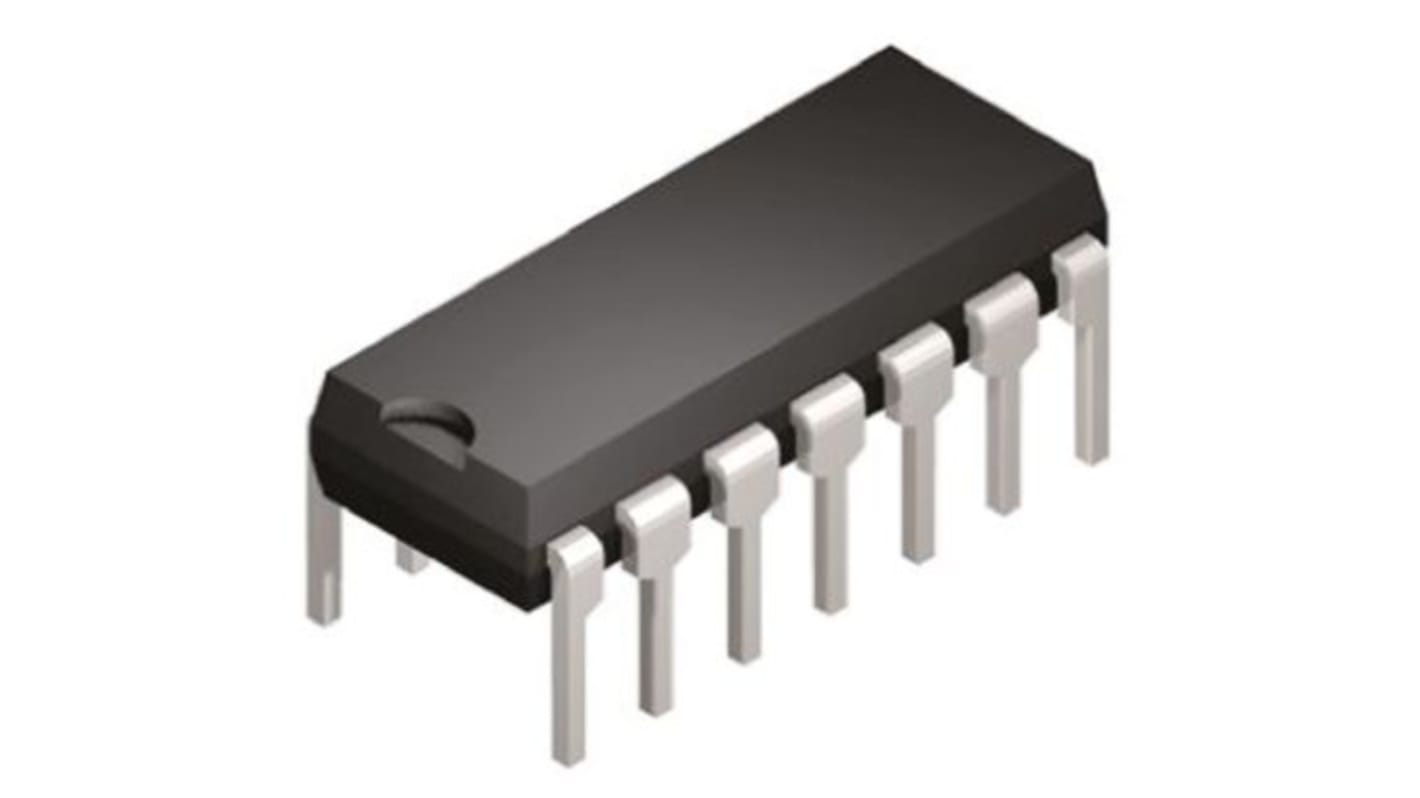

Microchip, 8 bit PIC, PIC16F505 Microcontroller, 20 MHz, 1.5kB FLASH, 14-Pin PDIP

View all Microcontrollers
Bulk discount available

Subtotal (1 tube of 30 units)*

$56.88

(exc. GST)

$62.58

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 150 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
30 - 30$1.896$56.88
60 - 270$1.834$55.02
300 +$1.773$53.19

*price indicative

RS Stock No.:
911-5741
Mfr. Part No.:
PIC16F505-I/P
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

Microcontroller

Series

PIC16F505

Package Type

PDIP

Mount Type

Through Hole

Pin Count

14

Device Core

PIC

Data Bus Width

8bit

Program Memory Size

1.5kB

Interface Type

SPI

Maximum Clock Frequency

20MHz

RAM Size

72bit

Maximum Supply Voltage

5.5V

Maximum Power Dissipation Pd

800mW

Minimum Operating Temperature

-40°C

Number of Programmable I/Os

22

Maximum Operating Temperature

85°C

Height

4.95mm

Width

7.11 mm

Length

19.69mm

Standards/Approvals

RoHS

Minimum Supply Voltage

2V

Instruction Set Architecture

RISC

Program Memory Type

FLASH

Automotive Standard

No

Number of Timers

1

PIC16F505 8-Bit Flash Microcontrollers


Microcontroller Features


20 MHz Max. CPU Speed

33 Instructions

2 Level Hardware Stack

4 MHz Internal Oscillator – Selectable Frequency Range 4 MHz or 8 MHz

12 I/O Pins

Power-On Reset (POR)

Brown-Out Reset (BOR)

Watchdog Timer (WDT)

Device Reset Timer (DRT)

In-Circuit Serial Programming (ICSP)

In-Circuit Debug (ICD)

Peripherals


One 8-bit Timer
