- RS Stock No.:
- 876-6981
- Mfr. Part No.:
- PIC16F506-I/P
- Brand:
- Microchip
On back order for despatch 21/06/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (In a Tube of 30)
$1.678
(exc. GST)
$1.846
(inc. GST)
Units | Per unit | Per Tube* |
30 - 30 | $1.678 | $50.34 |
60 - 270 | $1.623 | $48.69 |
300 + | $1.569 | $47.07 |
*price indicative |
- RS Stock No.:
- 876-6981
- Mfr. Part No.:
- PIC16F506-I/P
- Brand:
- Microchip
Technical data sheets
Legislation and Compliance
Product Details

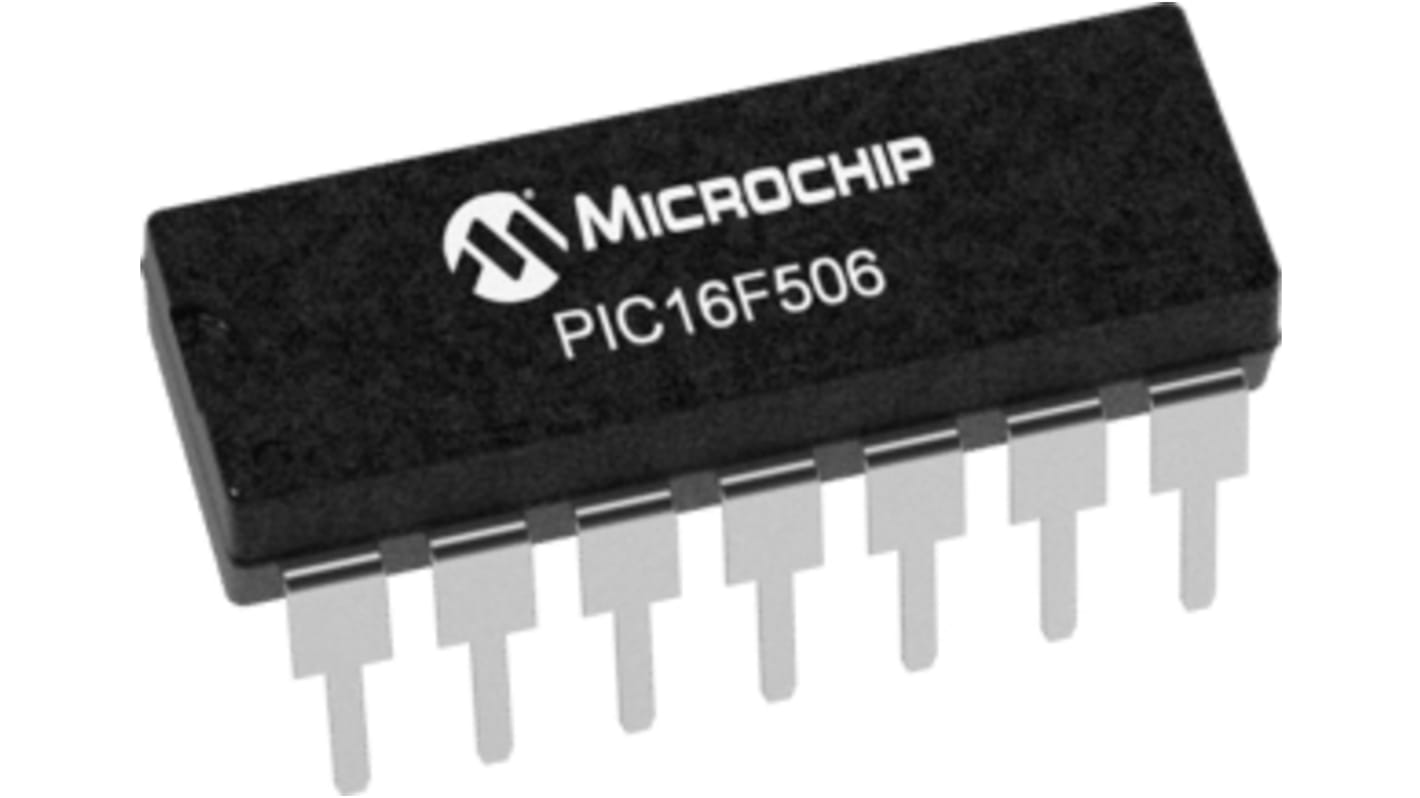

PIC16F506 8-Bit Flash Microcontrollers
The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchips PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F506 family of microcontrollers is based upon Microchips Baseline core with a 2 level deep hardware stack and 33 instructions. These MCUs provide up to 5 MIPS, 1.5 Kbytes program memory and 67 bytes RAM. On board is a configurable oscillator factory calibrated to ±1% accuracy.
The PIC16F506 family of microcontrollers is based upon Microchips Baseline core with a 2 level deep hardware stack and 33 instructions. These MCUs provide up to 5 MIPS, 1.5 Kbytes program memory and 67 bytes RAM. On board is a configurable oscillator factory calibrated to ±1% accuracy.
Microcontroller Features
20 MHz Max. CPU Speed
33 Instructions
2 Level Hardware Stack
4/8 MHz Internal Oscillator
12 I/O Pins
Power-On Reset (POR)
Brown-Out Reset (BOR)
Watchdog Timer (WDT)
Device Reset Timer (DRT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
33 Instructions
2 Level Hardware Stack
4/8 MHz Internal Oscillator
12 I/O Pins
Power-On Reset (POR)
Brown-Out Reset (BOR)
Watchdog Timer (WDT)
Device Reset Timer (DRT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
Peripherals
4 Channel 8-bit Analogue-to-Digital Converter (ADC)
Two Comparators
One 8-bit Timer
Two Comparators
One 8-bit Timer
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Family Name | PIC16F |
Package Type | PDIP |
Mounting Type | Through Hole |
Pin Count | 14 |
Device Core | PIC |
Data Bus Width | 8bit |
Program Memory Size | 1024 words |
Maximum Frequency | 20MHz |
RAM Size | 67 B |
USB Channels | 0 |
Number of SPI Channels | 0 |
Number of UART Channels | 0 |
Number of I2C Channels | 0 |
Typical Operating Supply Voltage | 2 → 5.5 V |
Number of CAN Channels | 0 |
Number of USART Channels | 0 |
Instruction Set Architecture | RISC |
ADCs | 4 x 8 bit |
Length | 19.69mm |
Maximum Operating Temperature | +85 °C |
Dimensions | 0.775 x 0.28 x 0.195in |
Width | 0.28in |
Number of LIN Channels | 0 |
Height | 4.95mm |
Number of PCI Channels | 0 |
Number of Ethernet Channels | 0 |
Program Memory Type | Flash |
Number of ADC Units | 1 |
Minimum Operating Temperature | -40 °C |
Maximum Number of Ethernet Channels | 0 |
