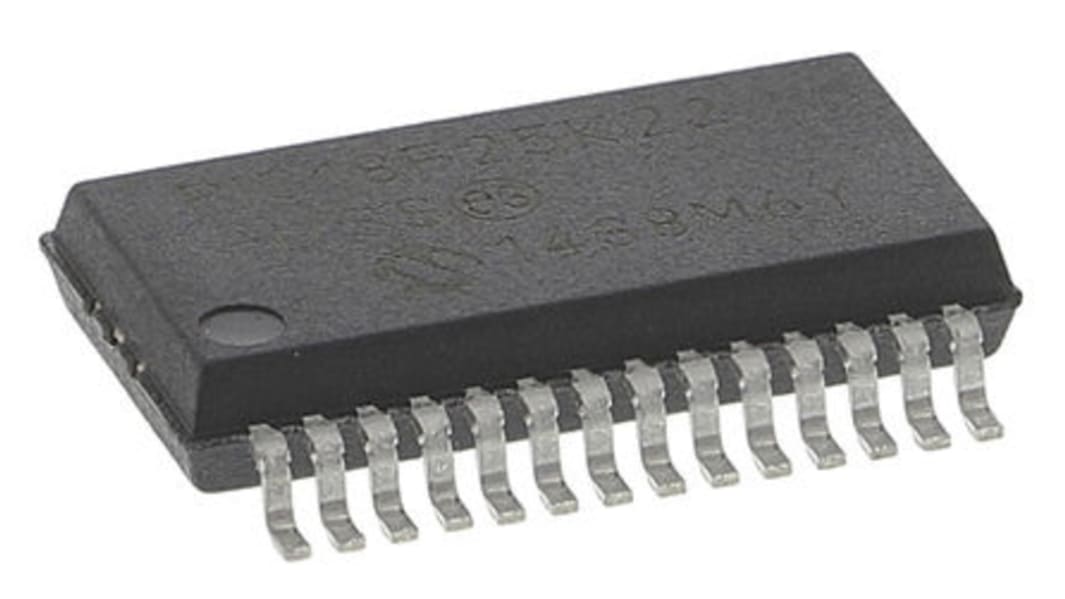

Microchip PIC18F25K22-I/SS, 8bit PIC Microcontroller, PIC18F, 16MHz, 32.768 kB, 256 B Flash, 28-Pin SSOP

RS Stock No.:: 703-7784
Mfr. Part No.:: PIC18F25K22-I/SS
Brand:: Microchip

Technical data sheets

Microchip PIC18F25K22-I/SS, 8bit PIC Microcontroller, PIC18F, 16MHz, 32.768 kB, 256 B Flash, 28-Pin SSOP

View this category

1 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$4.56

(exc. GST)

$5.02

(inc. GST)

Units	Per unit
1 - 11	$4.56
12 - 23	$4.54
24 +	$4.47

RS Stock No.:: 703-7784
Mfr. Part No.:: PIC18F25K22-I/SS
Brand:: Microchip

Attribute	Value
Family Name	PIC18F
Package Type	SSOP
Mounting Type	Surface Mount
Pin Count	28
Device Core	PIC
Data Bus Width	8bit
Program Memory Size	32.768 kB, 256 B
Maximum Frequency	16MHz
RAM Size	1.536 kB
USB Channels	0
Number of PWM Units	5
Number of SPI Channels	2
Number of I2C Channels	2
Number of CAN Channels	0
Typical Operating Supply Voltage	2.3 → 5.5 V
Number of UART Channels	0
Number of USART Channels	2
Number of LIN Channels	0
Dimensions	10.5 x 5.6 x 1.85mm
Minimum Operating Temperature	-40 °C
Height	1.85mm
Number of PCI Channels	0
Pulse Width Modulation	1(ECCP Full Bridge), 2(CCP), 2(ECCP Half Bridge)
Instruction Set Architecture	RISC
ADCs	19 x 10 bit
Width	5.6mm
Number of ADC Units	1
Maximum Operating Temperature	+85 °C
Length	10.5mm
Number of Ethernet Channels	0
Program Memory Type	Flash

Microchip PIC18F25K22-I/SS, 8bit PIC Microcontroller, PIC18F, 16MHz, 32.768 kB, 256 B Flash, 28-Pin SSOP

Technical data sheets

PIC18F2xK22/4xK22 8-Bit Flash Microcontrollers
