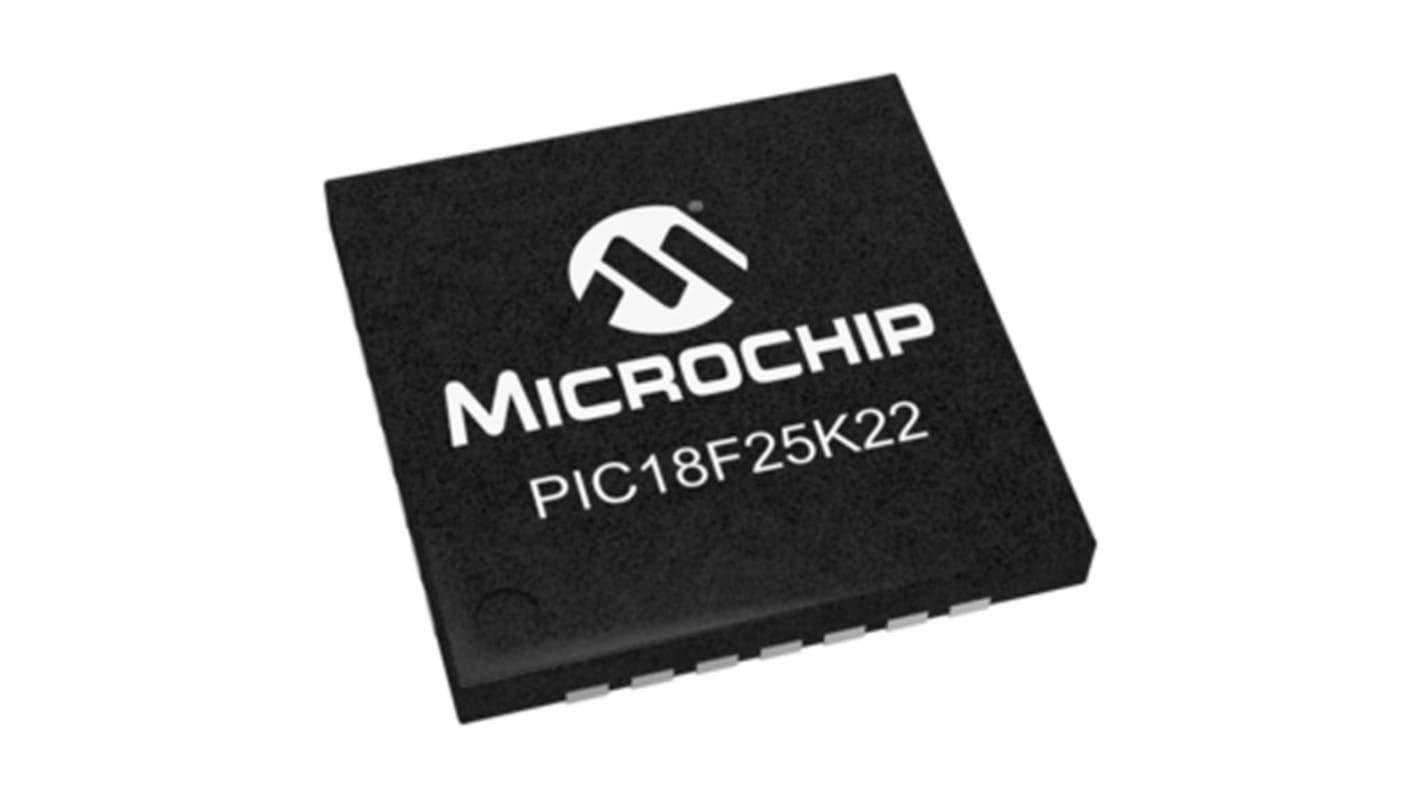

Microchip PIC18F25K22-I/ML, 8bit PIC Microcontroller, PIC18F, 16MHz, 32.768 kB, 256 B Flash, 28-Pin QFN

RS Stock No.:: 703-7781
Mfr. Part No.:: PIC18F25K22-I/ML
Brand:: Microchip

Microchip PIC18F25K22-I/ML, 8bit PIC Microcontroller, PIC18F, 16MHz, 32.768 kB, 256 B Flash, 28-Pin QFN

388 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$4.68

(exc. GST)

$5.15

(inc. GST)

Units	Per unit
1 - 15	$4.68
16 - 30	$4.57
31 +	$4.50

RS Stock No.:: 703-7781
Mfr. Part No.:: PIC18F25K22-I/ML
Brand:: Microchip

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Family Name	PIC18F
Package Type	QFN
Mounting Type	Surface Mount
Pin Count	28
Device Core	PIC
Data Bus Width	8bit
Program Memory Size	32.768 kB, 256 B
Maximum Frequency	16MHz
RAM Size	1.536 kB
USB Channels	0
Number of PWM Units	5
Number of SPI Channels	2
Number of USART Channels	2
Number of UART Channels	0
Number of I2C Channels	2
Typical Operating Supply Voltage	2.3 → 5.5 V
Number of CAN Channels	0
Maximum Operating Temperature	+85 °C
Number of ADC Units	1
Pulse Width Modulation	1(ECCP Full Bridge), 2(CCP), 2(ECCP Half Bridge)
Instruction Set Architecture	RISC
Width	6mm
ADCs	19 x 10 bit
Minimum Operating Temperature	-40 °C
Number of PCI Channels	0
Number of Ethernet Channels	0
Program Memory Type	Flash
Dimensions	6 x 6 x 0.95mm
Number of LIN Channels	0
Height	0.95mm
Length	6mm

Microchip PIC18F25K22-I/ML, 8bit PIC Microcontroller, PIC18F, 16MHz, 32.768 kB, 256 B Flash, 28-Pin QFN

PIC18F2xK22/4xK22 8-Bit Flash Microcontrollers
