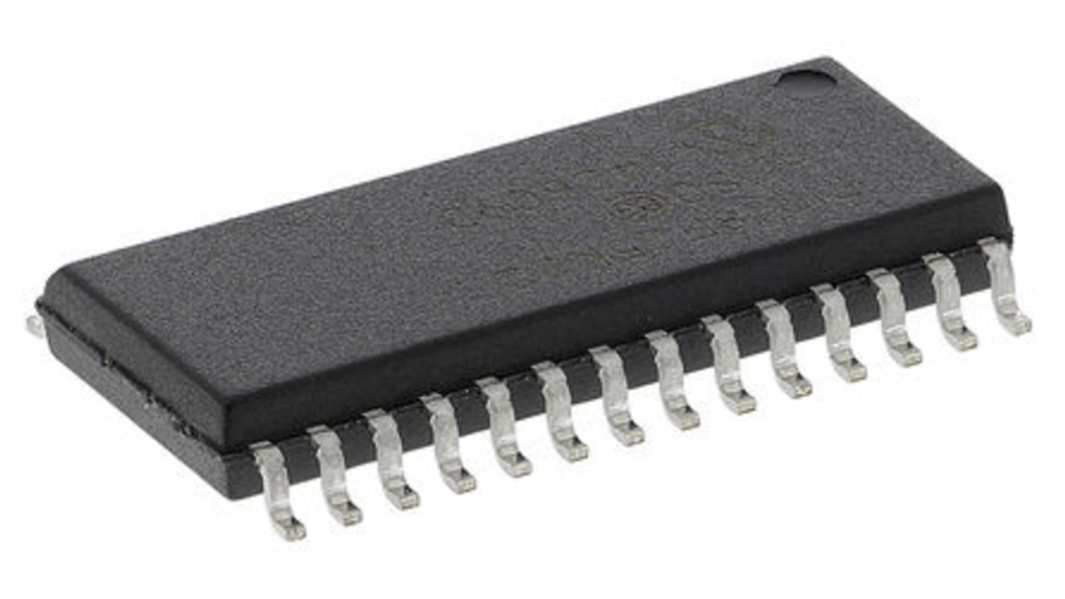

Microchip PIC18F25K22-I/SO, 8bit PIC Microcontroller, PIC18F, 16MHz, 32.768 kB, 256 B Flash, 28-Pin SOIC

RS Stock No.:: 889-5168
Mfr. Part No.:: PIC18F25K22-I/SO
Brand:: Microchip

Microchip PIC18F25K22-I/SO, 8bit PIC Microcontroller, PIC18F, 16MHz, 32.768 kB, 256 B Flash, 28-Pin SOIC

Available for back order.

Price (ex. GST) Each (In a Tube of 27)

$4.229

(exc. GST)

$4.652

(inc. GST)

Units	Per unit	Per Tube*
27 - 27	$4.229	$114.183
54 - 243	$4.09	$110.43
270 +	$3.954	$106.758

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Microchip PIC18F26K22-I/SO, 8bit PIC Microcontroller, PIC18F, 64MHz, 64 kB Flash, 28-Pin SOIC

RS Stock No.: 887-7394

Price (ex. GST) Each (In a Tube of 27)

$4.966

(exc. GST)

$5.463

(inc. GST)

RS Stock No.:: 889-5168
Mfr. Part No.:: PIC18F25K22-I/SO
Brand:: Microchip

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Family Name	PIC18F
Package Type	SOIC
Mounting Type	Surface Mount
Pin Count	28
Device Core	PIC
Data Bus Width	8bit
Program Memory Size	32.768 kB, 256 B
Maximum Frequency	16MHz
RAM Size	1.536 kB
USB Channels	0
Number of PWM Units	5
Number of SPI Channels	2
Number of USART Channels	2
Number of UART Channels	0
Typical Operating Supply Voltage	2.3 → 5.5 V
Number of I2C Channels	2
Number of CAN Channels	0
Number of ADC Units	1
Instruction Set Architecture	RISC
Minimum Operating Temperature	-40 °C
Length	17.9mm
Maximum Operating Temperature	+85 °C
Number of PCI Channels	0
Number of Ethernet Channels	0
Program Memory Type	Flash
Pulse Width Modulation	1 (ECCP Full Bridge), 2 (CCP), 2 (ECCP Half Bridge)
Dimensions	17.9 x 7.5 x 2.35mm
Width	7.5mm
Number of LIN Channels	0
ADCs	19 x 10 bit
Height	2.35mm

Microchip PIC18F25K22-I/SO, 8bit PIC Microcontroller, PIC18F, 16MHz, 32.768 kB, 256 B Flash, 28-Pin SOIC

Alternative

PIC18F2xK22/4xK22 8-Bit Flash Microcontrollers
