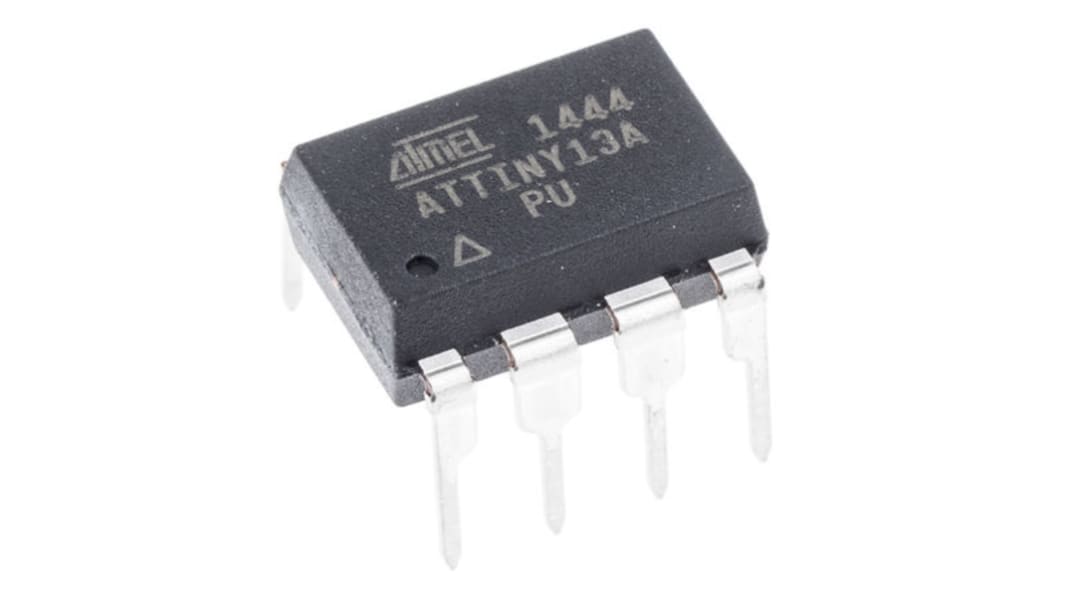

Microchip ATTINY13A-PU, 8bit AVR Microcontroller, ATtiny13, 20MHz, 1 kB Flash, 8-Pin PDIP

RS Stock No.:: 133-0951
Mfr. Part No.:: ATTINY13A-PU
Brand:: Microchip

Microchip ATTINY13A-PU, 8bit AVR Microcontroller, ATtiny13, 20MHz, 1 kB Flash, 8-Pin PDIP

60 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each (In a Pack of 5)

$1.716

(exc. GST)

$1.888

(inc. GST)

Units	Per unit	Per Pack*
5 - 20	$1.716	$8.58
25 - 95	$1.684	$8.42
100 +	$1.612	$8.06

*price indicative

RS Stock No.:: 133-0951
Mfr. Part No.:: ATTINY13A-PU
Brand:: Microchip

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Family Name	ATtiny13
Package Type	PDIP
Mounting Type	Through Hole
Pin Count	8
Device Core	AVR
Data Bus Width	8bit
Program Memory Size	1 kB
Maximum Frequency	20MHz
RAM Size	64 B
USB Channels	0
Number of PWM Units	1
Number of SPI Channels	1
Number of UART Channels	0
Typical Operating Supply Voltage	1.8 → 5.5 V
Number of I2C Channels	0
Number of USART Channels	0
Number of CAN Channels	0
Minimum Operating Temperature	-40 °C
Instruction Set Architecture	RISC
Maximum Number of Ethernet Channels	0
Dimensions	10.16 x 7.112 x 4.826mm
Length	10.16mm
Maximum Operating Temperature	+85 °C
Height	4.826mm
Number of LIN Channels	0
Width	7.112mm
ADCs	4 x 10 bit
Number of ADC Units	1
Program Memory Type	Flash
Number of Ethernet Channels	0
Number of PCI Channels	0
Pulse Width Modulation	1 (2 Channel)

Microchip ATTINY13A-PU, 8bit AVR Microcontroller, ATtiny13, 20MHz, 1 kB Flash, 8-Pin PDIP

8-Bit PicoPower tinyAVR® Microcontrollers
