Honeywell Technologies Pin Plunger Micro Switch, Quick Connect Terminal, 16A, 250 V ac, SPST, IP40
- RS Stock No.:
- 205-9791
- Mfr. Part No.:
- V19T16-EC100
- Brand:
- Honeywell

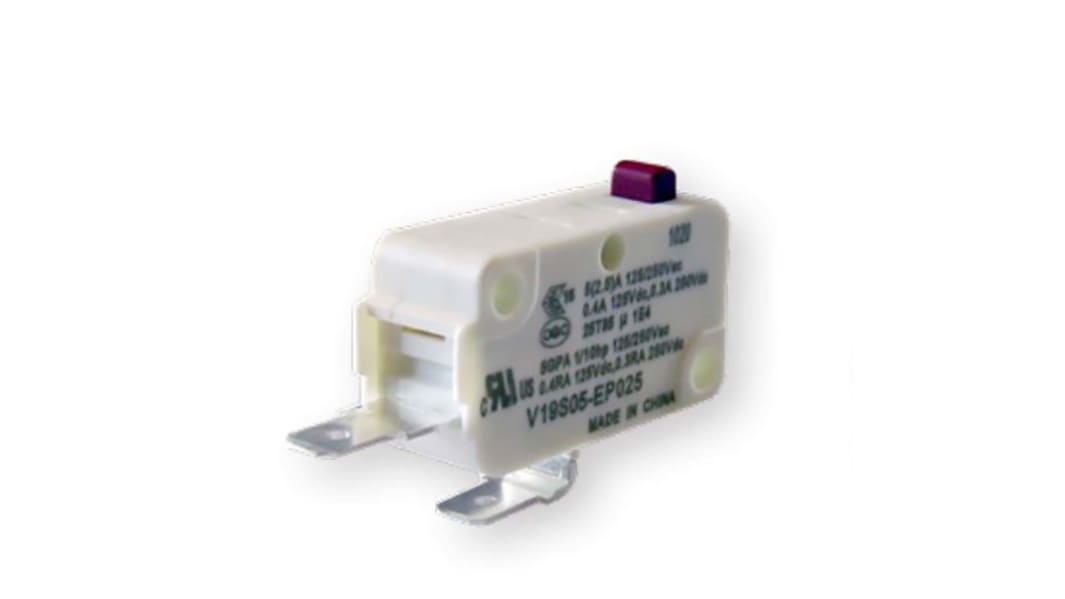

This image is representative of the product range
Add 500 more to save $39.00
View bulk pricing optionsSubtotal (1 box of 250 units)*
$885.75
(exc. GST)
$974.25
(inc. GST)
FREE delivery for orders over $80.00 ex GST
- Shipping from 01 February 2027
Units | Per unit | Per Box* | Saving |
|---|---|---|---|
| 250 - 250 | $3.543 | $885.75 | - |
| 500 - 750 | $3.465 | $866.25 | $39.00 |
| 1000 + | $3.39 | $847.50 | $153.00 |
*price indicative
- RS Stock No.:
- 205-9791
- Mfr. Part No.:
- V19T16-EC100
- Brand:
- Honeywell
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Product Type | Micro Switch | |
| Actuator Type | Pin Plunger | |
| Terminal Type | Quick Connect | |
| Switch Contact Current | 16A | |
| Contact Configuration | SPST | |
| Housing Material | Thermoplastic Polybutylene Terephthalate | |
| IP Rating | IP40 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 125°C | |
| Contact AC Voltage | 250V ac | |
| Microswitch Type | Unsealed | |
| Depth | 15.9mm | |
| Width | 10.3mm | |
| Standards/Approvals | CQC, CSA, cUL, ENEC, RoHS, UL | |
| Hazardous Area Certification | No | |
| Mechanical Life | 60Cycles | |
| Length | 27.8mm | |
| Series | V19 | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Product Type Micro Switch | ||
Actuator Type Pin Plunger | ||
Terminal Type Quick Connect | ||
Switch Contact Current 16A | ||
Contact Configuration SPST | ||
Housing Material Thermoplastic Polybutylene Terephthalate | ||
IP Rating IP40 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 125°C | ||
Contact AC Voltage 250V ac | ||
Microswitch Type Unsealed | ||
Depth 15.9mm | ||
Width 10.3mm | ||
Standards/Approvals CQC, CSA, cUL, ENEC, RoHS, UL | ||
Hazardous Area Certification No | ||
Mechanical Life 60Cycles | ||
Length 27.8mm | ||
Series V19 | ||
- COO (Country of Origin):
- CN
Honeywell V19 Series Micro Switch, 16A Switch Contact Current, 250V ac Contact AC Voltage - V19T16-EC100
Features and Benefits:
• 250V AC rating supports mains-level switching applications
• Pin plunger actuator allows precise mechanical input detection
• Quick-connect terminals reduce installation time and wiring effort
• Thermoplastic PBT housing resists thermal stress to 125°C
Applications
• Ideal for appliance safety interlock detection
• Used with harnesses requiring fast Terminal connections
• Can be used for simple limit-switch tasks on mechanisms
• Suitable for test rigs operating between -25°C and 125°C
What contact arrangement does it use?
What environmental protection level is provided?
What Terminal style is fitted for electrical connection?
How many mechanical switching cycles is it rated for?
What are the housing material and its thermal capability?
