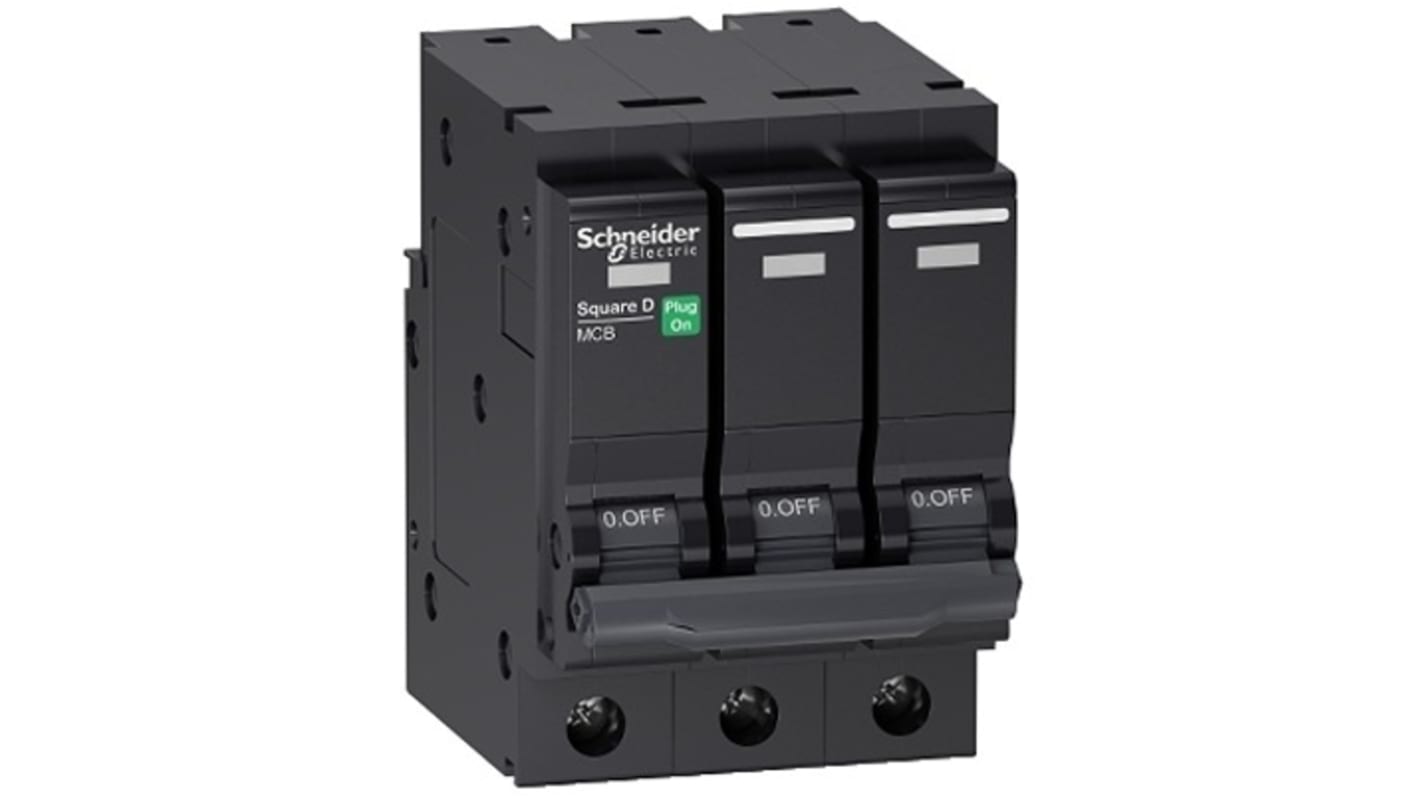

Schneider Electric Square D QO363V Miniature Circuit Breaker, 3-Pole, 63 A, C Curve, 415 V AC, 1000 A Breaking Capacity
- RS Stock No.:
- 244-930
- Mfr. Part No.:
- QO363VSC10
- Brand:
- Schneider Electric
Subtotal (1 unit)*
$538.98
(exc. GST)
$592.88
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- Shipping from 13 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $538.98 |
*price indicative
- RS Stock No.:
- 244-930
- Mfr. Part No.:
- QO363VSC10
- Brand:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 3 | |
| Current Rating | 63 A | |
| Tripping Characteristics | C Curve | |
| Rated AC Voltage | 415 V | |
| Breaking Capacity | 1000A | |
| Range | Square D | |
| Series | QO363V | |
| Terminal Type | Tunnel Type Terminal | |
| IP Rating | IP20 | |
| Width | 56.1 mm | |
| Depth | 86.3mm | |
| Standards/Approvals | EN/IEC 60898-1 | |
| Height | 81mm | |
| Tripping Mechanism | Magnetic | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 3 | ||
Current Rating 63 A | ||
Tripping Characteristics C Curve | ||
Rated AC Voltage 415 V | ||
Breaking Capacity 1000A | ||
Range Square D | ||
Series QO363V | ||
Terminal Type Tunnel Type Terminal | ||
IP Rating IP20 | ||
Width 56.1 mm | ||
Depth 86.3mm | ||
Standards/Approvals EN/IEC 60898-1 | ||
Height 81mm | ||
Tripping Mechanism Magnetic | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TH
The Schneider Electric Low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles and 63A In rated current and C tripping curve. The Icn rated short circuit breaking capacity is up to 10000A at 240VAC or 415VAC conforming to EN/IEC 60898-1 standard. This product is compliant with EN/IEC 60898-1 standard. This miniature circuit breaker protects circuits against short circuit and overload current.
RoHS compliant
Mercury free
