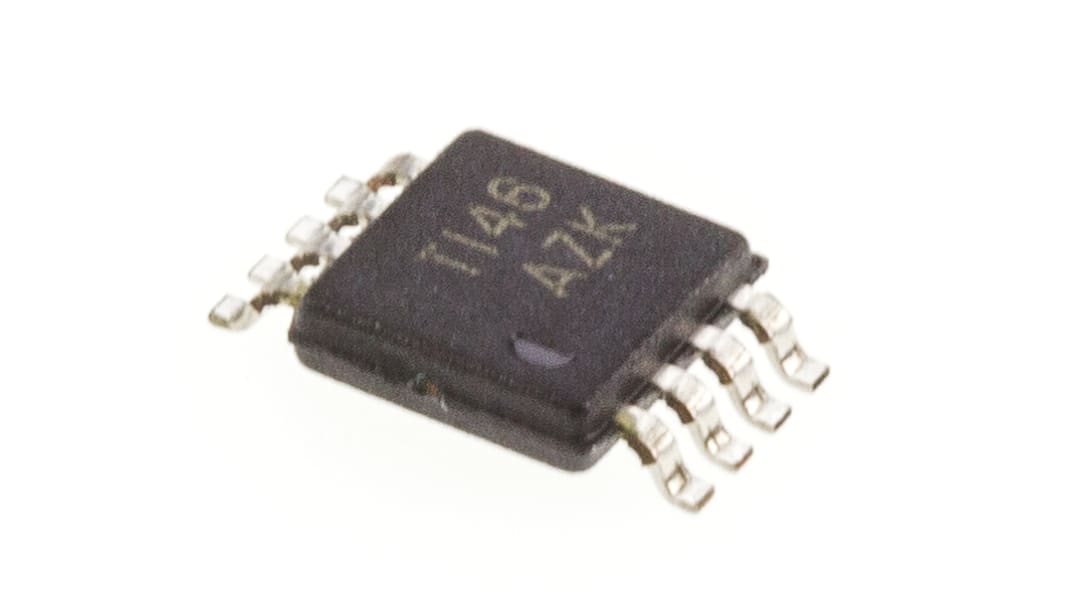

Texas Instruments SN65LVDS100DGK, LVDS Translator & Repeater CML, LVDS, PECL Repeater, Translator, 8-Pin MSOP

RS Stock No.:: 709-2747
Mfr. Part No.:: SN65LVDS100DGK
Brand:: Texas Instruments

Texas Instruments SN65LVDS100DGK, LVDS Translator & Repeater CML, LVDS, PECL Repeater, Translator, 8-Pin MSOP

Bulk discount available

Subtotal (1 unit)**

$9.73

(exc. GST)

$10.70

(inc. GST)

Available for back order.*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Units	Per unit
1 - 19	$9.73
20 - 39	$9.51
40 +	$9.35

**price indicative

Compare

RS Stock No.:: 709-2747
Mfr. Part No.:: SN65LVDS100DGK
Brand:: Texas Instruments

ESD Control Selection Guide V1

Attribute	Value
Number of Drivers	1
Input Type	CML, LVDS, PECL
Output Type	Repeater, Translator
IC Type	Translator & Repeater IC
Transmission Data Rate	2000Mbps
Number of Elements per Chip	1
Mounting Type	Surface Mount
Package Type	MSOP
Pin Count	8
Differential Input High Threshold Voltage	0.1V
Differential Input Low Threshold Voltage	-0.1V
Dimensions	3 x 3 x 0.97mm
Height	0.97mm
Length	3mm
Maximum Operating Supply Voltage	3.6 V
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
Width	3mm
Minimum Operating Supply Voltage	3 V

Texas Instruments SN65LVDS100DGK, LVDS Translator & Repeater CML, LVDS, PECL Repeater, Translator, 8-Pin MSOP

FREE delivery for orders over $60.00 ex GST

LVDS/M-LVDS/ECL/CML, Repeater/Buffer, Texas Instruments
