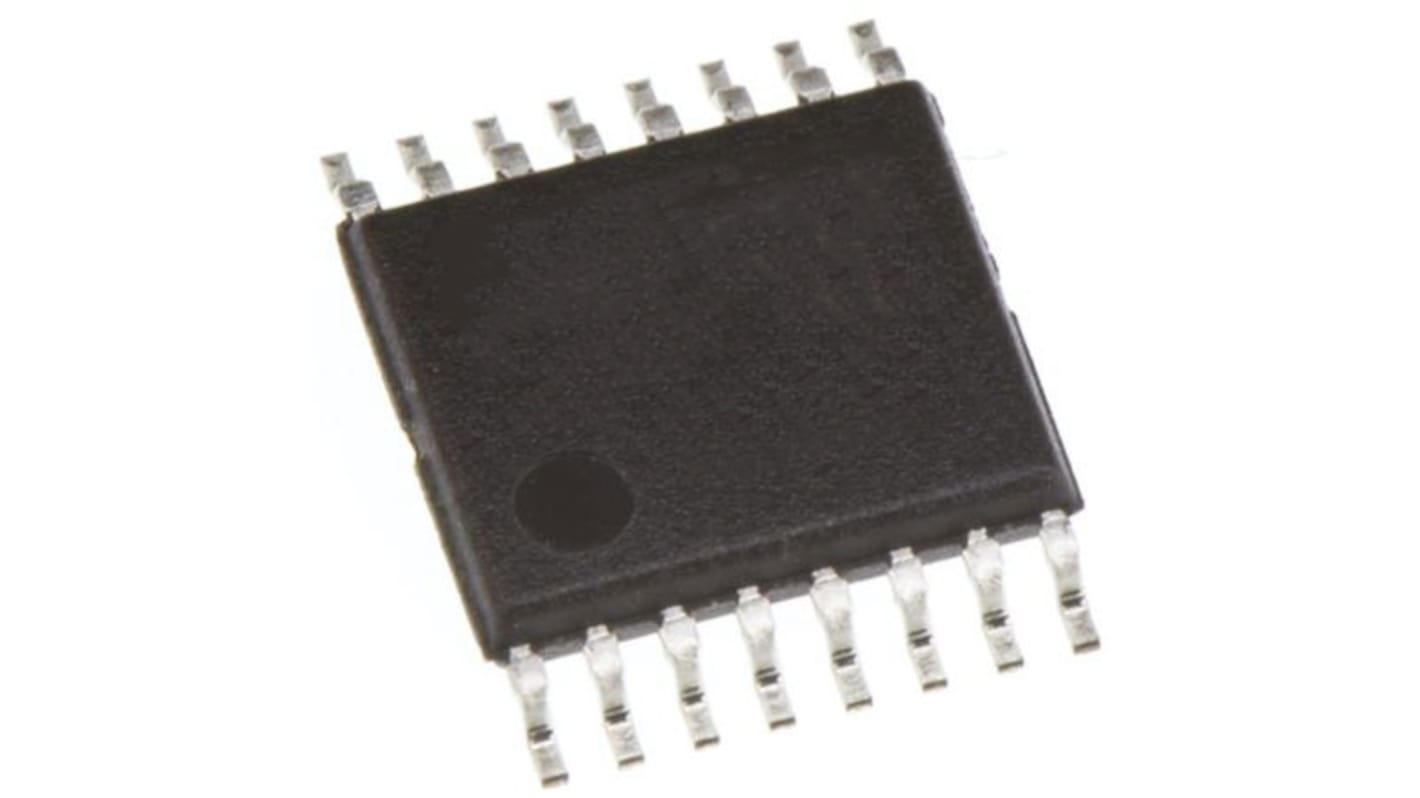

Maxim Integrated, Repeater IC 1 LVDS LVDS, 16-Pin TSSOP
- RS Stock No.:
- 190-6269
- Mfr. Part No.:
- MAX9169EUE+
- Brand:
- Maxim Integrated
This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 190-6269
- Mfr. Part No.:
- MAX9169EUE+
- Brand:
- Maxim Integrated
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Product Type | Repeater IC | |
| Number of Drivers | 1 | |
| Input Type | LVDS | |
| Number of Receivers | 1 | |
| Sub Type | Repeater | |
| Output Type | LVDS | |
| Transmission Data Rate | 630Mbps | |
| Number of Elements per Chip | 3 | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Pin Count | 16 | |
| Minimum Supply Voltage | 2V | |
| Differential Input High Threshold Voltage | 50mV | |
| Differential Input Low Threshold Voltage | -50mV | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| ESD Protection | Yes | |
| Maximum Operating Temperature | 85°C | |
| Height | 0.95mm | |
| Standards/Approvals | No | |
| Series | MAX9169 | |
| Width | 4.5 mm | |
| Length | 5.1mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Product Type Repeater IC | ||
Number of Drivers 1 | ||
Input Type LVDS | ||
Number of Receivers 1 | ||
Sub Type Repeater | ||
Output Type LVDS | ||
Transmission Data Rate 630Mbps | ||
Number of Elements per Chip 3 | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Pin Count 16 | ||
Minimum Supply Voltage 2V | ||
Differential Input High Threshold Voltage 50mV | ||
Differential Input Low Threshold Voltage -50mV | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
ESD Protection Yes | ||
Maximum Operating Temperature 85°C | ||
Height 0.95mm | ||
Standards/Approvals No | ||
Series MAX9169 | ||
Width 4.5 mm | ||
Length 5.1mm | ||
Automotive Standard No | ||
150ps (max) Pulse Skew
200psP-P (max) Added Deterministic Jitter at 630Mbps (223 - 1) PRBS Pattern
8psRMS (max) Added Random Jitter
120ps (max) Channel-to-Channel Skew
630Mbps Data Rate
30mA (max) (MAX9169), 25mA (max) (MAX9170) Supply Current, a 15% Improvement vs. Competition
LVDS (MAX9169) or +5V Tolerant LVTTL/LVCMOS (MAX9170) Input Versions
Fail-Safe Circuit Sets Output High for Undriven Differential Input
Output Rated for 10pF Load
Individual Output Enables
Single 3.3V Supply
Improved Second Source of the SN65LVDS104 (MAX9169)/SN65LVDS105 (MAX9170)
16-Pin SO and TSSOP Packages
Applications
Add/Drop Multiplexers
Backplane Interconnect
Cell Phone Base Stations
Clock Distribution
Digital Cross-Connects
Network Routers and Switches
Point-to-Point Baseband Data Transmission
