Crouzet Plunger Limit Switch, NO/NC, IP66, IP67, Metal Housing, 30V ac Max, 100mA Max

RS Stock No.:: 539-321
Mfr. Part No.:: 83874301
Brand:: Crouzet

Crouzet Plunger Limit Switch, NO/NC, IP66, IP67, Metal Housing, 30V ac Max, 100mA Max

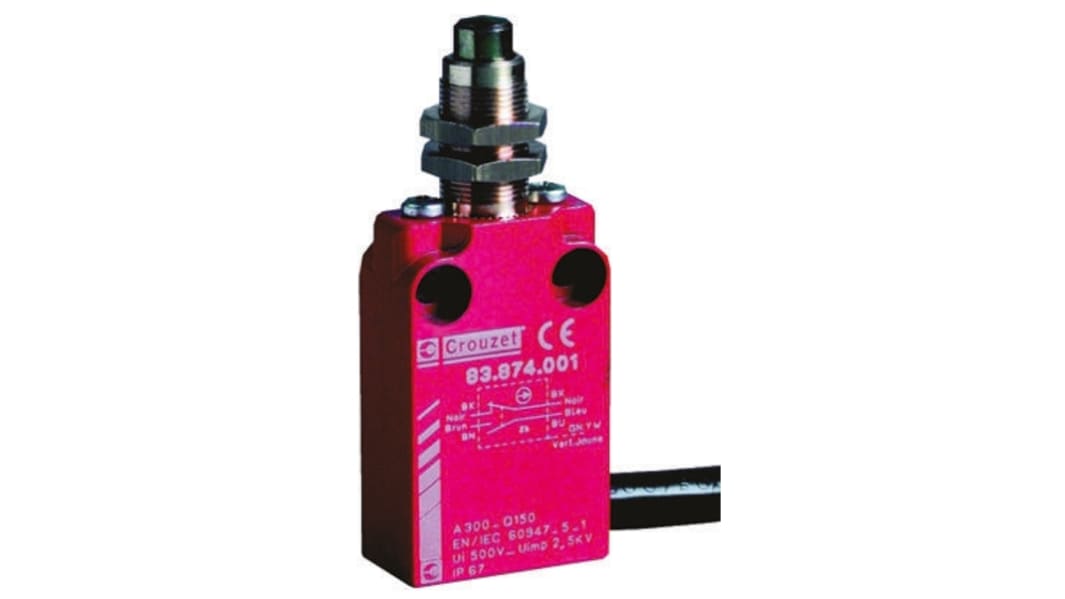

This image is representative of the product range

4 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$237.08

(exc. GST)

$260.79

(inc. GST)

Units	Per unit
1 - 5	$237.08
6 - 11	$233.09
12 +	$228.21

RS Stock No.:: 539-321
Mfr. Part No.:: 83874301
Brand:: Crouzet

Technical data sheets

83 870/876 Compact Limit Switch Data Sheet

Legislation and Compliance

Product Details

Compact Limit Switch with Low Level Cable Output Short Travel Series

Short travel series of Limit Switches, metal cased limit switches complete with fitted 5 core 0.75mm² 7.3mm ext. dia.cable, four terminal double break two-way contact elements.The 2 moving contacts are electrically isolated from one another.

Impulse voltage 2500V
Insulation voltage 250V
Operating voltage 4 to 30V
Operating current 1 to 100mA
1 metre cable length
Temperature range -25 to +70 deg C
20mm pitch mounting holes
IP66/67

Note

Dimensions refer to limit switch body only.

Approvals

UL508

Telemecanique, Square D & Crouzet

Specifications

Attribute	Value
Actuator Type	Plunger
Normal State Configuration	NO/NC
IP Rating	IP66, IP67
Maximum Current	100mA
Housing Material	Metal
Maximum AC Voltage	30V
Maximum DC Voltage	30V
Connection Type	Cable
Action Type	Snap Action
Length	49mm
Minimum Operating Temperature	-25°C
Depth	16mm
Width	30mm
Maximum Operating Temperature	+70°C
Mechanical Life	10000000Cycles
