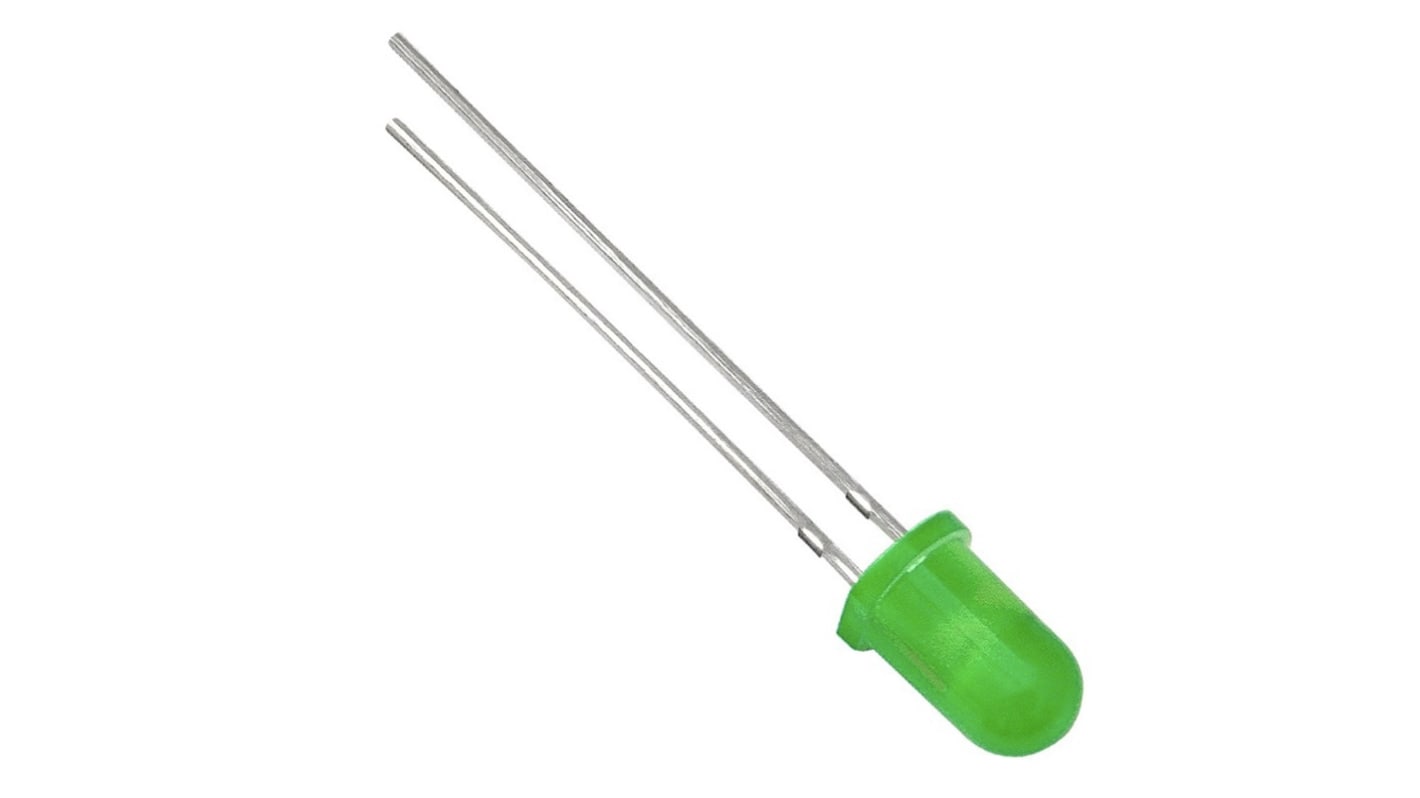

5 V Green LED 5mm Through Hole, Kingbright L-7113GD-5V

  • RS Stock No. 165-1594
  • Mfr. Part No. L-7113GD-5V
  • Manufacturer Kingbright
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Kingbright Through Hole Resistor LED Series

The resistor LED lamps, from Kingbright, are available in 3mm and 5mm package options. The LEDs have an integral current limiting resistor. The resistor LEDs do not require an external current limiter with 12 volt supply. This allows the resistor LEDs to be a cost effective solution, saving valuable space and eliminating the additional cost for a resistor. There are a variety of colour options available in the resistor range, with a wide viewing angle of 60°.

Visible Light LEDs, Kingbright

Specifications
Attribute Value
LED Colours Green
Package Type 5mm (T-1 3/4)
Mounting Type Through Hole
Number of LEDs 1
Forward Voltage 5 V
Luminous Intensity 25 mcd
Number of Pins 2
Viewing Angle 30 °
Lens Shape Round
Dominant Wavelength 568 nm
Dimensions 5 (Dia.) x 8.6mm
Lens Colour Green
13000 In stock for delivery within 7 working day(s) (Global Stock)
Price (ex. GST) Each (In a Bag of 500)
$ 0.317
(exc. GST)
$ 0.349
(inc. GST)
units
Per unit
Per Bag*
500 +
$0.317
$158.50
*price indicative
