1216.1001 MENTOR PCB Mounted Flexible LED Light Pipe, Clear Round Lens

  • RS Stock No. 879-6497
  • Mfr. Part No. 1216.1001
  • Manufacturer Mentor GmbH
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Flexible Light Guides for SMD LEDs

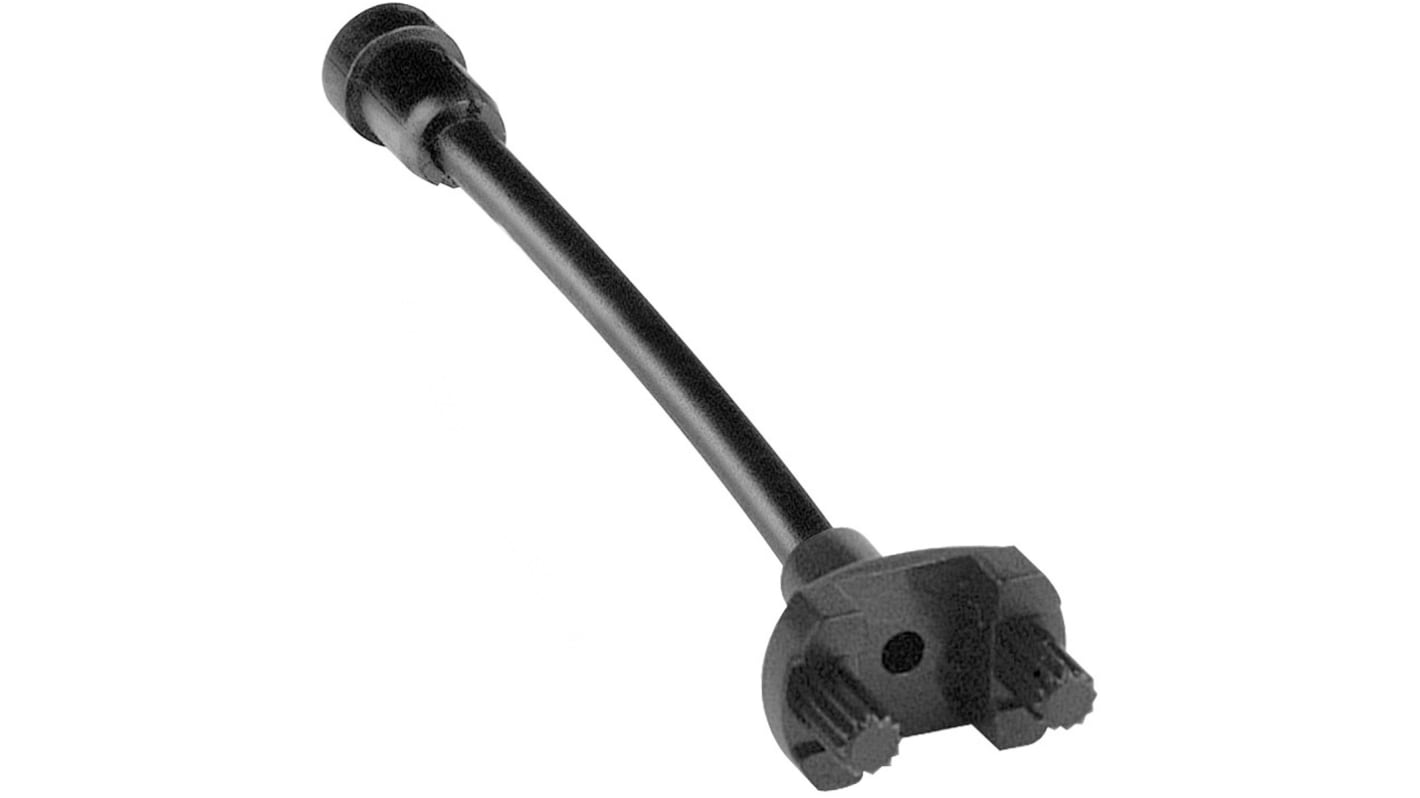

This family of flexible light pipes, from MENTOR, consist of a housing, light pipe and lens. Flexible light pipes offer an alternative to rigid light pipes where flexibility in design is required. They can be mounted to the PCB for use as a horizontal or vertical light guide. Available in a range of length options, the flexible light pipes have a round head. The pipes are fixed onto a PCB by two press-in lugs in the housing, offering an easy set-up process.
Flexible light pipes are designed for use with surface mount (SMD) TOPLED LEDs. The light pipe inject face sits in close proximity to the LED on the board.

Features of the flexible light guides:
Round heads
Lens: PC clear UL94
Light pipe: PMMA
Housing: PC black UL94
Ambient temperature: -40°C to +85°C

LED Light Pipes, MENTOR - Flexible

MENTOR light guides are designed to transmit light from a PCB-mounted LED to the desired user interface. This transfer is completed with little or no loss of luminance and no light bleed between adjacent elements.
The flexible LEDs push-fit into a plastic housing which is mounted onto the PCB. They have a round head shape in a range of diameters.

Specifications
Attribute Value
Flexible/Rigid Flexible
Orientation Straight
Length 150mm
Dimensions 150 x 11 x 7mm
Mounting Type PCB Mounted
Lens Shape Round
Number of Ways 1
Rows 1
Columns 1
LED Included No
Lens Colour Clear
Configuration Rows x Columns 1 x 1
Outer Diameter 5mm
195 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each (In a Pack of 5)
$ 2.80
(exc. GST)
$ 3.08
(inc. GST)
units
Per unit
Per Pack*
5 - 20
$2.80
$14.00
25 - 95
$2.656
$13.28
100 - 245
$2.286
$11.43
250 - 495
$2.046
$10.23
500 +
$1.788
$8.94
*price indicative
