Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ROHM
	Output Current	50mA
	Input Voltage	3 → 5.5 V
	AC or DC Input Voltage	dc
	Application	Instrument Cluster, LED Status Indicators, Instrument Backlighting, LED Interior Illumination
	Package Type	VQFN
	Number of Pins	48
	Maximum Output Voltage	20V
	Current Rating	5mA
	Power Dissipation	4.09 W, 5.2W
	Automotive Standard	AEC-Q100

	Select all
	Brand ROHM
	Output Current 50mA
	Input Voltage 3 → 5.5 V
	AC or DC Input Voltage dc
	Application Instrument Cluster, LED Status Indicators, Instrument Backlighting, LED Interior Illumination
	Package Type VQFN
	Number of Pins 48
	Maximum Output Voltage 20V
	Current Rating 5mA
	Power Dissipation 4.09 W, 5.2W
	Automotive Standard AEC-Q100

Datasheet BD2808MUV-ME2

COO (Country of Origin):: JP

BD2808MUV-M is 24ch Constant current sink LED Driver with a high output voltage capability. This device is optimized for driving RGB LEDs featuring a 6bit Current DAC for each colour. 8bit PWM control is integrated for each channel. Small VQFN48MCV070 package.

2-Line Serial Control + Enable Signal
VQFN48 Package
24 channel constant current LED driver
(max 50mA / channel)
Independent PWM control for each channel
6 bit current DAC for RGB
Protection features
Equipped with PWM phase shift function to reduce EM

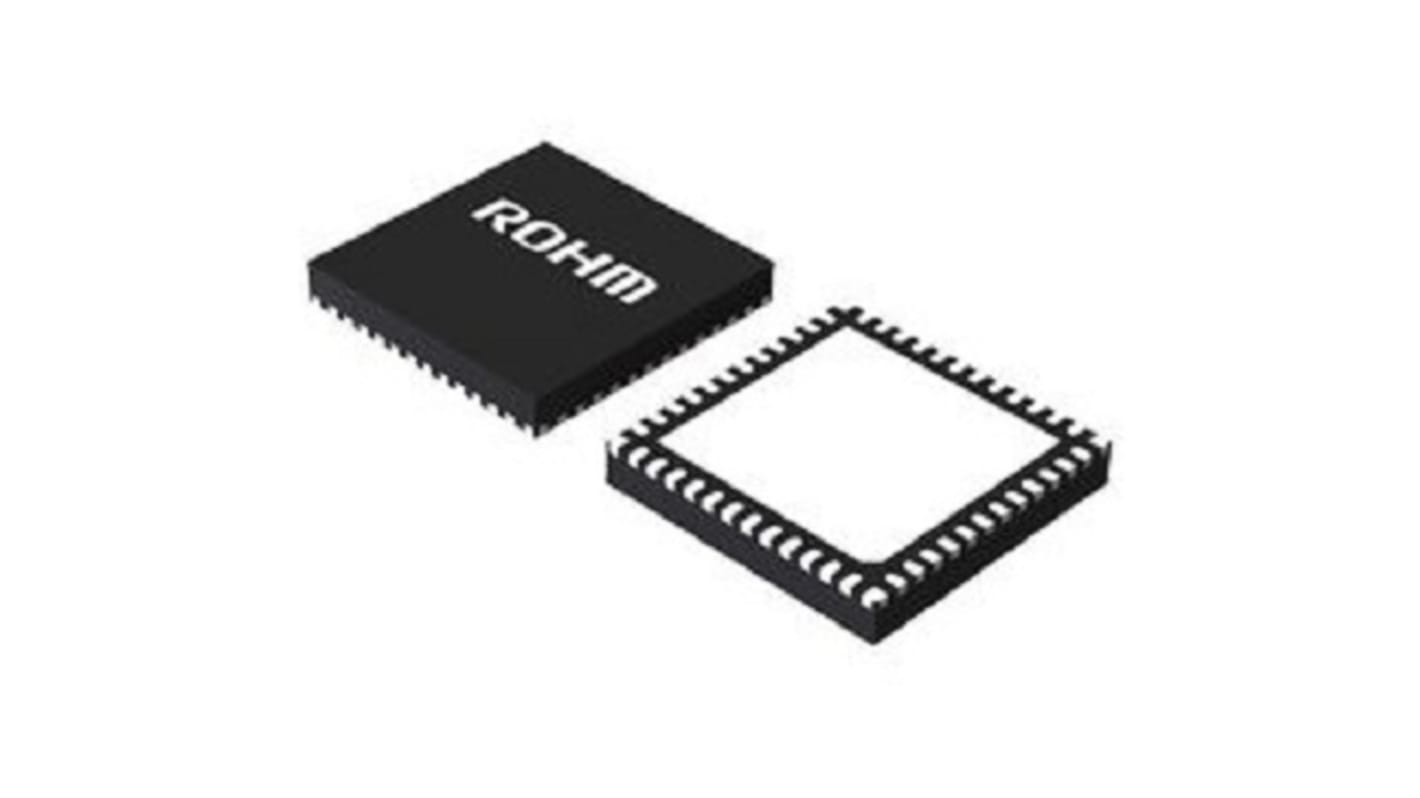

ROHM BD2808MUV-ME2 LED Driver IC, 3 → 5.5 V 50mA 48-Pin VQFN
