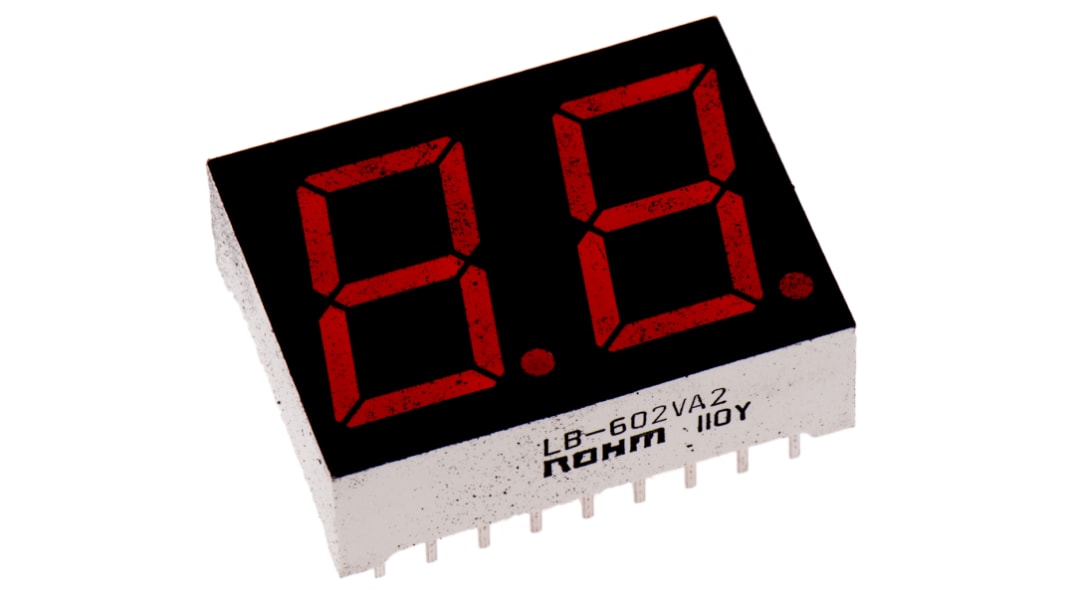

LB-602VA2 ROHM 2 7 Segment LED Display Anode Red 16mcd Right Side 14.2 mm
- RS Stock No.:
- 249-7816
- Mfr. Part No.:
- LB-602VA2
- Brand:
- ROHM
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
$8.28
(exc. GST)
$9.11
(inc. GST)
FREE delivery for orders over $80.00 ex GST
Last RS stock
- Final 6 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 49 | $8.28 |
| 50 - 99 | $8.06 |
| 100 - 249 | $7.72 |
| 250 + | $7.50 |
*price indicative
- RS Stock No.:
- 249-7816
- Mfr. Part No.:
- LB-602VA2
- Brand:
- ROHM
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Display Type | 7 Segment | |
| Product Type | LED Display | |
| Number of Characters | 2 | |
| LED Colour | Red | |
| Number of Segments | 7 | |
| Dominant Wavelength | 650nm | |
| Character Width | 8mm | |
| Character Height | 14.2mm | |
| Common Connection | Anode | |
| Mount Type | Through Hole | |
| External Depth | 8mm | |
| External Height | 19mm | |
| External Width | 25mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 75°C | |
| Luminous Intensity | 16mcd | |
| Colour of Face | Black | |
| Standards/Approvals | RoHS | |
| Forward Voltage | 2V | |
| Power Dissipation | 960mW | |
| Forward Current | 20mA | |
| Decimal Orientation | Right Side | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Display Type 7 Segment | ||
Product Type LED Display | ||
Number of Characters 2 | ||
LED Colour Red | ||
Number of Segments 7 | ||
Dominant Wavelength 650nm | ||
Character Width 8mm | ||
Character Height 14.2mm | ||
Common Connection Anode | ||
Mount Type Through Hole | ||
External Depth 8mm | ||
External Height 19mm | ||
External Width 25mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 75°C | ||
Luminous Intensity 16mcd | ||
Colour of Face Black | ||
Standards/Approvals RoHS | ||
Forward Voltage 2V | ||
Power Dissipation 960mW | ||
Forward Current 20mA | ||
Decimal Orientation Right Side | ||
7-Segment LED Displays LB602 Series, ROHM
2 digit LED numeric displays with a black background for high contrast.
7-Sement Displays
Note
B13
