Schneider Electric 4-Axis Joystick Lever Spring Return, IP66, 600 V ac, 220mA

RS Stock No.:: 609-9876
Distrelec Article No.:: 303-02-583
Mfr. Part No.:: XD4PA24
Brand:: Schneider Electric

Schneider Electric 4-Axis Joystick Lever Spring Return, IP66, 600 V ac, 220mA

Subtotal (1 unit)*

$664.70

(exc. GST)

$731.17

(inc. GST)

FREE delivery for orders over $80.00 ex GST

In Stock

7 unit(s) ready to ship
Plus 76 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	$664.70

*price indicative

Our Better World range features products that make it easy for you to make a greener product choice you can trust.

Click here to find out more.

RS Stock No.:: 609-9876
Distrelec Article No.:: 303-02-583
Mfr. Part No.:: XD4PA24
Brand:: Schneider Electric

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	Joystick
	Number of Axes	4
	Series	Harmony XD4
	Switch Technology	Spring Return
	IP Rating	IP66
	Handle Type	Lever
	Contact AC Voltage	600V ac
	Switch Contact Current	220mA
	Contact Configuration	SPST
	Contact Material	Silver Nickel Alloy
	Terminal Type	Screw
	Mechanical Life	1000000Cycles
	Standards/Approvals	RoHS
	Better World Product	Yes
	Better World Claim	Repairable by the End User
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C

	Select all
	Brand Schneider Electric
	Product Type Joystick
	Number of Axes 4
	Series Harmony XD4
	Switch Technology Spring Return
	IP Rating IP66
	Handle Type Lever
	Contact AC Voltage 600V ac
	Switch Contact Current 220mA
	Contact Configuration SPST
	Contact Material Silver Nickel Alloy
	Terminal Type Screw
	Mechanical Life 1000000Cycles
	Standards/Approvals RoHS
	Better World Product Yes
	Better World Claim Repairable by the End User
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C

COO (Country of Origin):: FR

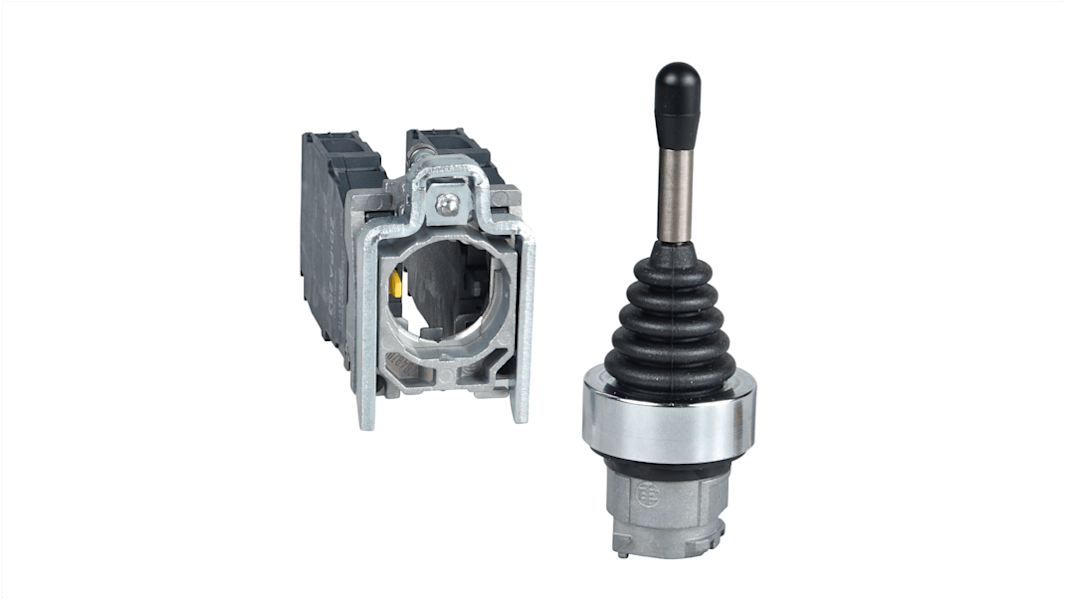

Schneider Electric Harmony XD4 Series Joystick Switch, 4 Axes Number, IP66 - XD4PA24

This joystick switch is a four-axis controller designed for precision and versatility in various industrial applications. Built with a durable spring return mechanism, it offers a reliable user experience. The device features a mounting diameter of 22mm and operates effectively across a temperature range of -25°C to +70°C. With an IP66 rating, it ensures protection against dust and high-pressure water jets, making it suitable for demanding environments.

Features & Benefits

• Provides precise control across four directions for versatile operation

• Spring return mechanism ensures quick return to the neutral position

• Rated IP66 for effective protection against dust and moisture

• Designed for high-voltage applications with a 600V rating

• Durable construction guarantees up to 1,000,000 mechanical cycles

• Compact design allows for easy integration into various panels

Applications

• Used in industrial machinery for precise control functions

• Suitable for automation control panels in manufacturing settings

• Ideal for electrical control systems needing reliable user input

• Applicable in construction machinery for directional controls

What makes this joystick switch suitable for high-voltage applications?

The switch has a contact voltage rating of 600V and a robust design capable of handling high electrical loads, ensuring safe and efficient operation in demanding conditions.

How does the mechanical durability of the joystick switch enhance its usability?

With a mechanical life of 1,000,000 cycles, it provides longevity and reliability, reducing maintenance costs and downtime in operational environments.

What is the significance of the IP66 rating for this device?

The IP66 rating signifies it is dust-tight and resistant to powerful water jets, making it an appropriate choice for outdoor or industrial environments where exposure to harsh elements is expected.

Can this joystick switch be mounted in tight spaces?

Yes, with a mounting diameter of 22mm, it is designed to fit into compact areas while maintaining usability and functionality.

How does the spring return mechanism benefit the user?

The spring return feature ensures that the joystick returns to the neutral position automatically, allowing for easier control and operation without the need for constant manual adjustment.
