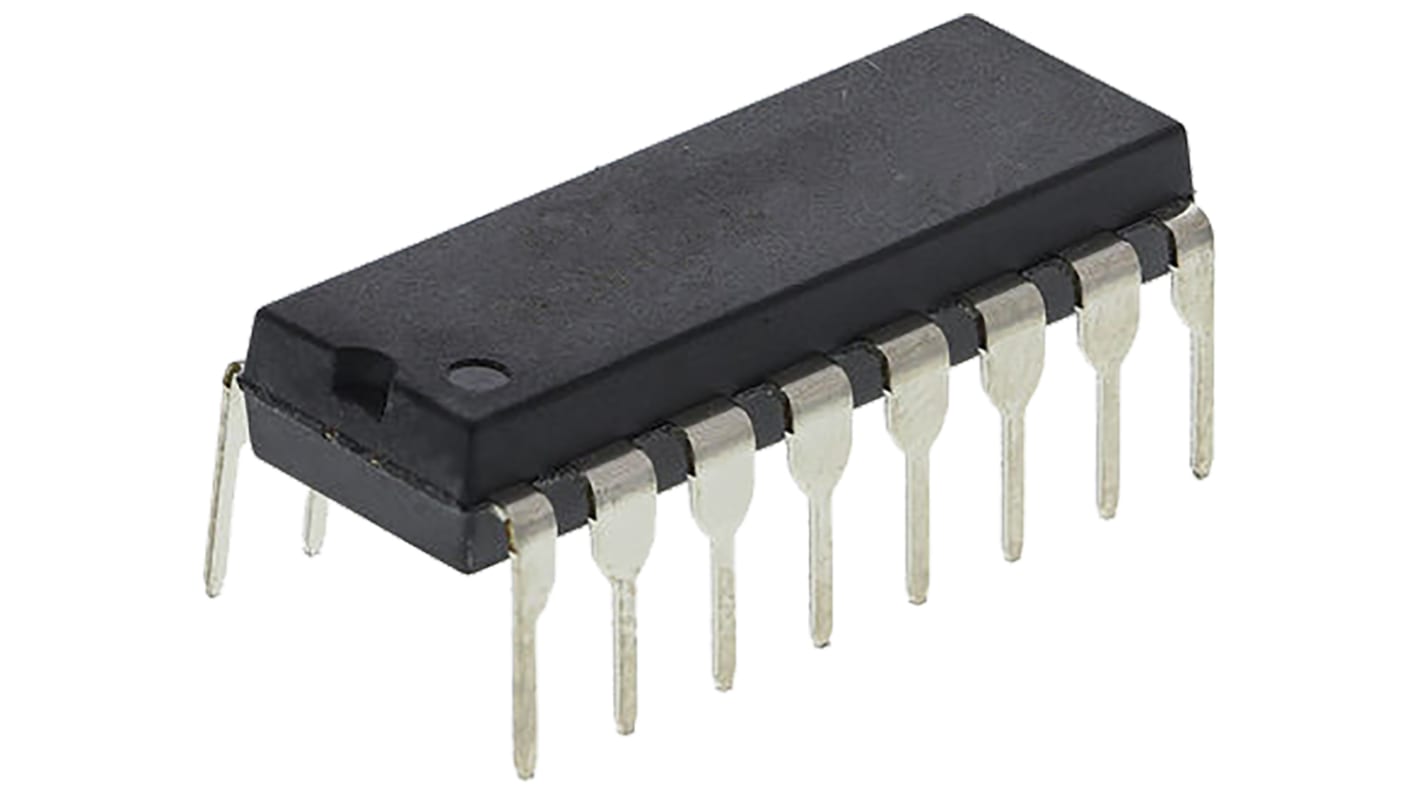

PGA204BP Texas Instruments, Instrumentation Amplifier, 16-Pin PDIP

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Programmable Gain Amplifiers (PGA), Texas Instruments

Programmable Gain Amplifiers (PGA)

Programmable Gain Amplifiers are Operational, Instrumentation or Differential Amplifiers in which the gain can be programmed or selected, either via hardware (IC pin selection) or software using a serial communications link.

Specifications
Attribute Value
Power Supply Type Dual
Package Type PDIP
Mounting Type Through Hole
Pin Count 16
Typical Dual Supply Voltage ±15V
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +85 °C
Maximum Input Resistance 10GΩ
Minimum CMRR 80dB
Maximum Supply Current 7.5 mA
Height 4.57mm
Width 6.35mm
Length 19.3mm
Dimensions 19.3 x 6.35 x 4.57mm
100 In stock for delivery within 5 working day(s) (Global Stock)
Price (ex. GST) Each (In a Tube of 25)
$ 31.25
(exc. GST)
$ 34.37
(inc. GST)
units
Per unit
Per Tube*
25 +
$31.25
$781.25
*price indicative
