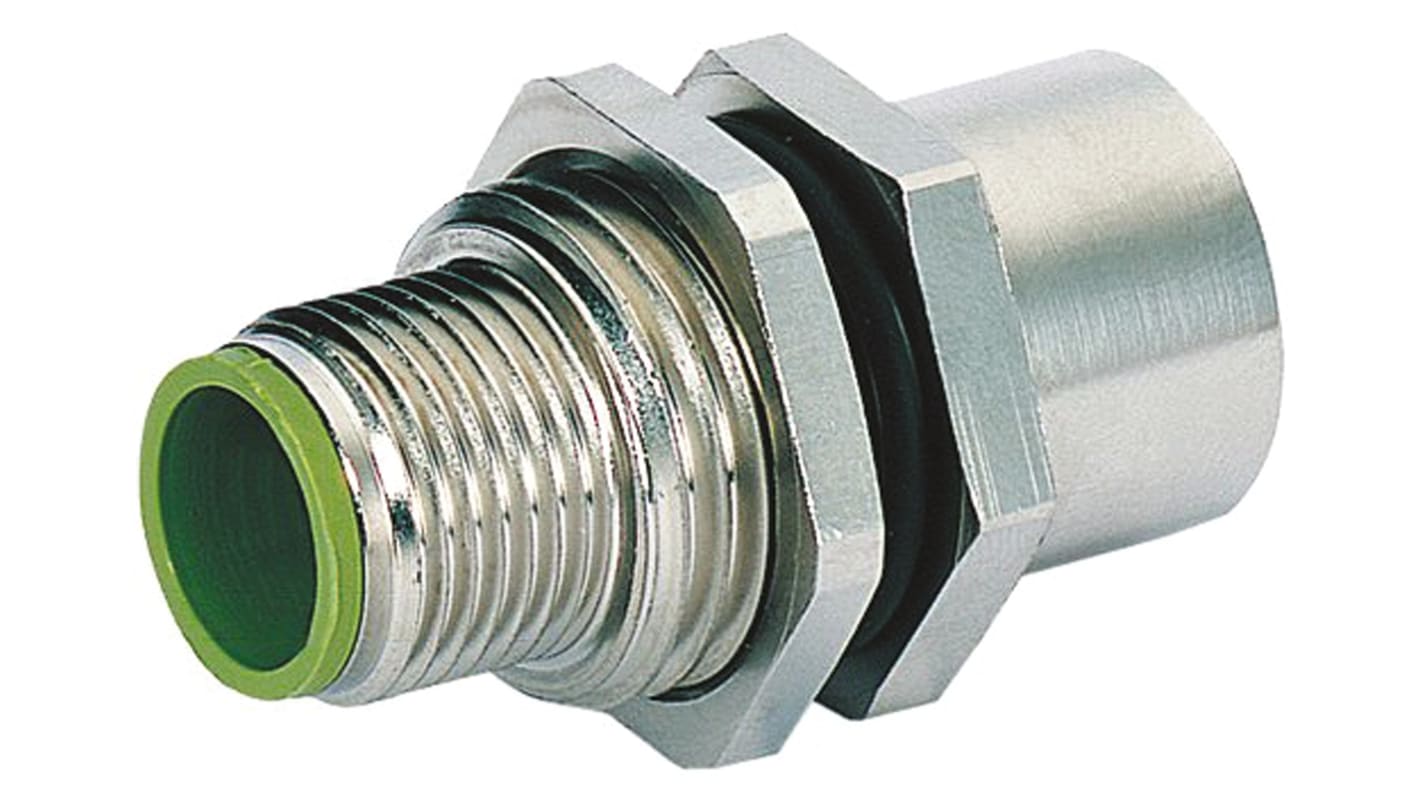

Murrelektronik Circular Connector, 5 Contacts, Bulkhead Mount, M12 Connector, Socket, Male, IP65, IP67, 7000 Series

RS Stock No.:: 827-2799
Mfr. Part No.:: 7000-44111-0000000
Brand:: Murrelektronik Limited

Murrelektronik Circular Connector, 5 Contacts, Bulkhead Mount, M12 Connector, Socket, Male, IP65, IP67, 7000 Series

View this category

1 In AU stock for next working day delivery

25 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$62.05

(exc. GST)

$68.25

(inc. GST)

Units	Per unit
1 - 4	$62.05
5 - 9	$61.29
10 +	$59.06

RS Stock No.:: 827-2799
Mfr. Part No.:: 7000-44111-0000000
Brand:: Murrelektronik Limited

Technical data sheets

M12, Feed Through Connector, male/female reversible, 5W, B coded

Legislation and Compliance

Product Details

M12 Panel Feed Through Connectors

M12 panel feed through connectors from Murr Elektronik, 5 way male to female with A and B coding. The connector contacts are rated to a maximum current capacity of 4A and with an overall operating voltage of a maximum of 60Vac/dc. These durable M12 panel feed through connectors have an IP67 rating when mated, have built in shielding and the mounting thread is M16x1.5mm.

Operating voltage 60 Vac/dc max.
Maximum current 4A
Mounting set M16x1.5mm
IP67 once mated
Operating temperature range -25 to +85 °C

MURR Elekronik Sensor - Actuator Cable Assemblies and Connectors

A comprehensive offering of M8 and M12 connector cable assemblies, distribution units, M8 and M12 connectors, fieldbus connector cable assemblies, couplers and tooling from MURR Elektronik.

Specifications

Attribute	Value
Number of Contacts	5
Mounting Type	Bulkhead Mount
Connector Size	M12
Plug/Socket	Socket
Contact Gender	Male
Termination Method	Screw
IP Rating	IP65, IP67
Current Rating	4.0A
Series	7000
Body Orientation	Straight
Voltage Rating	24.0 V
Coding	B
Mating Type	Plug-In
Housing Material	Metal
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+85°C
