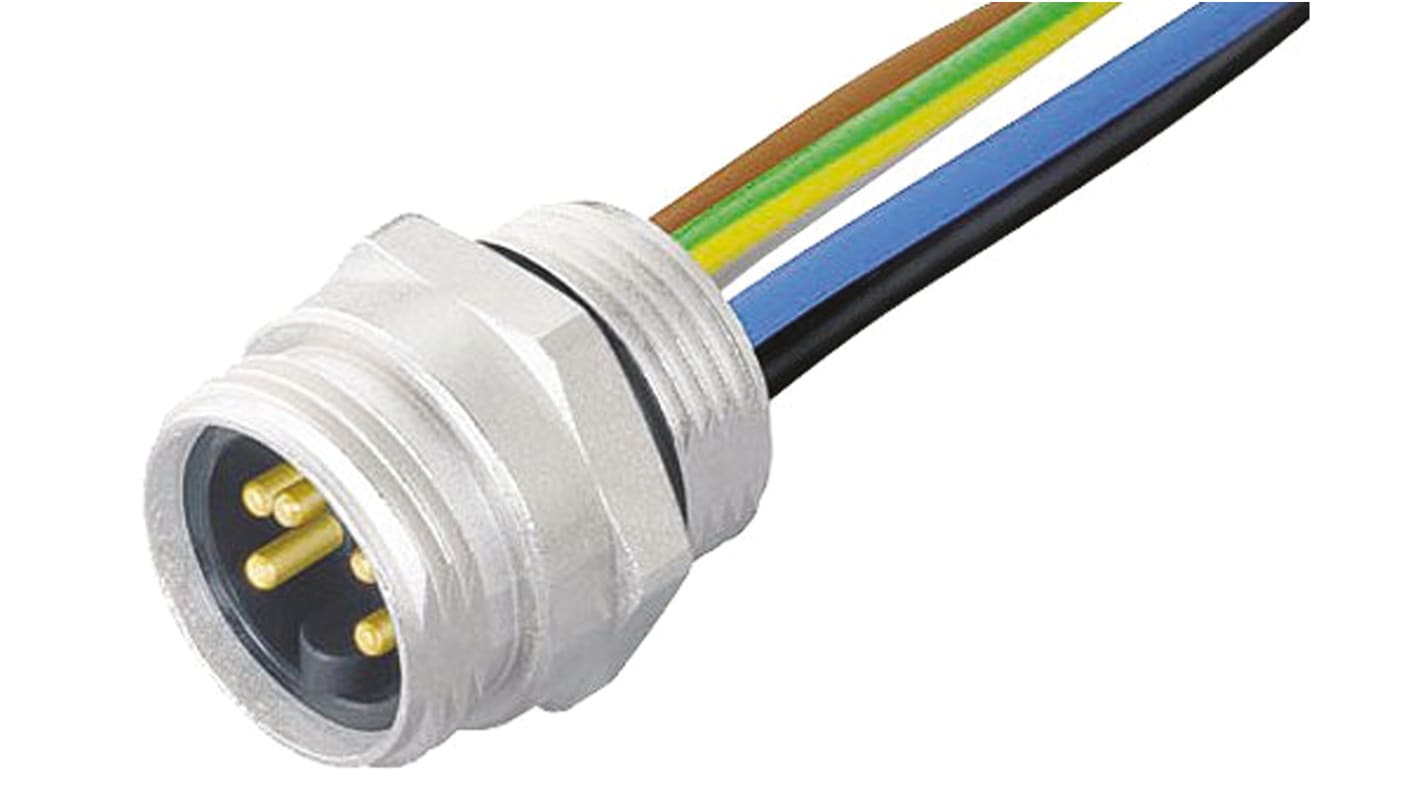

Murrelektronik Circular Connector, 5 Contacts, Bulkhead Mount, 7/8 Connector, Plug, Male, IP65, IP67, 7000 Series

RS Stock No.:: 827-2802
Mfr. Part No.:: 7000-78341-9780050
Brand:: Murrelektronik Limited

Murrelektronik Circular Connector, 5 Contacts, Bulkhead Mount, 7/8 Connector, Plug, Male, IP65, IP67, 7000 Series

View this category

Price (ex. GST) Each

$78.79

(exc. GST)

$86.67

(inc. GST)

13 In AU stock for next working day delivery

8 In Global stock for delivery within 10 working day(s)

Units	Per unit
1 - 4	$78.79
5 - 9	$77.84
10 - 24	$75.03
25 - 49	$72.10
50 +	$70.00

RS Stock No.:: 827-2802
Mfr. Part No.:: 7000-78341-9780050
Brand:: Murrelektronik Limited

Technical data sheets

7/8, male, 5 pole, bulkhead connector

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

7/8 Inch Flange Mount Connectors

7/8 flange mount bulkhead connectors from Murr Elektronik, 5 way male and female variants with 5 attached wires at 0.75 metres in length (brown, white, blue, black, green/yellow) AWG18 with PVC insulation. The connector contacts are rated to a maximum current capacity of 9A and an overall operating voltage of a maximum of 230/400 Vac/dc. These durable 7/8 bulkhead connectors have an IP67 rating when mated and have a PG13.5 mounting set.

Operating voltage 230/400 Vac/dc max.
Maximum current 9A
IP67 once mated
Operating temperature range -25 to +85 °C

Standards

EN60529

MURR Elekronik Sensor - Actuator Cable Assemblies and Connectors

A comprehensive offering of M8 and M12 connector cable assemblies, distribution units, M8 and M12 connectors, fieldbus connector cable assemblies, couplers and tooling from MURR Elektronik.

Specifications

Attribute	Value
Number of Contacts	5
Mounting Type	Bulkhead Mount
Connector Size	7/8
Plug/Socket	Plug
Contact Gender	Male
Termination Method	Screw
IP Rating	IP65, IP67
Current Rating	9.0A
Series	7000
Body Orientation	Straight
Voltage Rating	250 V
Mating Type	Plug-In
Housing Material	Metal
Maximum Operating Temperature	+85°C
Minimum Operating Temperature	-25°C
