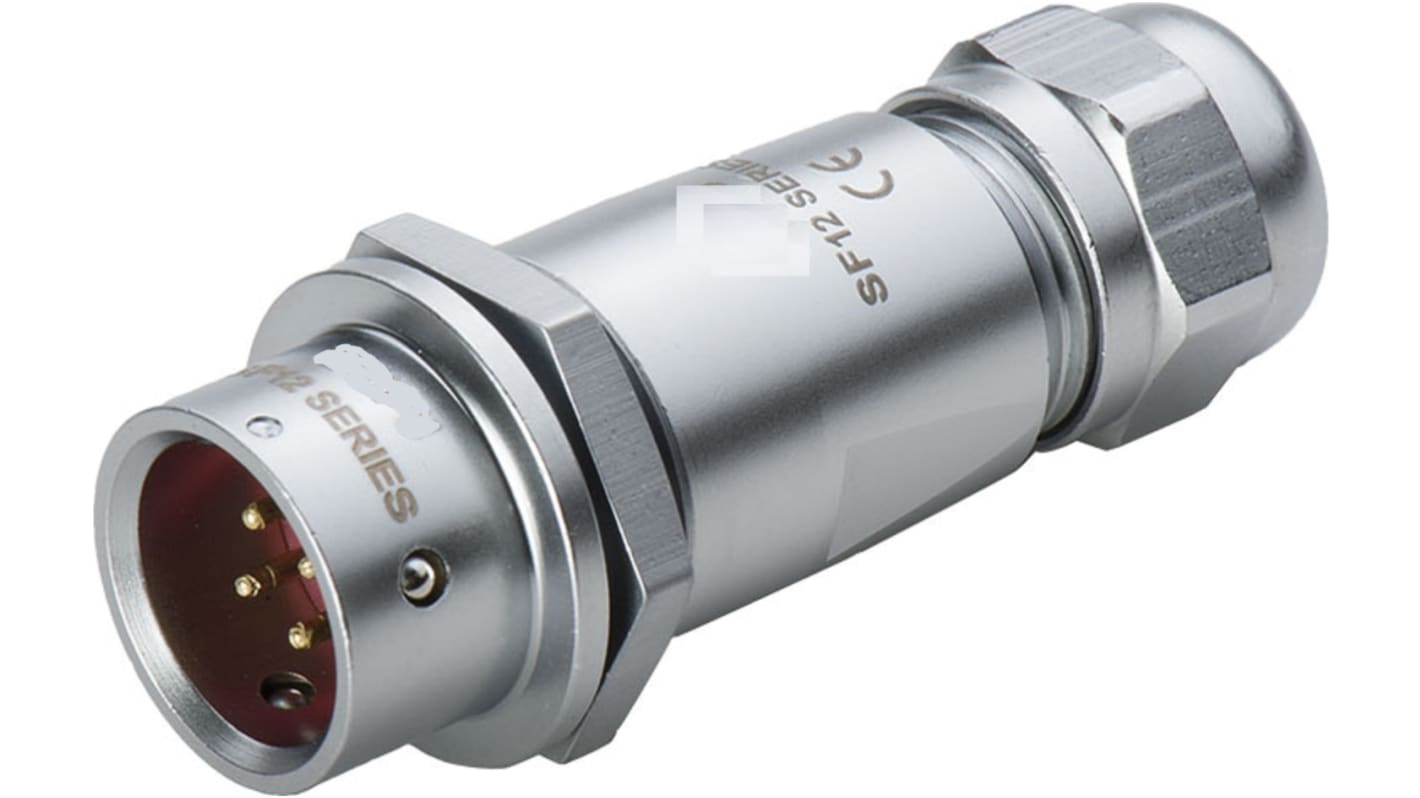

Name: RS PRO Circular Connector, 4 Contacts, Cable Mount, M12 Connector, Plug, Male, IP67
Brand: RS PRO
SKU: 124-6720
Price: 65.98 AUD
Availability: Discontinued

M12 In-Line Push-Pull Cable Socket

From RS Pro, these push-pull sockets are serious contenders for your application. The convenient push-pull connection, makes it perfect in situations where accidental disconnects occur. That coupled with the IP67 rating, makes sure that this industrial connector excels in harsh environments. When choosing a female connector, this version should really be one you consider.

Features & Benefits

• Panel hole cutout diameter: 12 mm
• 2 way, 3 way, 4 way and 5 way all available
• Cable outer diameter: 4 mm to 6.5 mm see part numbers
124-6713 124-6714 124-6715 124-6716
• Cable outer diameter: 5 mm to 8 mm
124-6717 124-6719 124-6720 124-6721
• Solder termination
• Chrome plated brass shell material
• Inline cable mounted

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

RS Pro Push-Pull

Select all	Attribute	Value
	Brand	RS PRO
	Number of Contacts	4
	Mounting Type	Cable Mount
	Connector Size	M12
	Plug/Socket	Plug
	Contact Gender	Male
	Termination Method	Solder
	IP Rating	IP67
	Current Rating	5.0A
	Body Orientation	Straight
	Voltage Rating	200.0 V
	Mating Type	Push-Pull
	Housing Material	Metal
	Pole Format	4P
	Contact Plating	Gold
	Contact Material	Brass
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+85°C

	Select all
	Brand RS PRO
	Number of Contacts 4
	Mounting Type Cable Mount
	Connector Size M12
	Plug/Socket Plug
	Contact Gender Male
	Termination Method Solder
	IP Rating IP67
	Current Rating 5.0A
	Body Orientation Straight
	Voltage Rating 200.0 V
	Mating Type Push-Pull
	Housing Material Metal
	Pole Format 4P
	Contact Plating Gold
	Contact Material Brass
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +85°C

RS PRO Circular Connector, 4 Contacts, Cable Mount, M12 Connector, Plug, Male, IP67

M12 In-Line Push-Pull Cable Socket

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
