Hydrotechnik Hydraulic Test Point, 2103-01-17.00

RS Stock No.:: 257-8886
Mfr. Part No.:: 2103-01-17.00
Manufacturer:: Hydrotechnik

Stock check temporarily unavailable - call for stock availability

Added

Price (ex. GST) Each

$25.30

(exc. GST)

$27.83

(inc. GST)

units	Per unit
1 - 5	$25.30
6 - 11	$24.80
12 +	$24.43

RS Stock No.:: 257-8886
Mfr. Part No.:: 2103-01-17.00
Manufacturer:: Hydrotechnik

RoHS Status: Not Applicable

COO (Country of Origin):: DE

Technical data sheets

Brochure - 2103

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: DE

Product Details

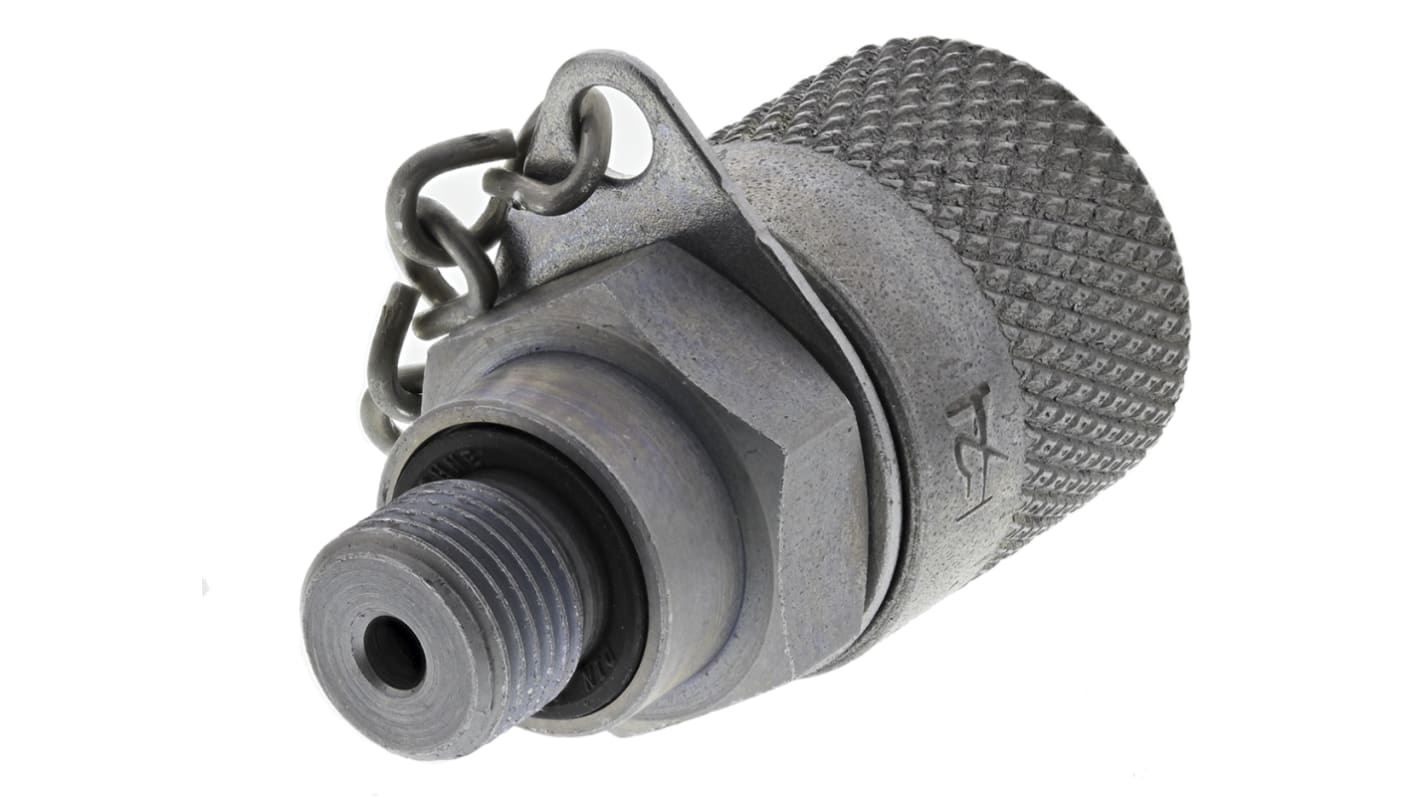

Minimess 1620 Test Point

Enables quick and easy connection to pressure gauges or test hoses
Fitted with metal protective cap and securing chain
Compact design allows use in positions where space limited
Manufactured in steel with zinc plated and yellow chromated surface finish or in stainless steel 1.4104
Seal material is Buna N (steel body), Viton (stainless steel body)
Connecting thread M16 x 2

Test Points - Hydrotechnik

Hydrotechnik Minimess 1620 test points have a unique poppet-style sealing journal to ensure a leak-free lifetime. They provide a metering point for quick, simple and safe measurement of high, low or negative pressure systems. They can be coupled and uncoupled under pressure without system shutdown. Applications include hydraulic/mineral oils and gas monitoring, pressure checking, bleeding cylinders/hydraulic systems and connecting pressure gauge or hose.

Specifications

Attribute	Value
Maximum Operating Pressure	630 bar
Connection A - Thread Size	1/8in
Connection A - Gender	Male
Connection A - Thread Standard	G
Maximum Operating Temperature	+120°C
Minimum Operating Temperature	-30°C
