AAVID THERMALLOY Heatsink, TO-220 Heat Sinks, 20.3°C/W 24 mm 11 mm 22 mm
- RS Stock No.:
- 712-4285
- Mfr. Part No.:
- PF758G
- Brand:
- AAVID THERMALLOY
Subtotal (1 pack of 5 units)*
$41.22
(exc. GST)
$45.34
(inc. GST)
Add 10 units to get free delivery
In Stock
- 670 unit(s) ready to ship from another location
- Plus 4,450 unit(s) shipping from 27 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | $8.244 | $41.22 |
*price indicative
- RS Stock No.:
- 712-4285
- Mfr. Part No.:
- PF758G
- Brand:
- AAVID THERMALLOY
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | AAVID THERMALLOY | |
| For Use With | TO-220 Heat Sinks | |
| Product Type | Heatsink | |
| Length | 11mm | |
| Width | 22 mm | |
| Height | 24mm | |
| Thermal Resistance | 20.3°C/W | |
| Fastening | PCB Through Hole | |
| Diameter | 3.00 mm | |
| Colour | Silver | |
| Finish | Tin Plated | |
| Compatible Package Type | TO-220 | |
| Standards/Approvals | RoHS | |
| Application | Cooling | |
| Material | Aluminium | |
| Select all | ||
|---|---|---|
Brand AAVID THERMALLOY | ||
For Use With TO-220 Heat Sinks | ||
Product Type Heatsink | ||
Length 11mm | ||
Width 22 mm | ||
Height 24mm | ||
Thermal Resistance 20.3°C/W | ||
Fastening PCB Through Hole | ||
Diameter 3.00 mm | ||
Colour Silver | ||
Finish Tin Plated | ||
Compatible Package Type TO-220 | ||
Standards/Approvals RoHS | ||
Application Cooling | ||
Material Aluminium | ||

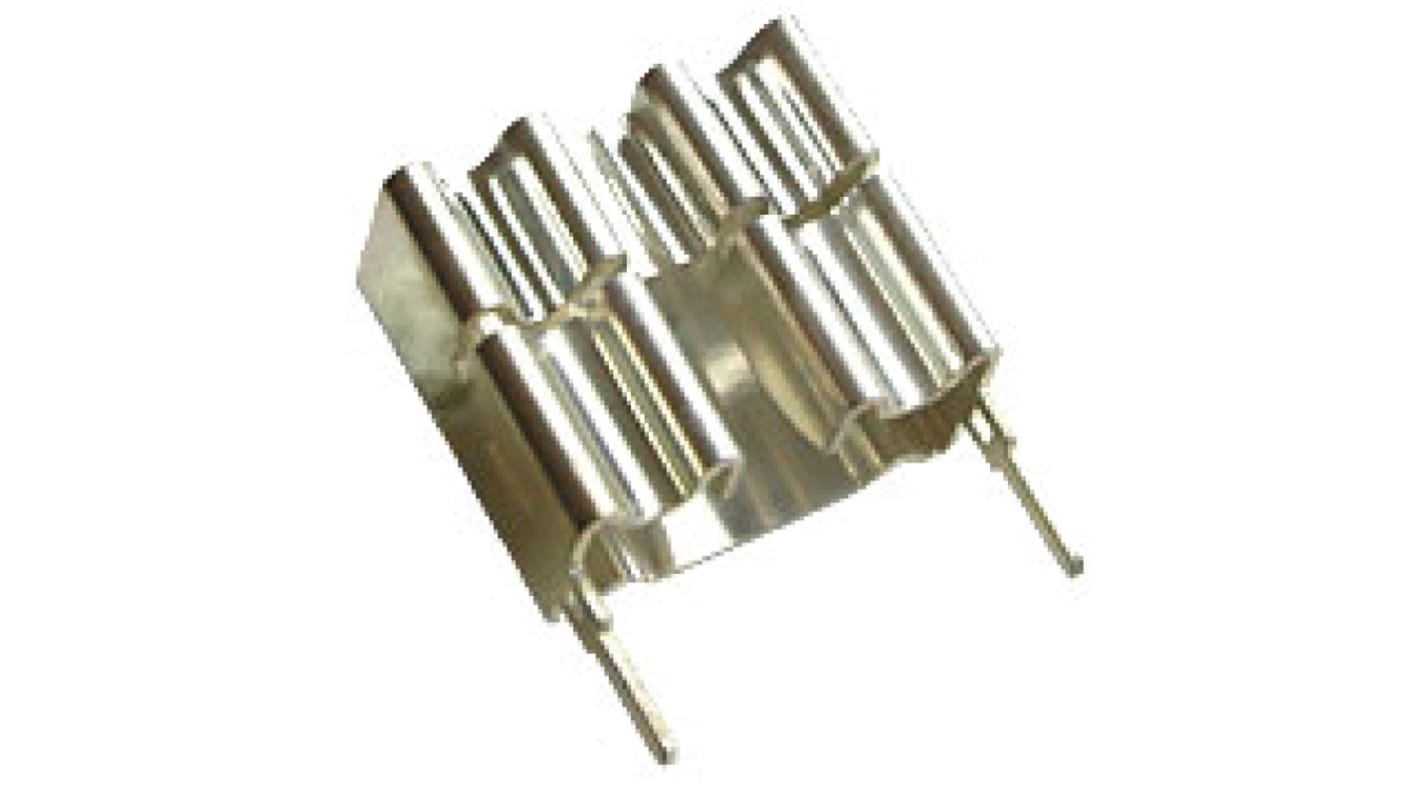

TO220 Slip-on 20.3°C/W with Tabs
Slip-on heatsink is tin plated and has integrated tabs for soldering to the PC board
Locating features provide simple device alignment and spring action holds the device for good thermal contact
