- RS Stock No.:
- 343-9619
- Mfr. Part No.:
- 1590C
- Brand:
- Hammond
10 In Global stock for delivery within 5 working day(s)
Added
Price (ex. GST) Each
$22.58
(exc. GST)
$24.84
(inc. GST)
Units | Per unit |
1 - 49 | $22.58 |
50 - 99 | $22.36 |
100 + | $22.15 |
- RS Stock No.:
- 343-9619
- Mfr. Part No.:
- 1590C
- Brand:
- Hammond
Technical data sheets
Legislation and Compliance
Product Details

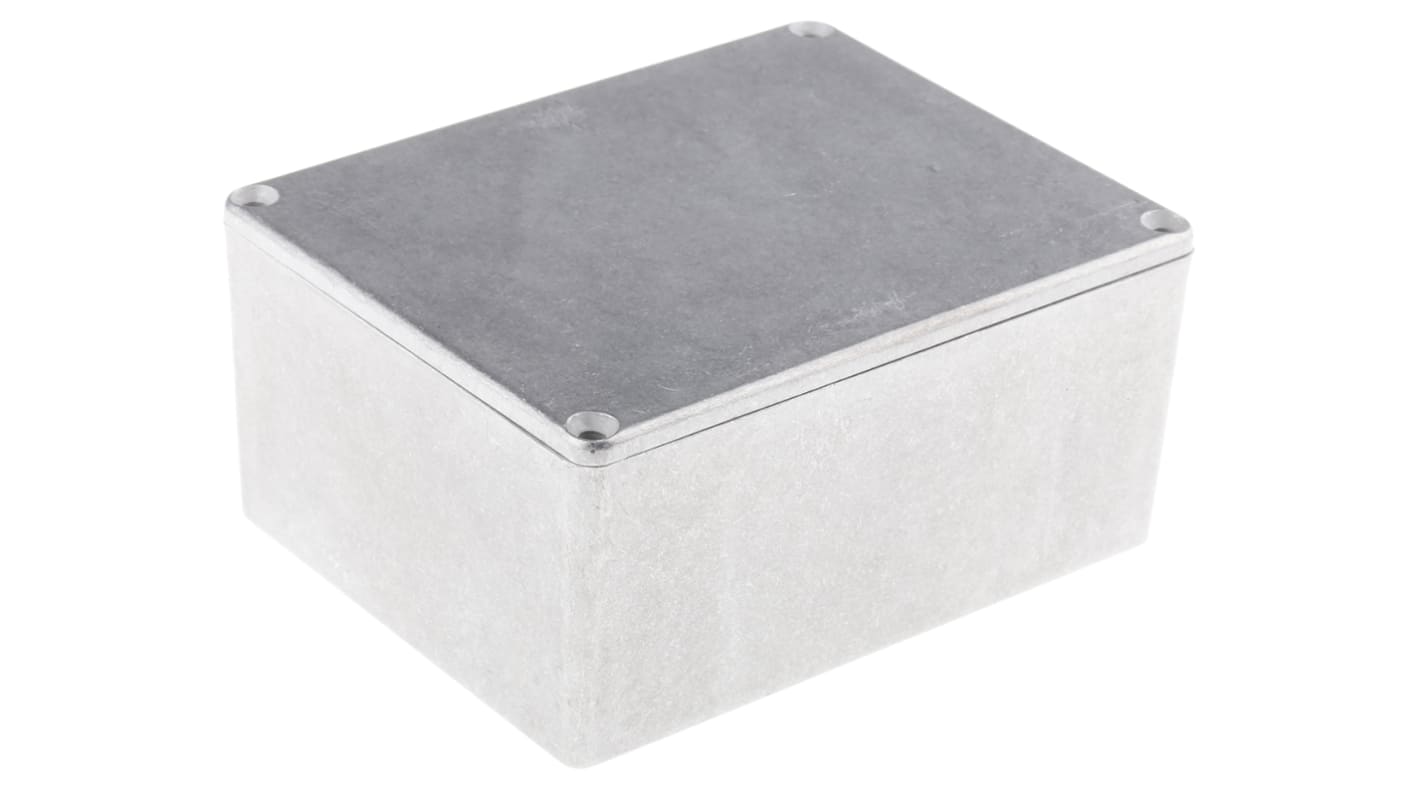

Hammond Enclosure, 119 (L) x 94 (W) x 56mm (H), Die-Cast Aluminium Body, 280g Weight - 1590 Series - 1590C
Need a space-efficient storage solution for electrical components in your workplace? Put this Hammond enclosure on your shopping list. With compact dimensions of 119 (H) x 94 (W) x 56mm (D), it fits neatly into busy setups and is accurately sized for PC boards. Thanks to factory-drilled holes with screws threaded in, you'll find installation is quick and easy, saving time and effort. The unit also comes with a countersunk lid to limit access to sensitive kit and ensure contaminants are securely shut out.
Features & Benefits
Lap-joint construction prevents EMI and RFI to ensure noiseless signal transmission
Light weight of 280g puts minimal pressure on the mounting surface
Die-cast aluminium body holds out against impact and corrosion to offer long-lasting service in harsh environments
Vibra-finished for smooth, snag-free edges to prevent scratches during handling
Light weight of 280g puts minimal pressure on the mounting surface
Die-cast aluminium body holds out against impact and corrosion to offer long-lasting service in harsh environments
Vibra-finished for smooth, snag-free edges to prevent scratches during handling
Applications
Chemical laboratories
Restaurants and canteens
Warehouses and storage units
Restaurants and canteens
Warehouses and storage units
Is this enclosure dust-resistant?
Yes, this unit's IP54 rating shows that it withstands both dust and water splashes from all directions, making it a good choice for demanding conditions.
Specifications
Attribute | Value |
---|---|
Body Material | Die Cast Aluminium |
External Length | 119.5 mm |
External Height | 56.5 mm |
External Width | 94 mm |
External Dimensions | 119.5 x 94 x 56.5mm |
Range | 1590 |
IP Rating | IP54 |
Colour | Natural |
Lid Colour | Natural |
Flanged | No |
Shielded | Yes |
Series | 1590 |
Number Of Knockouts | 0 |
Weight | 278g |
Transparent Door | No |
Explosion Proof | No |
