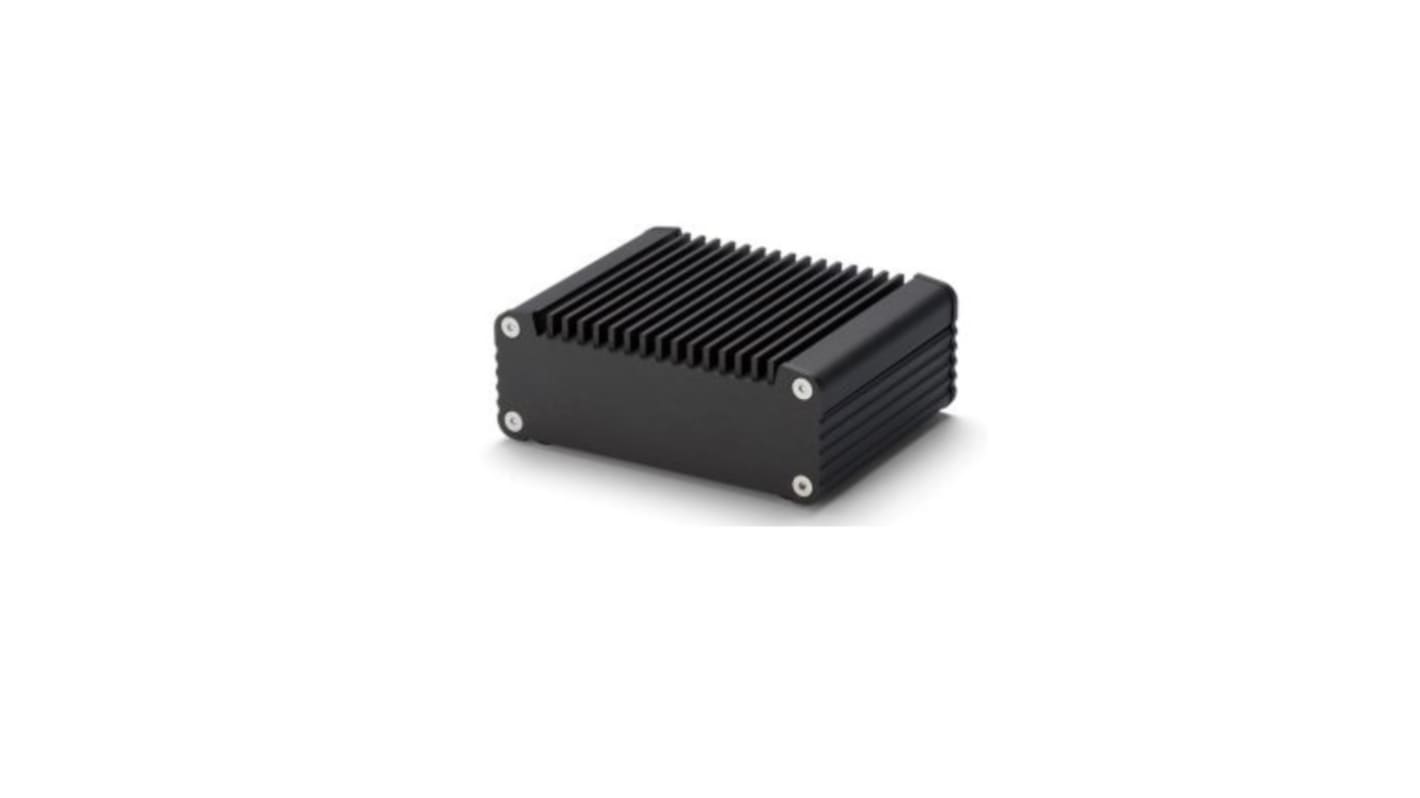

Takachi Electric Industrial EXH Series Aluminium Heat Sink Case, 102 mm x 153 mm x 232 mm

RS Stock No.:: 251-1441
Mfr. Part No.:: EXH23-10-15BB
Brand:: Takachi Electric Industrial

Takachi Electric Industrial EXH Series Aluminium Heat Sink Case, 102 mm x 153 mm x 232 mm

Subtotal (1 unit)*

$216.47

(exc. GST)

$238.12

(inc. GST)

FREE delivery for orders over $80.00 ex GST

Stocked by manufacturer

Ready to ship from 03 December 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	$216.47

*price indicative

RS Stock No.:: 251-1441
Mfr. Part No.:: EXH23-10-15BB
Brand:: Takachi Electric Industrial

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Takachi Electric Industrial
	Body Material	Aluminium
	Product Type	Heat Sink Case
	External Height	102mm
	External Width	232mm
	External Length	153mm
	Hazardous Area Certification	No
	Series	EXH
	Standards/Approvals	RoHS
	Weight	1.51kg

	Select all
	Brand Takachi Electric Industrial
	Body Material Aluminium
	Product Type Heat Sink Case
	External Height 102mm
	External Width 232mm
	External Length 153mm
	Hazardous Area Certification No
	Series EXH
	Standards/Approvals RoHS
	Weight 1.51kg

Datasheet - EXH23-10-15BB

COO (Country of Origin):: JP

The Takachi Electric Industrial EXH series is an aluminium enclosure with a highly efficient heat-sink top cover. Suitable to be used as fan less PC, power amplifier, and power supply box where heat dissipation is required. Wide range, 30 different sizes available.

Each heat-sink fin has a waved surface construction for maximum cooling performance

Heat-sink plates can be customized with our high speed CNC machines

Pin shaped heat-sink fin can be customized for better cooling performance

Selectable in 58 different sizes and 2 different color combinations

Grooves for M3 sliding nut are built into the heat-sink top cover and bottom frame
