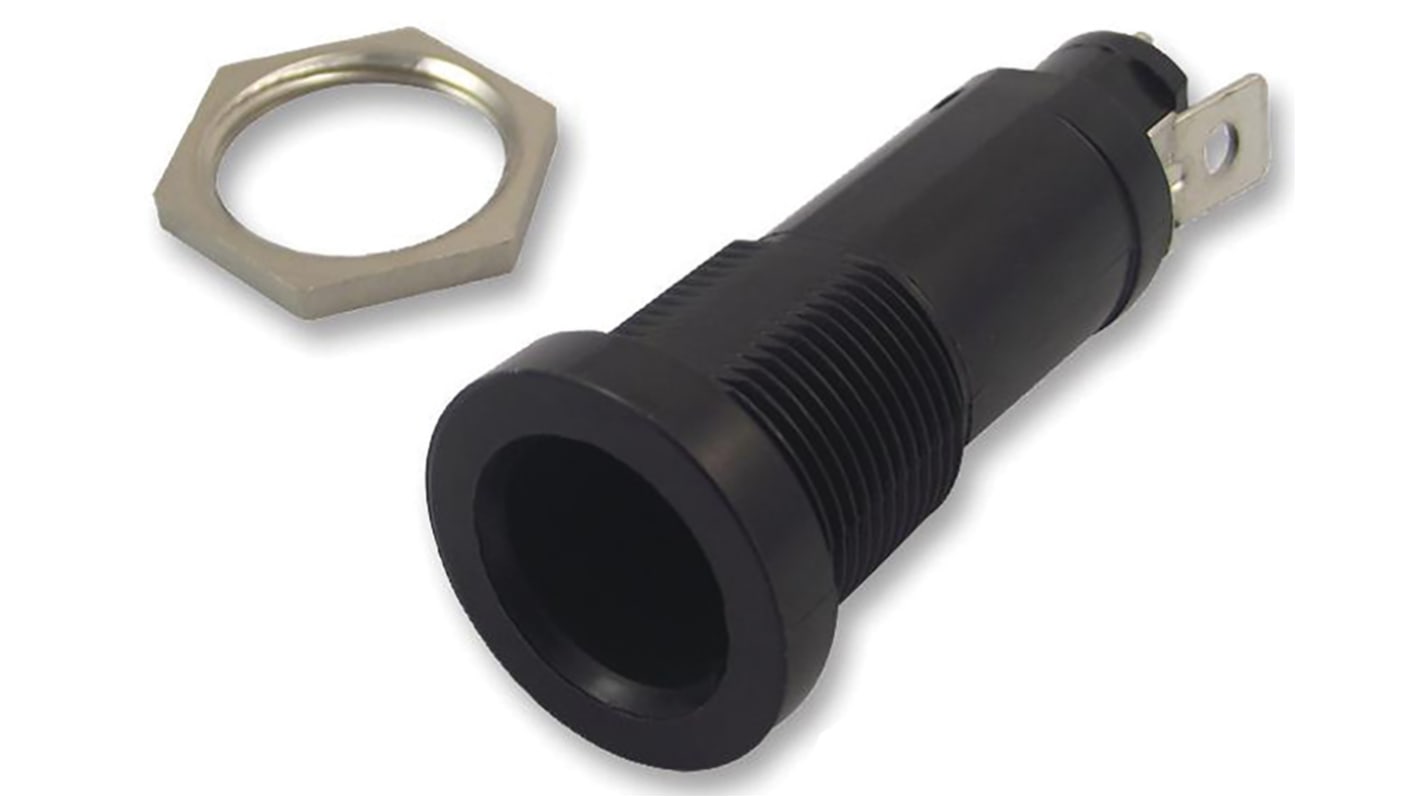

Schurter 10 A Panel Mount Fuse Holder, 1P-Pole for 6.3 x 32 mm, 500 V ac
- RS Stock No.:
- 866-3429
- Distrelec Article No.:
- 133-17-169
- Mfr. Part No.:
- 0031.1631
- Brand:
- Schurter
Subtotal (1 unit)*
$10.18
(exc. GST)
$11.20
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 15,122 unit(s) ready to ship from another location
- Plus 4,831 unit(s) shipping from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $10.18 |
*price indicative
- RS Stock No.:
- 866-3429
- Distrelec Article No.:
- 133-17-169
- Mfr. Part No.:
- 0031.1631
- Brand:
- Schurter
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schurter | |
| Product Type | Panel Mount Fuse Holder | |
| Current Rating | 10 A | |
| Voltage | 500 V ac | |
| Number of Poles | 1 | |
| Body Material | Thermoset, Black | |
| IP Rating | IP40 | |
| Compatible Fuse Size | 6.3 x 32 mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UL 4248-1, IEC 60127-6, CSA 22.2 no. 4248-1, RoHS, VDE Certified, cULus Listed | |
| Protection Category | PC2 | |
| Contact Material | Tin Plated Copper | |
| Series | FEC | |
| Cap Style | Slotted Cap, Finger Grip | |
| Terminal Type | Solder | |
| Select all | ||
|---|---|---|
Brand Schurter | ||
Product Type Panel Mount Fuse Holder | ||
Current Rating 10 A | ||
Voltage 500 V ac | ||
Number of Poles 1 | ||
Body Material Thermoset, Black | ||
IP Rating IP40 | ||
Compatible Fuse Size 6.3 x 32 mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UL 4248-1, IEC 60127-6, CSA 22.2 no. 4248-1, RoHS, VDE Certified, cULus Listed | ||
Protection Category PC2 | ||
Contact Material Tin Plated Copper | ||
Series FEC | ||
Cap Style Slotted Cap, Finger Grip | ||
Terminal Type Solder | ||
The Schurter Fuse holder for 500 VAC are designed for use in industrial environments with application - cap is available slotted or with finger grip.
Equipment with three-phase supply (400 VAC)
Shock-Safe Category of PC2
Degree of Protection of IP40
Products with specific characteristics and requirements such as required in the automotive sector, medical technology or in the aerospace industry
