Eaton 160A Rail Mount Fuse Holder for 00 Fuse, 1P, 690V ac
- RS Stock No.:
- 765-2942
- Mfr. Part No.:
- SD00-D
- Brand:
- Eaton
3 In AU stock for next working day delivery
216 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each
$65.27
(exc. GST)
$71.80
(inc. GST)
Units | Per unit |
|---|---|
| 1 - 24 | $65.27 |
| 25 + | $64.48 |
- RS Stock No.:
- 765-2942
- Mfr. Part No.:
- SD00-D
- Brand:
- Eaton
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

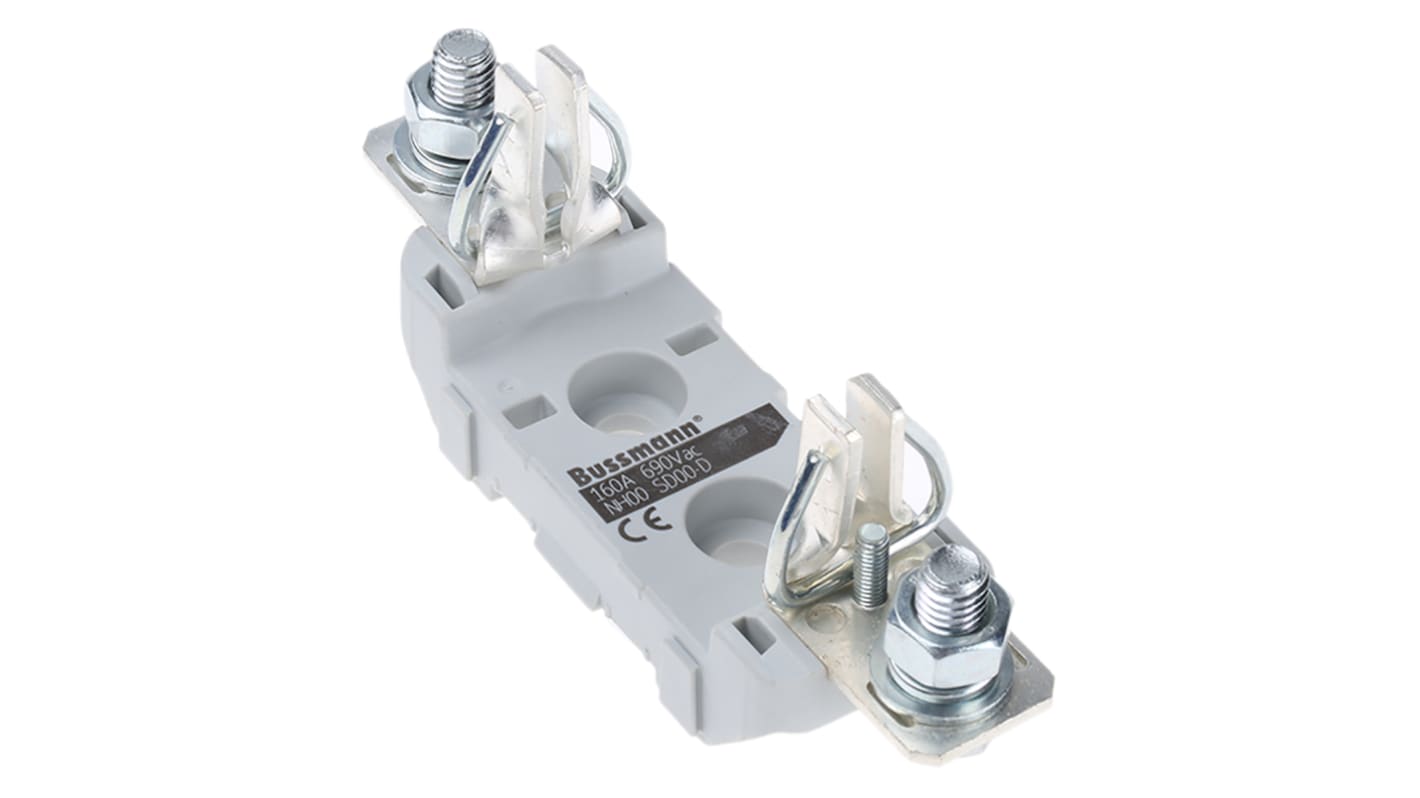

Eaton Rail Mount Fuse Holder, Size 00 Fuse, 160A Current Rating - SD00-D
Use this fuse holder from Eaton to attach your fuse safely to an electrical circuit. It's compatible with 00-sized fuses for ease of assembly. The glass-filled PBT body is resistant to heat and impact, so can be used safely in heavy-duty applications. This device is designed for DIN rail or screw mounting, making it a versatile choice. It has a current rating of 160A for use in high-power applications such as manufacturing machinery.
Features & Benefits
• IP20 rating means it's touch-proof and protected against objects larger than 12mm in size
• Wide operating temperature range of -20°C to +70°C, so safe to use in demanding environments
• Voltage rating of 690V AC for use in high-voltage applications
• Compact dimensions of 120 (L) x 35.5 (W) x 51mm (H) to add minimal bulk to your setup
• Wide operating temperature range of -20°C to +70°C, so safe to use in demanding environments
• Voltage rating of 690V AC for use in high-voltage applications
• Compact dimensions of 120 (L) x 35.5 (W) x 51mm (H) to add minimal bulk to your setup
Is this fuse holder supplied with fixing accessories?
Yes, this fuse holder comes with screws, nuts and washers for ease of installation. These accessories are made of zinc-plated steel for strength and resistance to corrosion, helping to ensure a secure and long-lasting attachment.
Note
Eaton formerly known as Bussmann
Specifications
Attribute | Value |
|---|---|
| Fuse Holder Type | Rail Mount |
| Anti Vibration | Yes |
| Fuse Size | 00 |
| Current Rating | 160A |
| Voltage Rating | 690V ac |
| Number of Poles | 1P |
| Includes Indicator | No |
| Rail Type | DIN 35 mm |
| Case Material | Thermoplastic |
| Series | Eaton Bussman |
| International Protection Rating | IP20 |
| Compatible Fuse Sizes | 00 |
