Schurter 16A Fuse Holder for 5 x 20 mm, 500V ac
- RS Stock No.:
- 260-3025
- Distrelec Article No.:
- 303-25-992
- Mfr. Part No.:
- 3-132-873
- Brand:
- Schurter

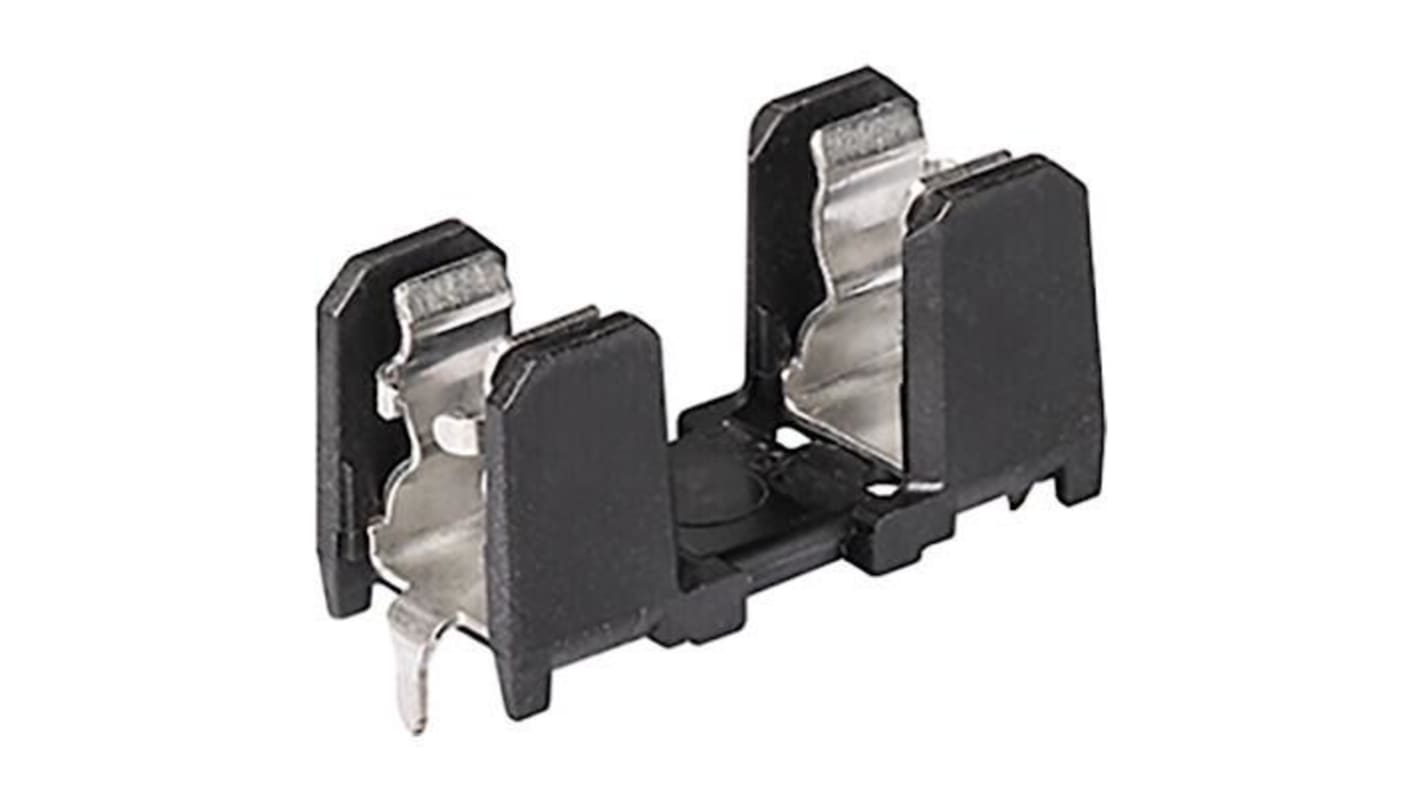

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
$1.51
(exc. GST)
$1.66
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 191 unit(s) ready to ship from another location
- Plus 108 unit(s) shipping from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | $1.51 |
| 10 - 24 | $1.39 |
| 25 - 49 | $1.27 |
| 50 + | $1.19 |
*price indicative
- RS Stock No.:
- 260-3025
- Distrelec Article No.:
- 303-25-992
- Mfr. Part No.:
- 3-132-873
- Brand:
- Schurter
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schurter | |
| Product Type | Fuse Holder | |
| Body Material | Thermoplastic | |
| Compatible Fuse Size | 5 x 20 mm | |
| Pin Spacing | 22.5mm | |
| Standards/Approvals | UKCA, CE, IEC 60335-1, REACH, UL 94V-0, VDE, UL 4248-1, RoHS | |
| Terminal Type | Solder Terminal | |
| Series | OGN | |
| Contact Material | Copper Alloy | |
| Select all | ||
|---|---|---|
Brand Schurter | ||
Product Type Fuse Holder | ||
Body Material Thermoplastic | ||
Compatible Fuse Size 5 x 20 mm | ||
Pin Spacing 22.5mm | ||
Standards/Approvals UKCA, CE, IEC 60335-1, REACH, UL 94V-0, VDE, UL 4248-1, RoHS | ||
Terminal Type Solder Terminal | ||
Series OGN | ||
Contact Material Copper Alloy | ||
The Schurter OGN fuseholder 5x20. It is suitable for fully automated PCB assembling (SMT and THR).
Shock-safe category PC1
Fuse-link 5 x 20mm
Mounting PCB
Attachment screw/rivet/THT/SMT
Terminal solder THT, solder SMT
Rated voltage 500VAC (VDE), 500VAC/VDC (UL/CSA)
Rated current 10/16A (VDE), 16A (UL/CSA)
