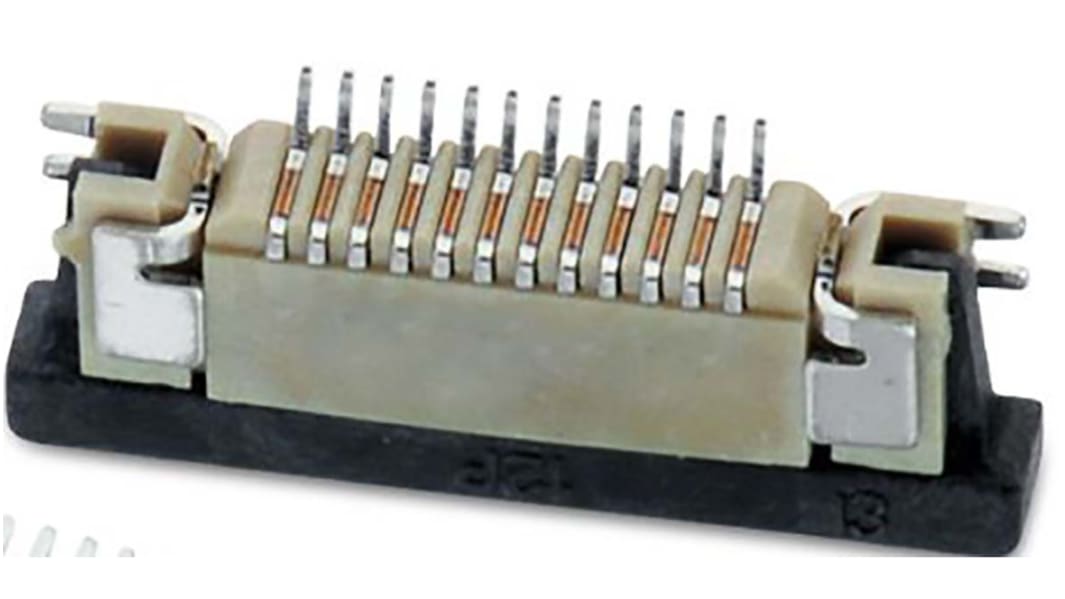

Wurth Elektronik, WR-FPC, 687 0.5 Pitch 22 Way Horizontal FPC Connector
- RS Stock No.:
- 205-3093
- Mfr. Part No.:
- 68712214522
- Brand:
- Wurth Elektronik
On back order for despatch 08/08/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each (On a Reel of 2000)
$1.698
(exc. GST)
$1.868
(inc. GST)
| Units | Per unit | Per Reel* |
| 2000 - 8000 | $1.698 | $3,396.00 |
| 10000 + | $1.528 | $3,056.00 |
| *price indicative | ||
- RS Stock No.:
- 205-3093
- Mfr. Part No.:
- 68712214522
- Brand:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
The Wurth Elektronik WR-FPC series 0.5 mm pitch SMT FPC ZIF connectors with a bottom contact configuration. This FPC connector is made from LCP insulator and stamped tin over nickel plated phosphor bronze contacts.
Pins = 22
Type = horizontal
Length = 17.4mm
Working Voltage = 50VAC
Type = horizontal
Length = 17.4mm
Working Voltage = 50VAC
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 22 |
| Contact Material | Phosphor Bronze |
| Pitch | 0.5 |
| Mounting Type | Surface Mount |
| Body Orientation | Horizontal |
| Series | WR-FPC |
| Series Number | 687 |
