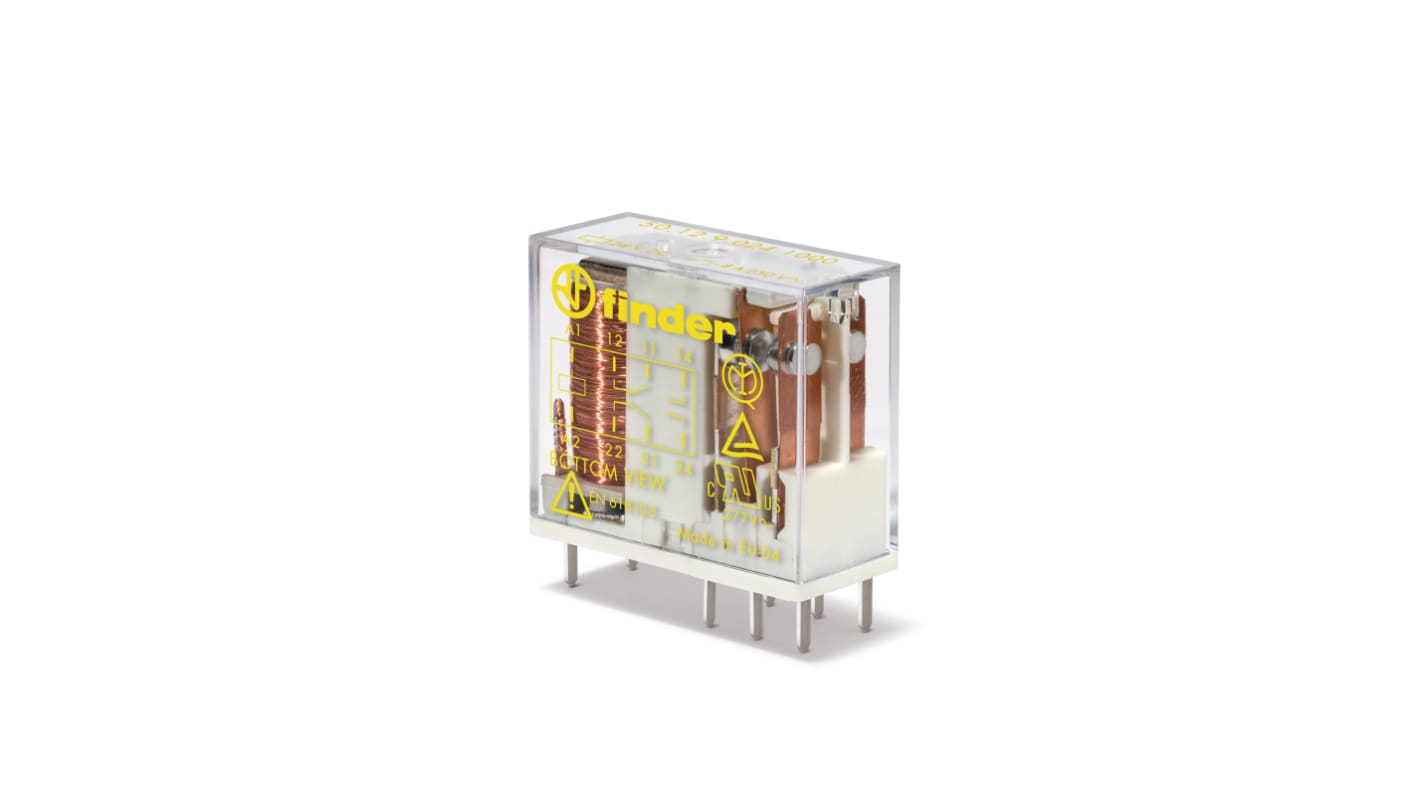

Finder PCB Mount Force Guided Relay, 24V dc Coil Voltage, 2 Pole, DPDT

RS Stock No.:: 733-5108
Mfr. Part No.:: 50.12.9.024.5000
Brand:: Finder

Finder PCB Mount Force Guided Relay, 24V dc Coil Voltage, 2 Pole, DPDT

42 In AU stock for next working day delivery

201 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$39.88

(exc. GST)

$43.87

(inc. GST)

Units	Per unit
1 - 99	$39.88
100 - 499	$39.72
500 +	$39.26

RS Stock No.:: 733-5108
Mfr. Part No.:: 50.12.9.024.5000
Brand:: Finder

Technical data sheets

Datasheet

Legislation and Compliance

Product Details

Finder Safety Relay

The Finder 50series PCB mount non-latching relay forcibly guided contact configuration of DPDT. It is actuated with a 24VDC coil voltage and 15A switching current. This safety relay has a high physical separation between adjacent contacts.

Features and Benefits

8mm creepage and clearance distance
Coil to contact isolation is 6kV (1.2/50μs)
Coil power is 700mW
Coil resistance is 205ohm
Cadmium free contacts
Operating temperature ranging between -40°C and 70°C
Through hole terminal type

Certifications

IMQ
TUV
UL approved

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Coil Voltage	24V dc
Mounting Type	PCB Mount
Contact Configuration	DPDT
Number of Poles	2
Coil Resistance	820 Ω
Switching Current	15A
Coil Power	700mW
Maximum Switching Voltage AC	400V
Terminal Type	Through Hole
Standards Met	EN61810-3 type B
Life	100000 cycles
Maximum Switching Power AC	2 kVA
Minimum Operating Temperature	-40°C
Height	25mm
Contact Material	Gold, Silver Alloy
Length	29mm
Depth	12.4mm
Isolation Coil To Contact	6kV
Maximum Operating Temperature	+70°C
Series	50
