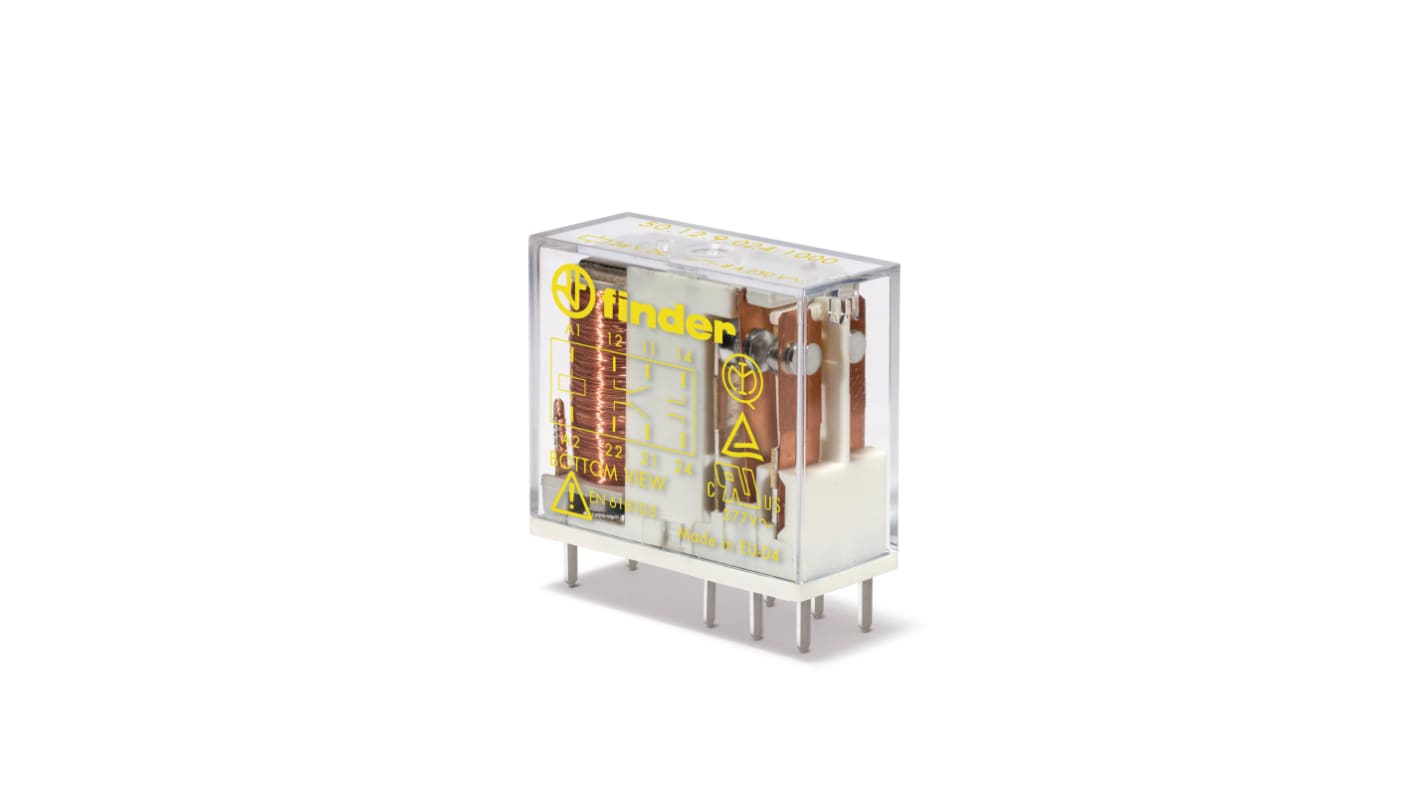

Finder PCB Mount Force Guided Relay, 5V dc Coil Voltage, 2 Pole, DPDT

RS Stock No.:: 102-490
Mfr. Part No.:: 50.12.9.005.1000
Brand:: Finder

Finder PCB Mount Force Guided Relay, 5V dc Coil Voltage, 2 Pole, DPDT

5 In Global stock for delivery within 10 working day(s)

66 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$31.92

(exc. GST)

$35.11

(inc. GST)

Units	Per unit
1 - 14	$31.92
15 - 49	$31.39
50 +	$30.63

RS Stock No.:: 102-490
Mfr. Part No.:: 50.12.9.005.1000
Brand:: Finder

Technical data sheets

Datasheet

Legislation and Compliance

COO (Country of Origin):: IT

Product Details

50 Series - 50.12

Finder 50 series safety relay with forcibly guided contacts according to EN 50205 type B.

High physical separation between adjacent contacts
8mm, 6kV (1.2/50μs) isolation, coil to contact
Flux proof: RT II

Approvals

IMQ, TUV, UL recognised component for Canada and US

Specifications

Attribute	Value
Coil Voltage	5V dc
Mounting Type	PCB Mount
Contact Configuration	DPDT
Number of Poles	2
Coil Resistance	35 Ω
Switching Current	8A
Coil Power	700mW
Maximum Switching Voltage AC	400V
Terminal Type	Through Hole
Standards Met	EN61810-3 type B
Maximum Switching Power AC	2 kVA
Height	25mm
Series	50
Depth	12.4mm
Life	100000 (Electrical) cycles, 10000000 (Mechanical) cycles
Contact Material	Silver Alloy
Maximum Operating Temperature	+70°C
Isolation Coil To Contact	6kV
Length	29mm
Minimum Operating Temperature	-40°C
