- RS Stock No.:
- 173-9092
- Mfr. Part No.:
- SFS6-L-DC24V
- Brand:
- Panasonic
50 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each (In a Box of 50)
$45.997
(exc. GST)
$50.597
(inc. GST)
Units | Per unit | Per Box* |
50 - 200 | $45.997 | $2,299.85 |
250 + | $41.398 | $2,069.90 |
*price indicative |
- RS Stock No.:
- 173-9092
- Mfr. Part No.:
- SFS6-L-DC24V
- Brand:
- Panasonic
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
SFS Series

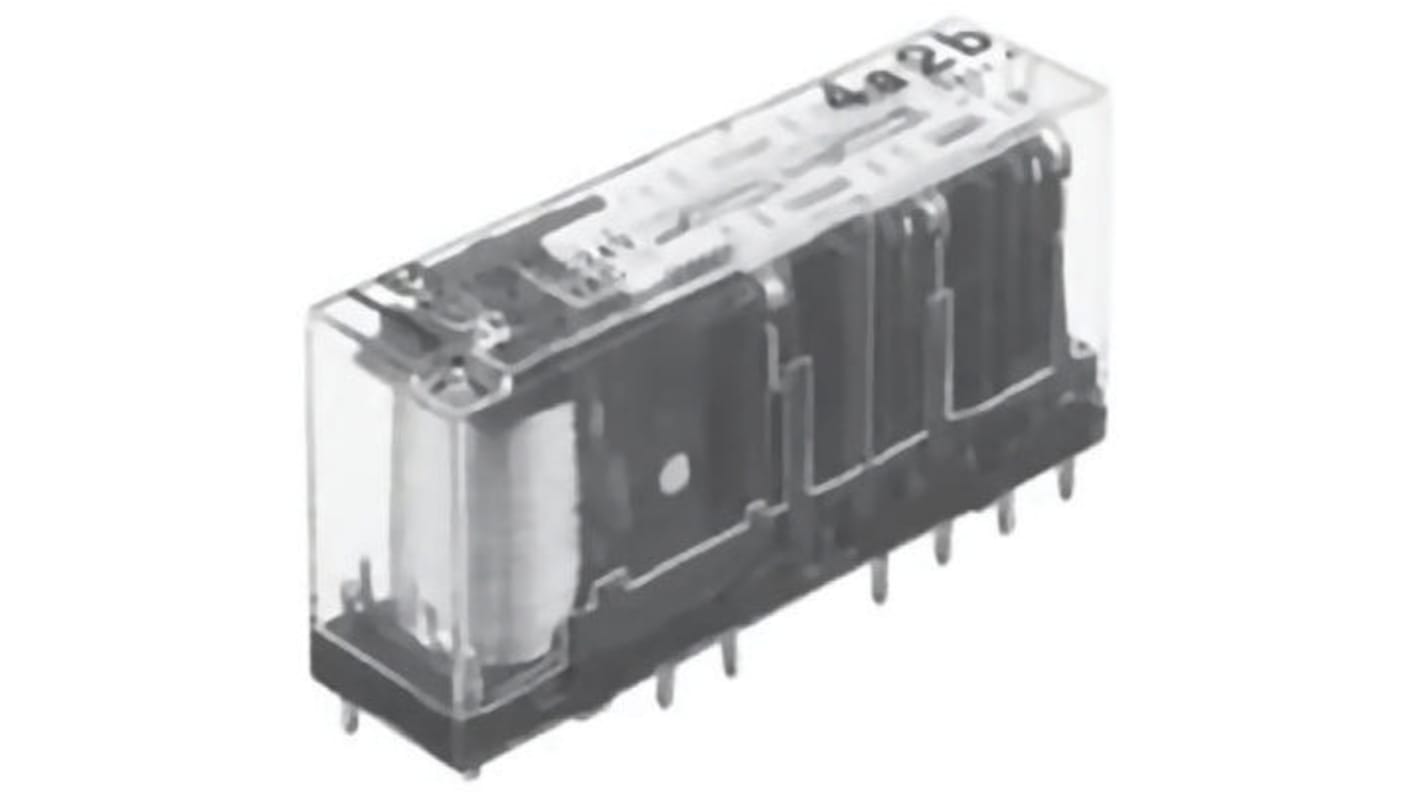

These slim, compact, PCB mount safety relays have forcibly guided contacts and are available with built in LED indication and or diodes. Typical applications for these PCB safety relays include machine tools, robots, safety PLCs, circuits stringent safety standard requirements such as those,in motor vehicle production equipment.
Nominal Switching Capacity 6A at 250Vac
Maximum switching power 180W
Nominal operating power 360mW (4 pole) 500mW (6 pole)
Slim profile
Fast response time, 8 ms or less
High shock resistance, functional: Min 200m/s2
Forcibly guided contact structure
Maximum switching power 180W
Nominal operating power 360mW (4 pole) 500mW (6 pole)
Slim profile
Fast response time, 8 ms or less
High shock resistance, functional: Min 200m/s2
Forcibly guided contact structure
Note
For relay 699-7014, see suitable socket stock nos. 699-7026 and 699-7020,and for relays with contact configuration 3PST-NO; 3PST-NC see suitable socket stock nos.699-7051 and 699-7054
Approvals
TUV
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Coil Voltage | 24V dc |
Mounting Type | PCB Mount |
Contact Configuration | 3PDT |
Number of Poles | 6 |
Coil Resistance | 1.152 kΩ |
Switching Current | 6A |
Maximum Switching Current AC | 6 A |
Coil Power | 500mW |
Maximum Switching Current DC | 6 A |
Maximum Switching Voltage DC | 125V |
Maximum Switching Voltage AC | 250V |
Terminal Type | Through Hole |
Maximum Operating Temperature | +85°C |
Isolation Coil To Contact | 4kV rms |
Length | 50mm |
Life | 100000 (Electrical) cycles, 10000000 (Mechanical) cycles |
Maximum Switching Power AC | 1.5 kVA |
Maximum Switching Power DC | 180 W |
Depth | 13mm |
Contact Material | Gold Plated |
Minimum Operating Temperature | -40°C |
Series | SF |
Height | 24mm |
