Panasonic PCB Mount Force Guided Relay, 24V dc Coil Voltage, 4 Pole, DPDT

RS Stock No.:: 699-7001
Mfr. Part No.:: SFS2-L-DC24V
Brand:: Panasonic

Panasonic PCB Mount Force Guided Relay, 24V dc Coil Voltage, 4 Pole, DPDT

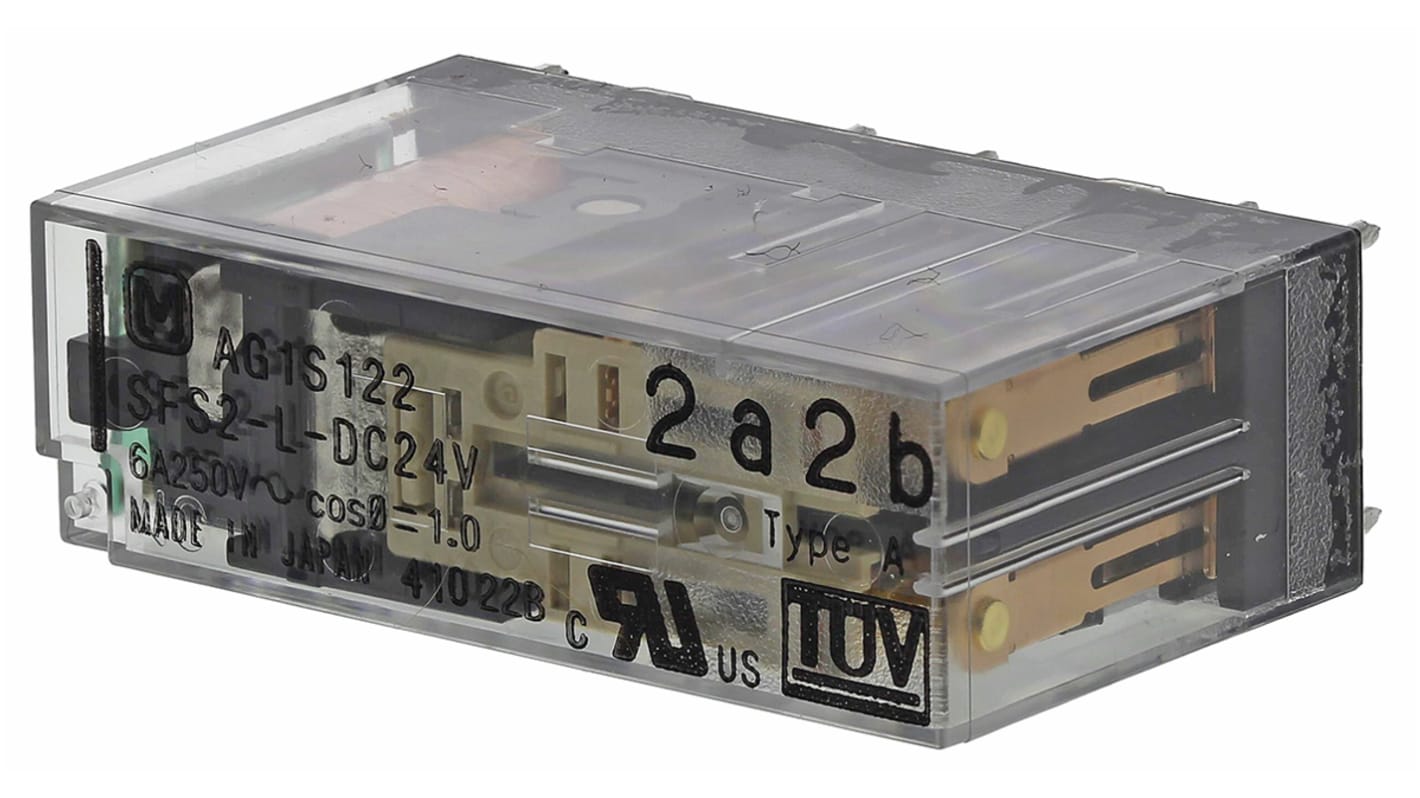

This image is representative of the product range

71 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$33.00

(exc. GST)

$36.30

(inc. GST)

Units	Per unit
1 - 12	$33.00
13 - 24	$32.43
25 +	$31.68

RS Stock No.:: 699-7001
Mfr. Part No.:: SFS2-L-DC24V
Brand:: Panasonic

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: JP

Product Details

SFS Series

These slim, compact, PCB mount safety relays have forcibly guided contacts and are available with built in LED indication and or diodes. Typical applications for these PCB safety relays include machine tools, robots, safety PLCs, circuits stringent safety standard requirements such as those,in motor vehicle production equipment.

Nominal Switching Capacity 6A at 250Vac
Maximum switching power 180W
Nominal operating power 360mW (4 pole) 500mW (6 pole)
Slim profile
Fast response time, 8 ms or less
High shock resistance, functional: Min 200m/s²
Forcibly guided contact structure

Note

For relay 699-7014, see suitable socket stock nos. 699-7026 and 699-7020,and for relays with contact configuration 3PST-NO; 3PST-NC see suitable socket stock nos.699-7051 and 699-7054

Approvals

TUV

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Coil Voltage	24V dc
Mounting Type	PCB Mount
Contact Configuration	DPDT
Number of Poles	4
Coil Resistance	1.6 kΩ
Switching Current	6A
Coil Power	360mW
Maximum Switching Current AC	6 A
Maximum Switching Current DC	6 A
Maximum Switching Voltage DC	125V
Maximum Switching Voltage AC	250V
Terminal Type	Through Hole
Isolation Coil To Contact	4kV rms
Maximum Operating Temperature	+85°C
Maximum Switching Power AC	1.5 kVA
Series	SF
Minimum Operating Temperature	-40°C
Contact Material	Gold Plated
Life	100000 (Electrical) cycles, 10000000 (Mechanical) cycles
Length	40mm
Height	24mm
Depth	13mm
Maximum Switching Power DC	180 W
